| Electrical | |
| Model | DIPX 88/136 |
|---|---|
| Frequency | Low port : 0 – 88 MHz High port : 136 – 1300 MHz |
| Max. Input Power | 35 W |
| Insertion Loss | 0 – 88 MHz : 0.7 dB 136 – 1300 MHz : 0.7 dB |
| Impedance | 50 Ω |
| Isolation | Low to high port : 45 dB |
| Environmental | |
| Operating temperature range | -30 °C to +70 °C |
|---|---|
| Mechanical | |
| Connection(s) | Low : FME High : FME Antenna: FME |
|---|---|
| Historic Brand | Amphenol Procom |
| Dimensions | 50 x 21 x 50 mm / 1.96 x 0.82 x 1.96 in. |
| Weight | Approx. 0.062 kg / 0.14 lb. |
This product doesn’t have any diagrams yet.
| Model | Product No. | Add To Quote |
|---|---|---|

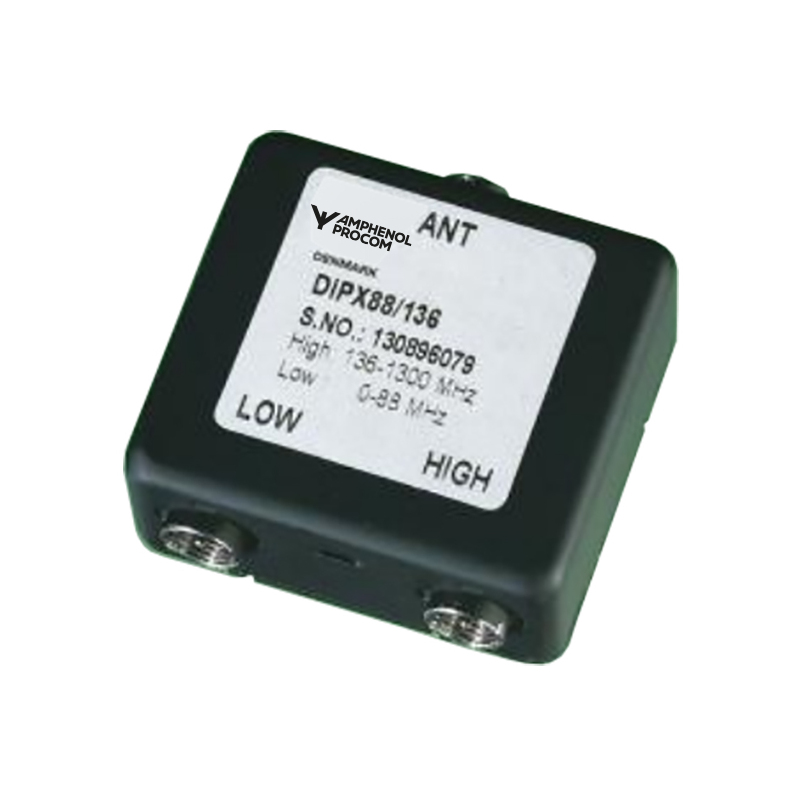

| Diplexer for the 0 – 88 MHz and 136 – 1300 MHz Ranges | 200000659 |
You need to be logged in into your account to view downloadable documents.
The DIPX 88/136 makes it possible to use only one antenna for the operation of two transceivers (one in each range). See the figure below. The antenna must be a dual-frequency antenna, that is, it must be resonant on the actual frequencies in the two bands.
The transceivers may be used independently and will have no degrading influence on each other. Typically, the diplexer is installed next to the transceivers and only one cable is used between the diplexer and the antenna. The diplexer is suitable both for base station and mobile use.
The main tasks of the diplexer are to protect the individual receiver input from being destroyed by the transceiver in the contrary band and to ensure a low-loss path between the transceiver and the antenna which is not loaded by the other branch.
The diplexer can be operated together with any set of transceivers operating within the 0 – 88 MHz and 136 – 1300 MHz frequency bands.
Dual-frequency antennas are available for both mobile and base station applications.
