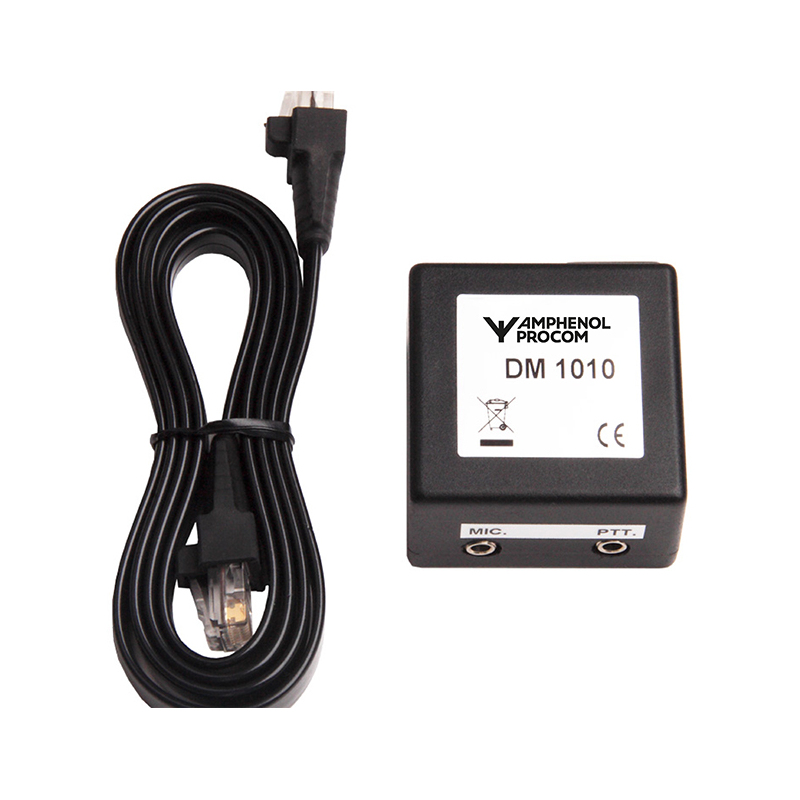

DM 1010

Hands-Free for ICOM Mobile Radios

Find Out More
View Variations
Data Sheet
CE Certification

Other Files

DM 1010

Quickly identify the correct ordering code.

DM 1010
Electrical
Power Supply 8 V DC (from the radio)
Model DM 1010
Type Hands-free microphone with amplifier
Amp. Gain DM 1010 : Nominally 30 dB, Adjustable 10 → 40 dB (±3 dB) at 1 kHz
DM1010-20 dB : Nominally 10 dB, Adjustable 3 → 20 dB (±3 dB) at 1 kHz
Impedance 600 Ω
Frequency Response 0.2 ±17 kHz (Shown in diagram below)
Current Consumption Approx. 2 mA
Environmental
Operating temperature range -30 °C to +70 °C
Storage temperature range -40 °C to +80 °C
Mechanical
Cartridge Type Electret
Connection(s) Modular 8 plug and 3.5 mm jacks
Materials ABS
Cable 1-wire with 2 Modular 8 plugs
Historic Brand Amphenol Procom
Dimensions 30 x 50 x 50 mm /
1.18 x 1.97 x 1.97 in.
  • Amplifier for Hands-free microphone specially designed for ICOM.
  • Fits all ICOM mobile radios with Modular-8 microphone connector.
  • Complete with Modular-8 cable for direct connection to the microphone connector.
  • 2 pcs. 3.5 mm jacks for microphone and external PTT switch.
  • Fits electret condenser hands-free microphones like DM 6600 F or DM 8300 F.
  • Field-adjustable gain.
  • Available in 2 versions:
  • DM 1010, gain 10 – 40 dB, optimized for low-output microphones like DM 8300 F.
  • DM 1010-20 dB, gain 3 – 20 dB, optimized for high-output microphones like DM 6600 F.
  • EMC-protected.
  • Powered from the microphone phantom voltage.

No content found

This product doesn’t have any diagrams yet.

Model Product No. Model Add To Quote

DM 1010

 270000072 DM 1010

DM 1010-20 dB

 270000115 DM 1010-20 dB

Login required

You need to be logged in into your account to view downloadable documents.

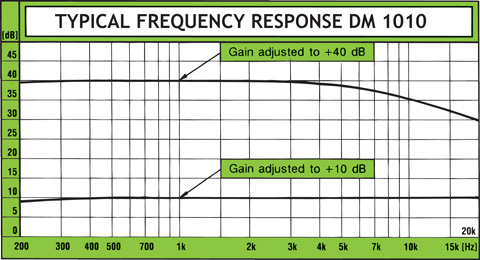

Typical response curve

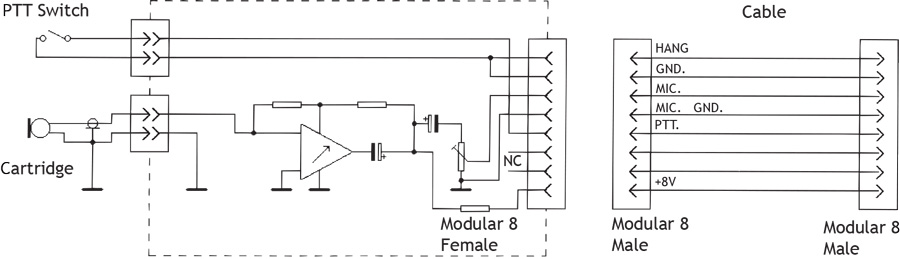

Wire Diagram
