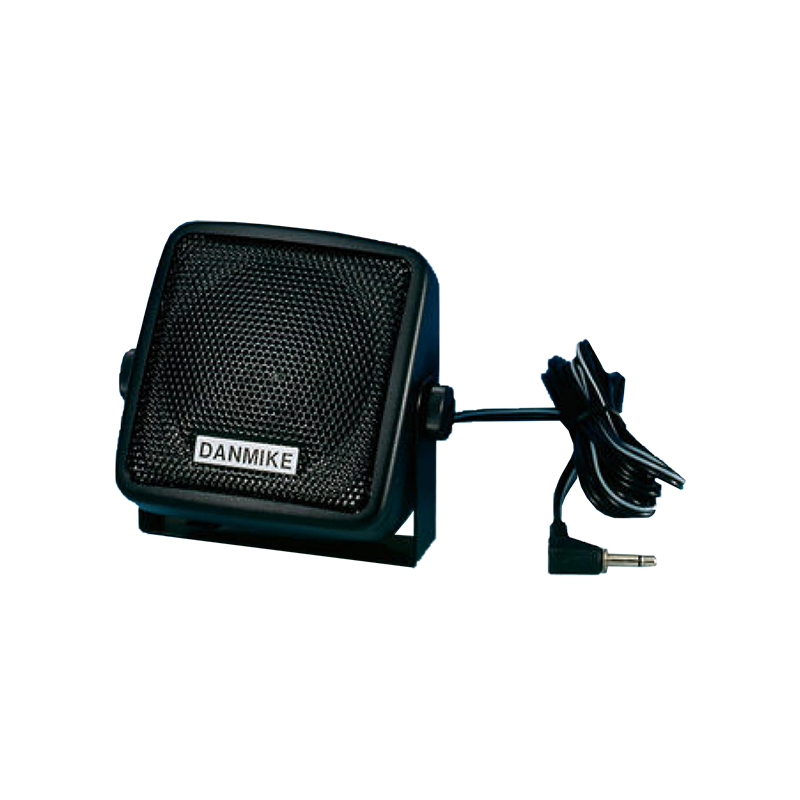

DM 203-08

Loudspeaker for mobile Communications

Find Out More
Data Sheet
CE Certification

Other Files

DM 203-08
Electrical
Model DM 203-08
Max. Input Power 5 W
Impedance 8 Ω
Frequency Response 0.3 ± 5 kHz
Sensitivity 86 dB ±3 dB at 1 kHz rel. 20 μPa (1 W/1 m)
Mechanical
Speaker Size 66 mm dia.
Connection(s) 3.5 mm dia. plug
Cable 2 m 2-wire
Colour Black
Historic Brand Amphenol Procom
Dimensions Cabinet : 82 x 82 x 59 mm / 3.23 x 3.23 x 2.32 in.
Total : 97 x 97 x 68 mm / 3.82 x 3.82 x 2.68 in.
Weight Approx. 0.2 kg / 0.44 lb.
  • 5 W loudspeaker for use with radiotelephones (PMR) or mobile telephones (Cellular).
  • Very small dimensions for discreet mounting.
  • Mylar cone ensures good weather resistance.
  • Well balanced, clear voice reproduction.
  • Ideal for use in hands-free installations.
  • Mounting bracket for 0 – 180° angle adjustment.
  • Supplied with 2 m cable and “jack” connector (3.5 mm dia. plug).

No content found

This product doesn’t have any diagrams yet.

Model Product No. Add To Quote
Loudspeaker for mobile Communications 270000045
