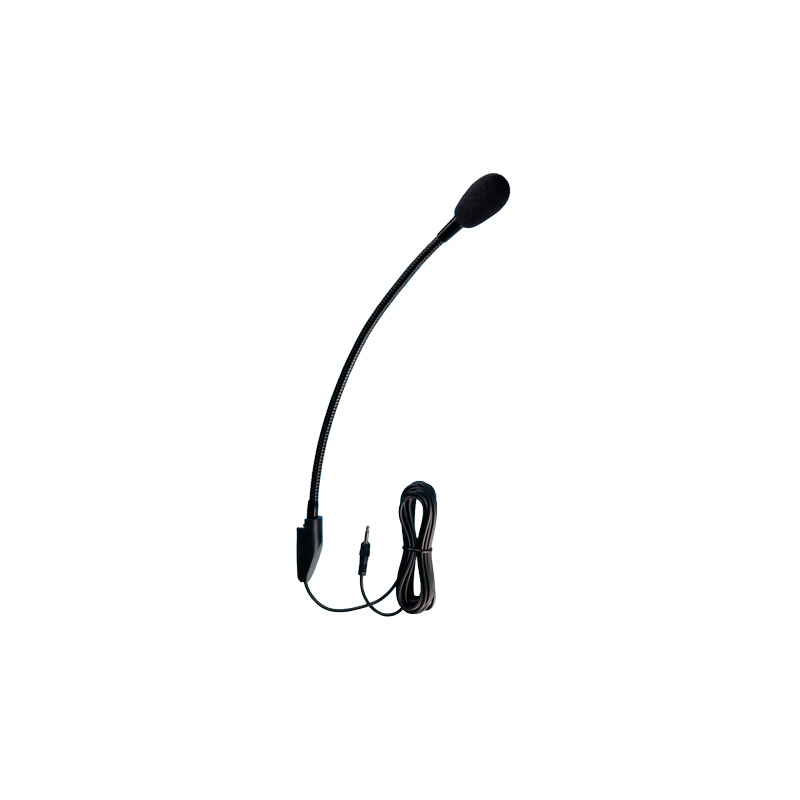

DM 6600 F

Goose neck hands-Free Microphone

Find Out More
View Variations
Data Sheet
CE Certification

Other Files

DM 6600 F

Quickly identify the correct ordering code.

DM 6600 F
Electrical
Power Supply Biased from 9 – 15 V DC power supply via bias resistor.
See diagram
Model DM 6600 F-…
Type Goose neck microphone
Pattern Type Uni-directional
Impedance 1 kΩ
Frequency Response Shown in diagram below
Sensitivity -44 dB ±3 dB at 1 kHz rel. 1 V/Pa
Current Consumption Approx. 0.5 mA
Environmental
Operating temperature range -25 °C to +55 °C
Storage temperature range -40 °C to +55 °C
Mechanical
Cartridge Type Electret
Materials Brass, epoxy laquered.
Impact-proof ABS
Cable 4 m (incl. Goose neck)
1 wire with shield with 3.5 mm plug
Colour Black
Historic Brand Amphenol Procom
Dimensions DM 6600 F: 350 x 14 mm / 13.7 x 0.5 in.
DM 6600 F-500: 560 x 14 mm / 22.0 x 0.5 in.
Weight DM 6600 F: Approx. 100 g / 0.22 lb.
DM 6600 F-500: Approx. 125 g / 0.27 lb.
  • Goose neck microphone for hands-free operation in vehicles.
  • Available with 300 mm or 500 mm goose neck.
  • Mounting on steering column, dash board, window frame etc.
  • Attractive design.
  • Uni-directional pattern.
  • High-sensitivity electret cartridge.
  • Voltage supply 9 – 15 V DC when connected as shown in the diagram below.
  • Supplied with 4 m cable (incl. Goose neck) terminated with a 3.5 mm plug.
  • Wind cap.

No content found

This product doesn’t have any diagrams yet.

Model Product No. Additional Information Add To Quote

DM 6600 F

 270000038 NECK LENGTH: 300 mm

DM 6600 F-500

 270000113 (MOQ: 500 pcs.) NECK LENGTH: 500 mm

Login required

You need to be logged in into your account to view downloadable documents.

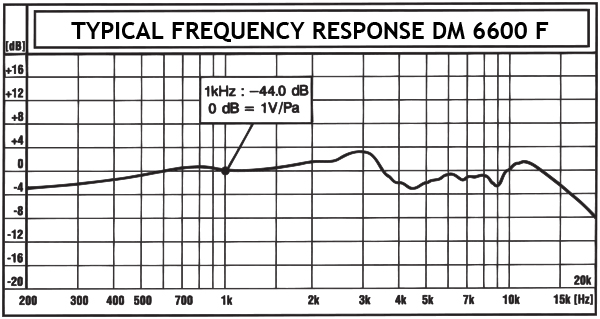

Typical frequency response

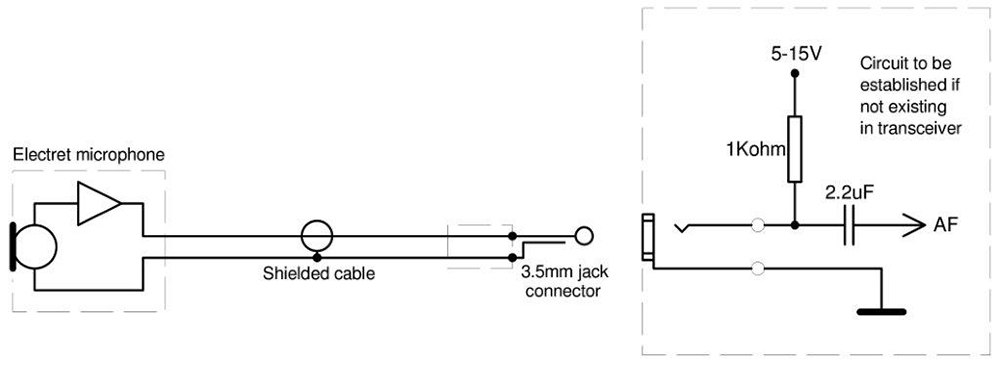

Electrical Diagram

DM 6600 F Electrical diagram
