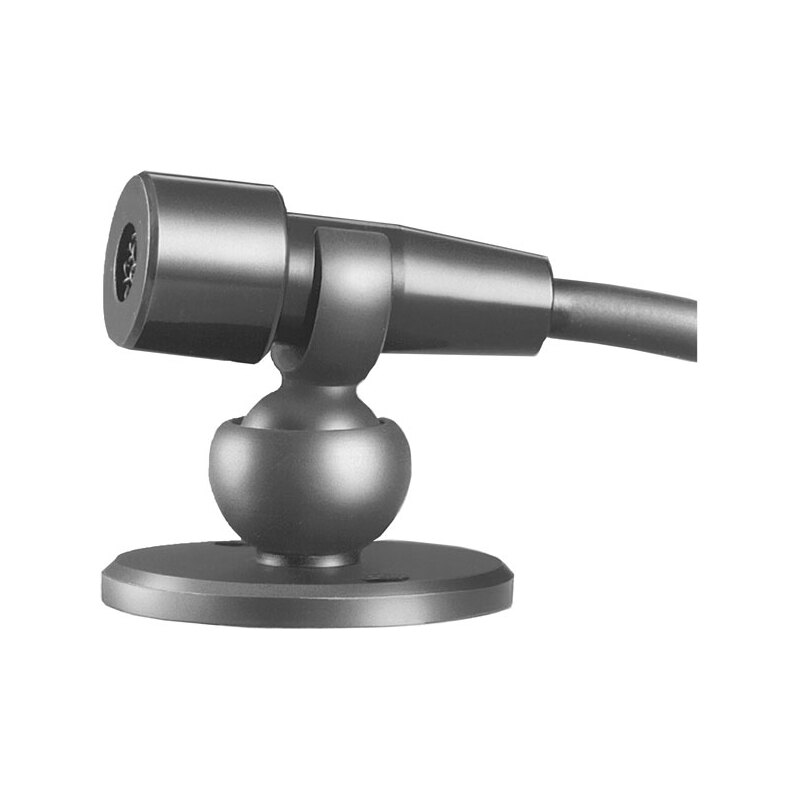

DM 8300 F

Miniature Hands-Free Microphone

Find Out More
Data Sheet
CE Certification

Other Files

DM 8300 F
Electrical
Power Supply Nominal : 2 V. (Max. 10 V) directly on cartridge
Model DM 8300 F
Type Hands-free microphone
Pattern Type Non-directional
Impedance 1 k Ω
Frequency Response Shown in diagram below
Sensitivity -46.6 dB ± 3 dB at 1 kHz rel. 1 V/Pa
Current Consumption Approx. 0.5 mA
Environmental
Operating temperature range -25 °C to +55 °C
Storage temperature range -40 °C to +55 °C
Mechanical
Cartridge Type Electret
Materials Aluminium and ABS
Cable 4 m 1-wire with shield
Historic Brand Amphenol Procom
Dimensions 20 x 20 x 21 mm / 0.79 x 0.79 x 0.83 in.
Weight Approx. 0.06 kg / 0.13 lb.
  • Very small hands-free microphone providing a very discreet installation.
  • Mounting base for fitting on steering column, dash board, roof, sun visors or door edging.
  • Friction-mounted microphone unit for stepless direction adjustment.
  • High-sensitivity built-in electret cartridge with amplifier.
  • Voltage supply 9 – 15 V DC when connected as shown in the diagram below.
  • Supplied with 4 m cable terminated with a 3.5 mm plug.
  • Clip-on for breast pocket or chest band included.

No content found

This product doesn’t have any diagrams yet.

Model Product No. Add To Quote
Miniature Hands-Free Microphone 270000034

Login required

You need to be logged in into your account to view downloadable documents.

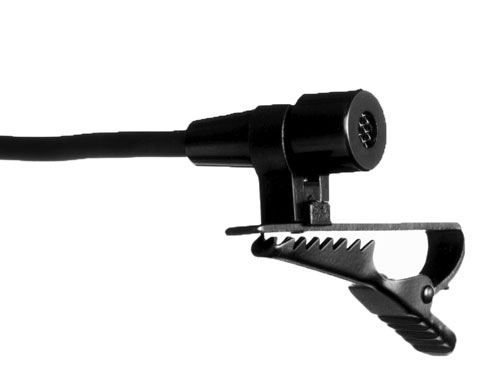

Can alternatively be mounted on breast pocket or chest band by included clip-on.

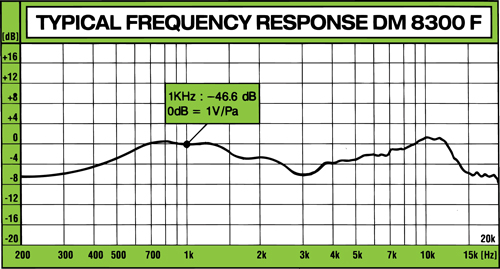

Typical Response curve

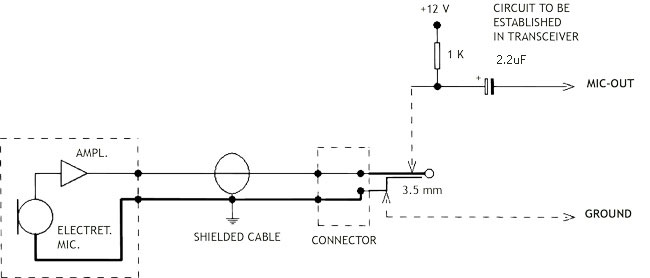

Wire Diagram
