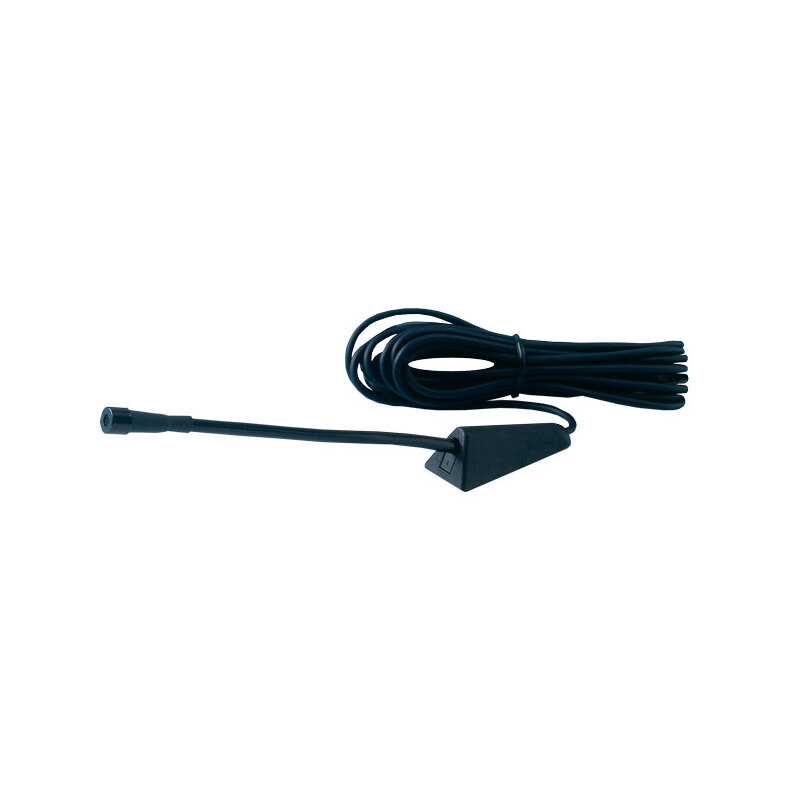

DM 8320

Mini Goose Nech Microphone for Hands-Free Installations

Find Out More
Data Sheet
CE Certification

Other Files

DM 8320
Electrical
Power Supply Nominal : 2 V. (Max. 10 V)
Model DM 8320
Type Goose neck microphone
Pattern Type Non-directional
Impedance 1 k Ω
Frequency Response Shown in diagram below
Sensitivity -46 dB ± 3 dB at 1 kHz rel. 1 V/Pa
Current Consumption Approx. 0.5 mA
Environmental
Operating temperature range -25 °C to +55 °C
Storage temperature range -40 °C to +55 °C
Mechanical
Cartridge Type Electret
Materials Aluminium and ABS
Cable 4 m 1-wire with shield
Historic Brand Amphenol Procom
Dimensions Approx. 180 mm / 7.09 in.
Weight Approx. 0.075 kg / 0.17 lb.
  • Ensures optimum signal to noise ratio.
  • Quick and simple mounting and connection.
  • Also available in grey colour
  • Can be bent over and over again without weakening of the ability of keeping position.
  • High-sensitivity built-in electret cartridge with amplifier.
  • Voltage supply 9 – 15 V DC when connected as shown in the diagram below.
  • Supplied with 4 m cable.

No content found

This product doesn’t have any diagrams yet.

Model Product No. Add To Quote
Mini Goose Nech Microphone for Hands-Free Installations 270000036

Login required

You need to be logged in into your account to view downloadable documents.

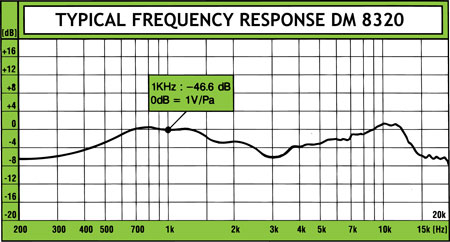

Typical Response curve

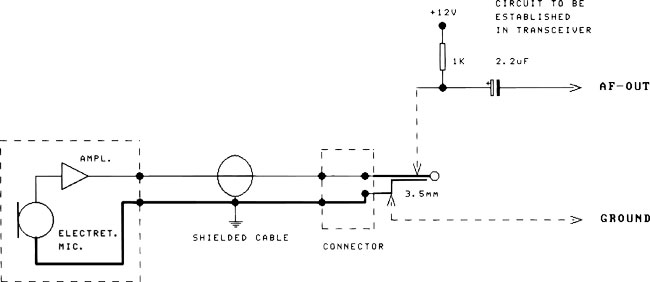

Wire Diagram
