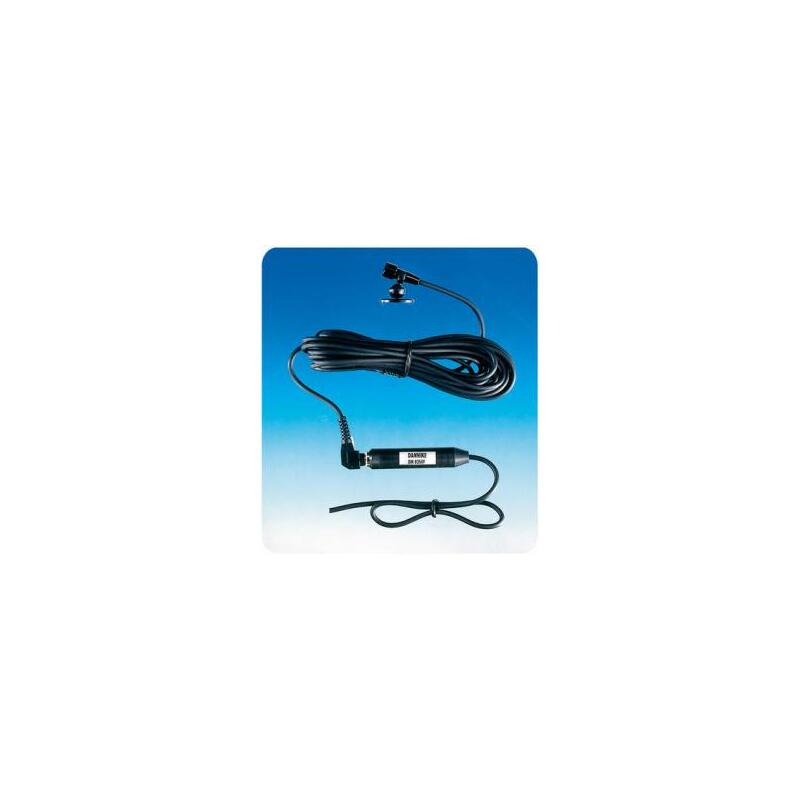

DM 8350 F

General-purpose Hands-Free Microphone with Amplifier

Find Out More
Data Sheet
CE Certification

Other Files

DM 8350 F
Electrical
Power Supply 5 – 15 V DC (To be supplied from radiotelephone or handsfree kit (Phantom-supply via the microphone cable)) Specifications given @ 10 V DC
Model DM 8350 F
Type Hands-free microphone with amplifier
Pattern Type Non-directional
Impedance 1 kΩ
Frequency Response 0.2 ± 7 kHz (Shown in diagram below)
Sensitivity Adjustable -35 ± 5 dB (± 3 dB) at 1 kHz rel. 1 V/Pa
Current Consumption Approx. 2 mA
Environmental
Operating temperature range -30 °C to +70 °C
Storage temperature range -40 °C to +80 °C
Mechanical
Cartridge Type Electret
Connection(s) Microphone part : 3.5 mm dia. plug at cable end
Amplifier part : 3.5 mm dia. jack in housing
Cable end unterminated
Materials Microphone part : ABS
Amplifier part : POM
Cable Microphone part : 4 m 1-wire with shield
Amplifier part : 0.3 m 1-wire with shield
Historic Brand Amphenol Procom
Dimensions Microphone part : 20 x 20 x 21 mm / 0.79 x 0.79 x 0.83 in.
Amplifier part : 12 x 59 mm / 0.47 x 2.32 in.
Weight Microphone part : Approx. 60 g
Amplifier part : Approx. 12 g
  • Hands-Free microphone for use in vehicles.
  • Very small for discreet installation.
  • Mounts easily on door edging, roof, sun visors, steering column or dash board.
  • Gain adjustable over a range of 30 dB gives optimum sensitivity “match” to the majority of all PMR and cellular radiotelephones.
  • Simple direction adjustment.
  • EMC-protected.
  • Power supply from radiotelephone or hands-free kit.
  • Excellent sound quality at a competitive price.

No content found

This product doesn’t have any diagrams yet.

Model Product No. Add To Quote
General-purpose Hands-Free Microphone with Amplifier 270000037

Login required

You need to be logged in into your account to view downloadable documents.

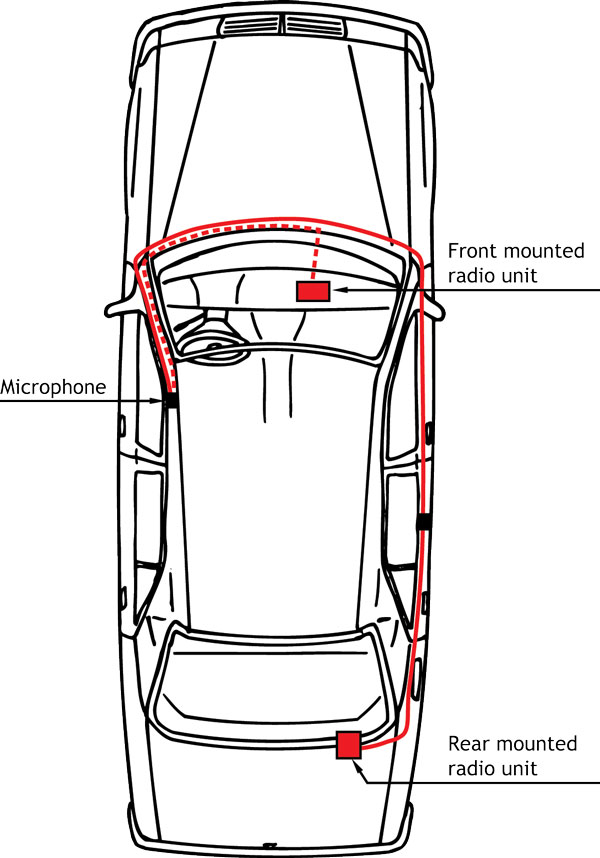

Mounting Details

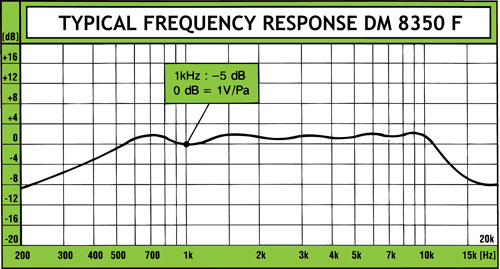

Typical response curve

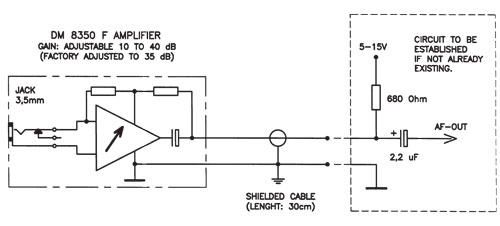

Funktional Diagram

EU and UK Declaration of Conformity

Hereby Amphenol Procom declare that the product type DM 8350 F is in compliance with EU Directive 2014/30/EU and
the UK Electromagnetic Compatibility 2016 (S.I. 2016 No. 1091).
The full text of the Declaration of Conformity is available at:

https://s3.us-west-2.amazonaws.com/catsy.1080/Declaration-of-Conformity-DM8350F.pdf
