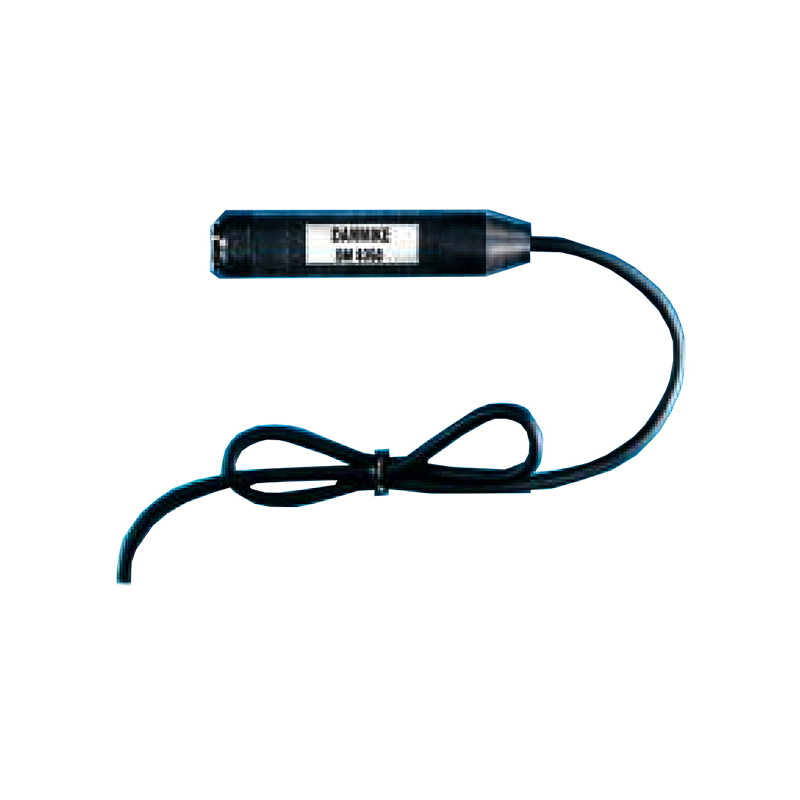

DM 8350

General-purpose Microphone Amplifier with Adjustable Gain

Find Out More
Data Sheet
CE Certification

Other Files

DM 8350
Electrical
Power Supply 5 – 15 V DC (To be supplied from radiotelephone or hands-free kit (Phantomsupply via the microphone cable)
Specifications given @ 10 V DC
Model DM 8350
Type Microphone amplifier
Impedance Input impedance : Approx. 2 kΩ
Output load impedance: Nom. 600 Ω
Frequency Response 0.2 ±20 kHz (See diagram below)
Max. Input 6 mVRMS at max. sensitivity of microphone: -40 dB at 1 kHz rel. 1 V/Pa
Max. Output 600 mVRMS in 600 O (Before clipping occurs)
Current Consumption (Amplifier only) : Approx. 2 mA
Environmental
Operating temperature range -30 °C to +70 °C
Storage temperature range -40 °C to +80 °C
Mechanical
Connection(s) Supplied open-ended
Materials POM
Cable 0.3 m 1-wire with shield
Historic Brand Amphenol Procom
Dimensions 12 x 59 mm / 0.47 x 2.32 in.
  • General-purpose microphone amplifier.
  • Adjustable gain 10 → 40 dB.
  • Provides easy “sensitivity-matching” between low-output microphones and transceivers requiring high input level.
  • Small, cylindrical amplifier housing.
  • Phantom power supply through AF output cable.
  • Supply voltage: 5 – 15 V DC.
  • Nominal AF load impedance: 600 Ω.
  • EMC-protected.

No content found

This product doesn’t have any diagrams yet.

Model Product No. Add To Quote
General-purpose Microphone Amplifier with Adjustable Gain 270000064

Login required

You need to be logged in into your account to view downloadable documents.

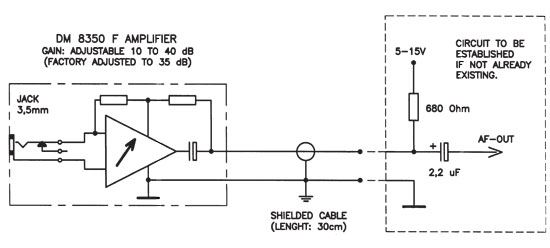

Functional Diagram

Adjustment Screw

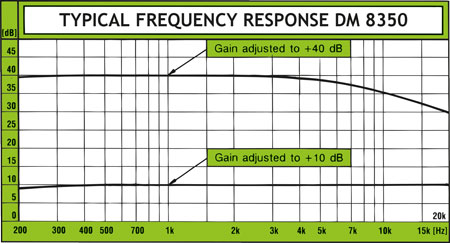

Typical response curve
