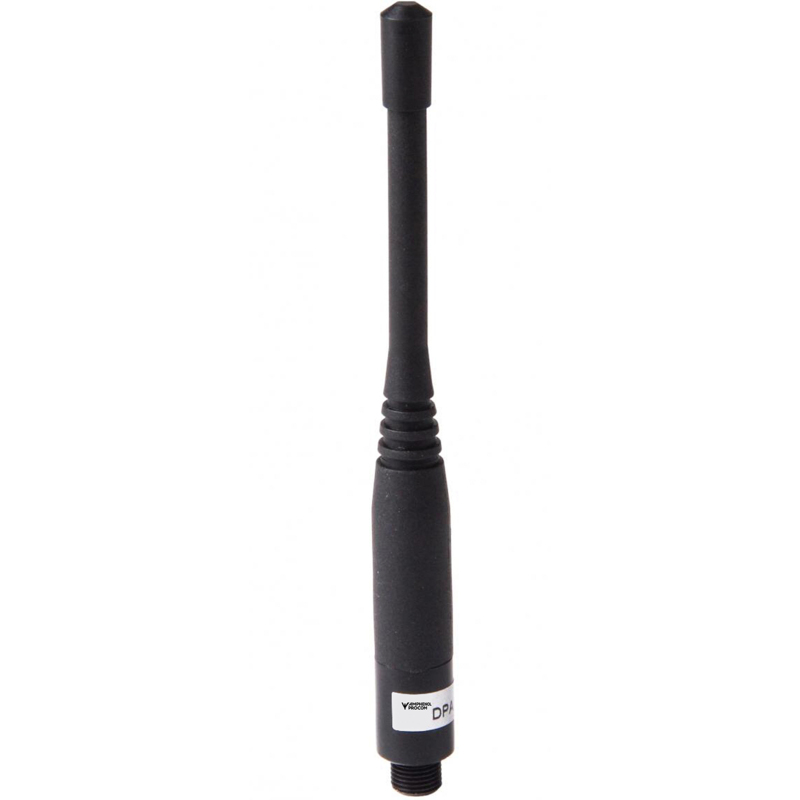

DPA 900/1800-FME

¼ λ Dual-Frequency Antenna for 900 and 1800 MHz bands Designed for portable equipment

Find Out More
Data Sheet
CE Certification

Other Files

DPA 900/1800-FME
Electrical
Model DPA 900/1800-FME
Frequency 880 – 960 MHz
1710 – 1880 MHz
Antenna Type Dual-frequency portable antenna
Max. Input Power 25 W
Polarisation Vertical
Impedance 50 Ω
Gain 0 dB (compared to a ¼ λ portable antenna on the same equpiment)
VSWR 900 MHz : < 1.5:1 @ f. res.
1800 MHz : < 2.2:1 @ f. res.
Bandwidth 880 – 960 MHz :
80 MHz @ VSWR @ 2.0:1
1710 – 1880 MHz :
300 MHz @ VSWR @ 2.5:1
Mechanical
Connection(s) FME(f)
Materials Thermoplastic rubber
Cu-nite Brass
Colour Black
Historic Brand Amphenol Procom
Height Approx. 130 mm / 5.12 in.
Weight Approx. 0.02 kg / 0.04 lb.
  • This antenna makes it possible to operate on 900 and
    1800 MHz at the same time on one antenna.
  • Flexible antenna element built into an elastic shroud of hard-wearing
    and weather- and shockproof plastics.
  • Ready-tuned and unity gain on both bands.
  • Provided with FME (female) connector.
  • The antenna is delivered factory-tuned. Other frequencies on request.

No content found

This product doesn’t have any diagrams yet.

Model Product No. Add To Quote
¼ λ Dual-Frequency Antenna for 900 and 1800 MHz bands Designed for portable equipment 140000453

Login required

You need to be logged in into your account to view downloadable documents.

Recommended BFME-Connectors

BFME bnc tnc n muhf ebnc etnc emuhf

(To be ordered separately)
