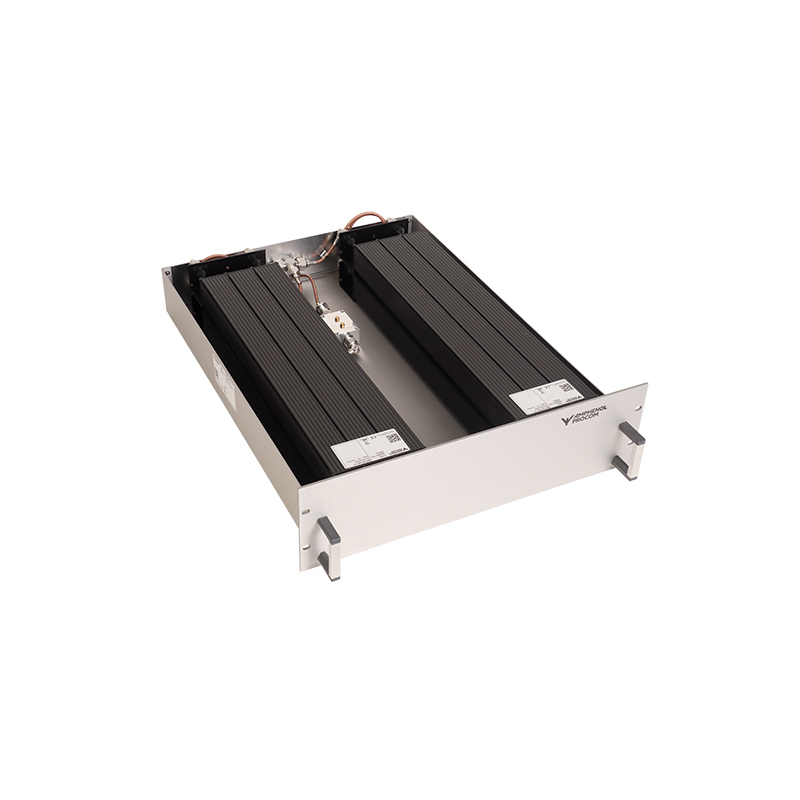

DPBP 2/66-150

High power VHF Duplex Band-Pass Filter incl. Low Pass Filter, for PMR/DMR and Telemetry networks

Find Out More
View Variations
Data Sheet
CE Certification

Other Files

DPBP 2/66-150

Quickly identify the correct ordering code.

DPBP 2/66-150
Electrical
Model DPBP 2/66-150 LL/1-…-1/LPF
Frequency Rx: 139.5 – 144 MHz
Tx: 148 – 155 MHz
(depends on model)
Max. Input Power 150 W
Spacing Tx-Rx 7.5 MHz or 10 MHz
Insertion Loss ≤ 1.7 dB
Impedance 50 Ω
Isolation Rx – Tx > 70 dB
Isolation Tx – Rx > 70 dB
Reject Attenuation > 50 dB @ 3th. & 5th. harmonic
VSWR < 1.3:1 (>18 dB) (Return loss)
Bandwidth (Tx and Rx) 1 MHz
Environmental
Operating temperature range -30 °C to +60 °C
Mechanical
Connection(s) N(f) on all ports
Historic Brand Amphenol Procom
Dimensions 19″ x 3 HU x 600 mm
(482.6 x 133.4 x 600 mm) /
19 x 5.25 x 23.62 in.
Weight Approx. 14 kg / 30.86 lb.
  • The DPBP 2/66-150 LL/1-…-1/LPF is a 2 x 6 resonator high quality Duplex Band Pass filter designed to combine special custom required Tx and Rx bands to one common antenna.
  • The high performance filter design secures a low Insertion Loss and an improved isolation between the specified Tx and the Rx band.
  • The DPBP 2/66-150 LL/1-…-1/LPF can accomodate a continious power of max. 150 W.
  • The DPBP filter includes a low pass filter for highly attenuating the unwanted 3th. & 5th. harmonics occuring from radio system and the DPBP itselves.
  • The DPBP 2/66-150 LL/1-…-1/LPF filter can be fitted into a 19” mounting tray, 3 HU in height, 600 mm in depth.
  • For other frequencies in the VHF band please contact Amphenol Procom for availability

No content found

This product doesn’t have any diagrams yet.

Model Product No. Frequency Add To Quote

DPBP 2/66-150 LL/1-7.5-1/LPF

 200002895 Rx: 139.5 – 140.5 MHz / Tx: 148 – 149 MHz

DPBP 2/66-150 LL/1-10-1/LPF

 200002833 Rx: 143 – 144 MHz / Tx: 154 – 155 MHz

Login required

You need to be logged in into your account to view downloadable documents.

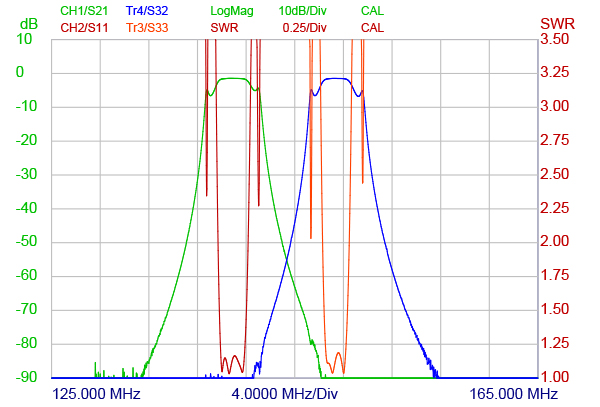

Typical response curves for 7.5 MHz

DPBP 2!66 150 LL!1 7.5 1!LPF curve

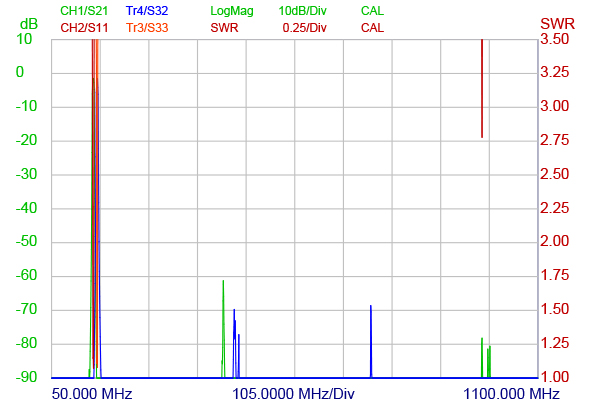

Typical Out of band curves for 7.5 MHz

DPBP 2!66 150 LL!1 7.5 1!LPF Outcurve

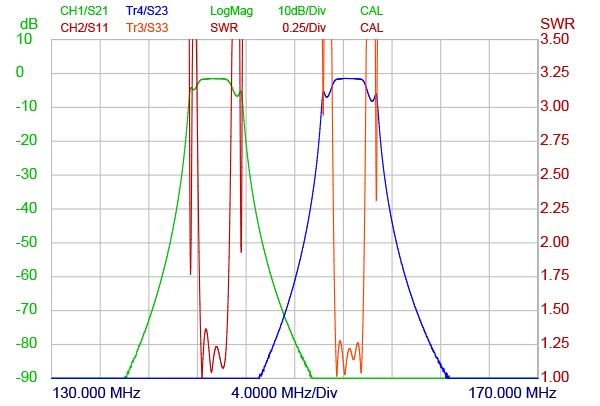

Typical response curves for 10 MHz

DPBP 2!66 150 LL!1 10 1!LPF curve

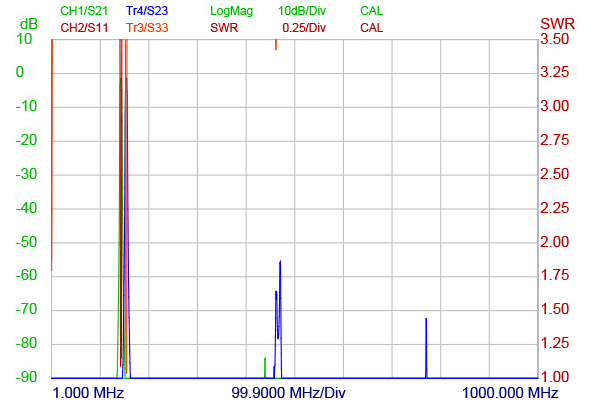

Typical Out of band curves for 10 MHz

DPBP 2!66 150 LL!1 10 1!LPF Outcurve

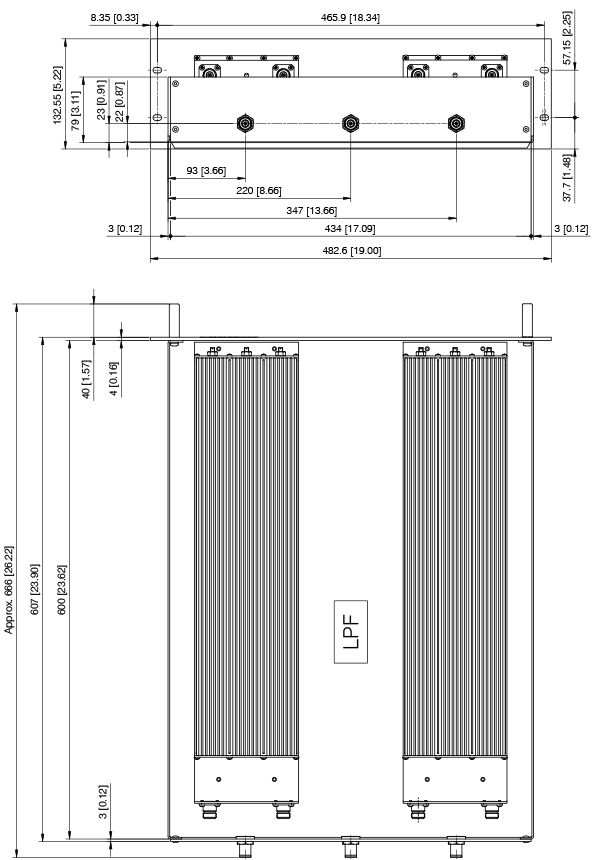

Mechanical Outline

DPBP 2!66 150 Dimension

All dimensions are given in mm [in.]
