DPF 1400/6

6-Cavity Duplexer for 1400 MHz Band

Find Out More
View Variations
Data Sheet
CE Certification

Other Files

DPF 1400/6

Quickly identify the correct ordering code.

DPF 1400/6
Electrical
Model DPF 1400/6
Frequency 1240 – 1600 MHz
Max. Input Power 50 W
Insertion Loss Tx-Ant. ≤ 1.0 dB (typ. ≤ 0.7 dB)
Spacing Tx-Rx 35 MHz – 28 MHz on request
Tx Noise Suppression on Rx Frequency ≥ 85 dB
Isolation Rx on Frequency Tx ≥ 85 dB
Impedance 50 Ω
Duplex Spacing 35 MHz (nominal)
28 MHz on request
VSWR < 1.5:1
Environmental
Frequency Stability Approx. 5 ppm / °C
Operating temperature range -30 °C to +60 °C
Mechanical
Connection(s) N(f)
(BNC(f), TNC(f), UHF(f) or SMA(f) on request)
Historic Brand Amphenol Procom
Dimensions 135 x 154 x 33 mm / 5.3 x 6.1 x 1.3 in.
Weight Approx. 0.62 kg / 1.37 lb.

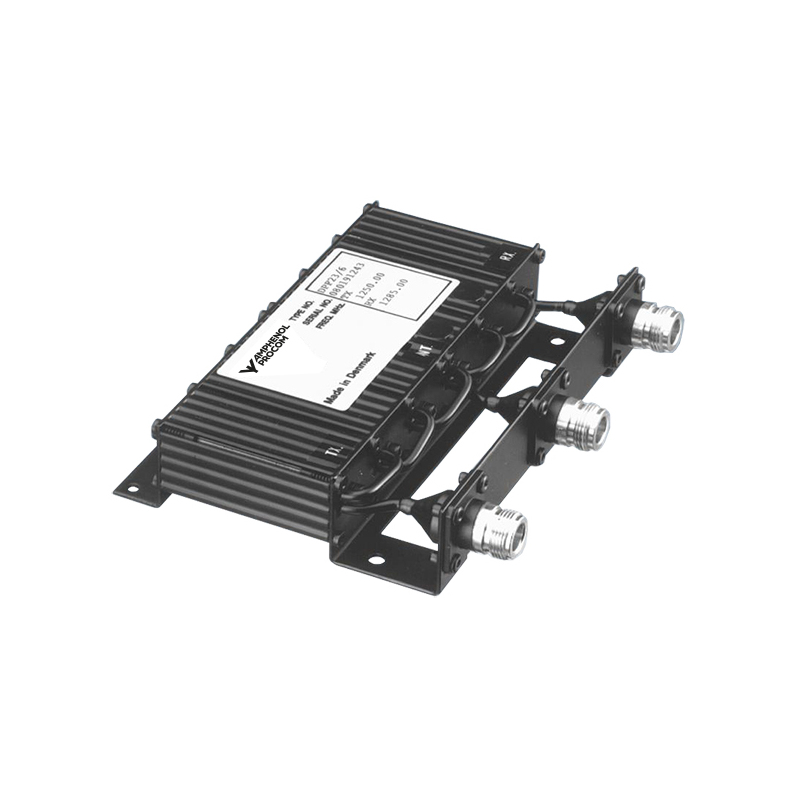

  • The DPF 1400/6 is a 6-cavity duplex filter.
  • The DPF 1400/6 can be tuned within the 1240 – 1600 MHz band with a nominal duplex separation of 35 MHz.
  • The filter uses full-length ¼ λ cavities in a compact, extruded aluminium housing. The chassis is made of passivated steel, and teflon insulation has been applied in the rigid coaxial cables and in the connectors.
  • The filter is black vinyl-coated to prevent corrosion.

TYPICAL RESPONSE CURVES

Model Product No. Frequency Add To Quote

DPF 1400/6-L N(f)

 200001986 1240 – 1440 MHz

DPF 1400/6-H N(f)

 200002300 1440 – 1600 MHz
