DPF 3/6-HX-150

6-cavity Mobile or Base Station Duplexer for the 112 – 136 MHz Band

Find Out More
Data Sheet
CE Certification

Other Files

DPF 3/6-HX-150
Electrical
Model DPF 3/6-HX-150
Frequency 112 – 136 MHz
Max. Input Power 100 W @ 1 dB insertion loss
Min. Duplex Spacing 1 MHz
Insertion Loss @ 1.3 MHz spacing : 1.5 dB
@ 2.0 MHz spacing : 1.2 dB
@ 3.0 MHz spacing : 1.0 dB
Impedance 50 Ω
Tx Noise Suppression on Rx-Freq. / Rx Isolation on Tx-Freq. @ 1.3 MHz spacing : 65 dB
@ 2.0 MHz spacing : 80 dB
@ 3.0 MHz spacing: 100 dB
VSWR < 1.5:1
Environmental
Frequency Stability Approx. 8 ppm / °C
Operating temperature range -30 °C to +60 °C
Mechanical
Connection(s) N(f)
(BNC(f), TNC(f), UHF(f) or SMA(f) on request)
Historic Brand Amphenol Procom
Dimensions 185 x 250 x 50 mm / 7.28 x 9.84 x 1.97 in.
Weight Approx. 2.1 kg / 4.63 lb.

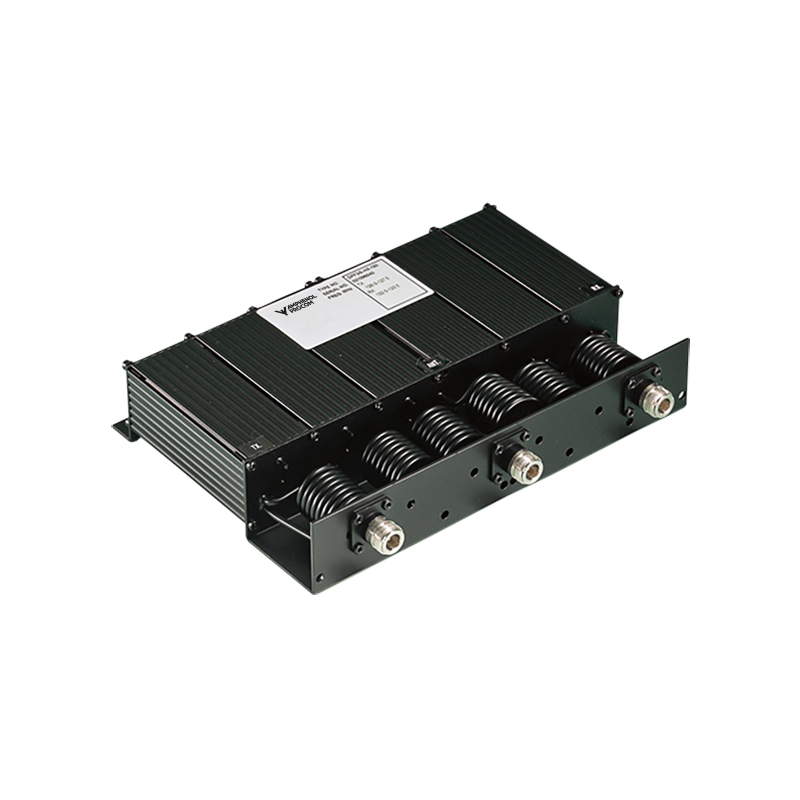

  • The DPF 3/6-HX-150 is a six-cavity high-power mobile or base station duplexer for the 112 – 136 MHz band.
  • This type of filter uses six large 40 x 40 mm cavities, all equipped with 3.5 mm silver-plated helical resonators, diameter 19 mm.
  • The use of large cavities and resonators means higher Q, resulting in smaller duplex spacing with lower loss.
  • The larger dimensions extend power rating to 100 W continuous.
  • The DPF 3/6-HX-150 is designed for single-channel equipment, but can, with slightly reduced specification, be broadband-adjusted to allow multichannel equipment to be used.
  • The cavities are made of extruded aluminium, the chassis of passivated steel. All coaxial cables are of the semi-rigid type, and teflon has been used in all connectors and cables.
  • The filter is black vinyl coated to prevent corrosion.
  • Please specify the frequencies for Tx and Rx when ordering, as all filters are made individually.

TYPICAL RESPONSE CURVES @ 3 MHz DUPLEX SPACING

TYPICAL RESPONSE CURVES @ 2 MHz DUPLEX SPACING

TYPICAL RESPONSE CURVES @ 1.3 MHz DUPLEX SPACING
