DPF 4/4 S-4/13
Electrical
Model DPF 4/4 S-4/13
Frequency 66 – 88 MHz
Max. Input Power 50 W
Special spec. info
Single-channel tuned :Multi-channel tuned
BW = 1 MHz :
Insertion Loss Tx-Ant and Ant-Rx
≤ 0.8 dB≤ 1.0 dB
Tx Noise Suppression on Rx Frequency
> 70 dB> 40 dB
Isolation Rx on Frequency Tx
> 60 dB> 40 dB
Impedance 50 Ω
Duplex Spacing 4 – 13 MHz (adjustable)
VSWR < 1.5:1
Environmental
Frequency Stability Approx. 9 ppm / °C
Operating temperature range -30 °C to +60 °C
Mechanical
Connection(s) N(f)
(BNC(f), TNC(f), UHF(f) or SMA(f) on request)
Historic Brand Amphenol Procom
Dimensions 173 x 104 x 33 mm / 6.81 x 4.09 x 1.28 in.
Weight Approx. 0.54 kg / 1.19 lb.

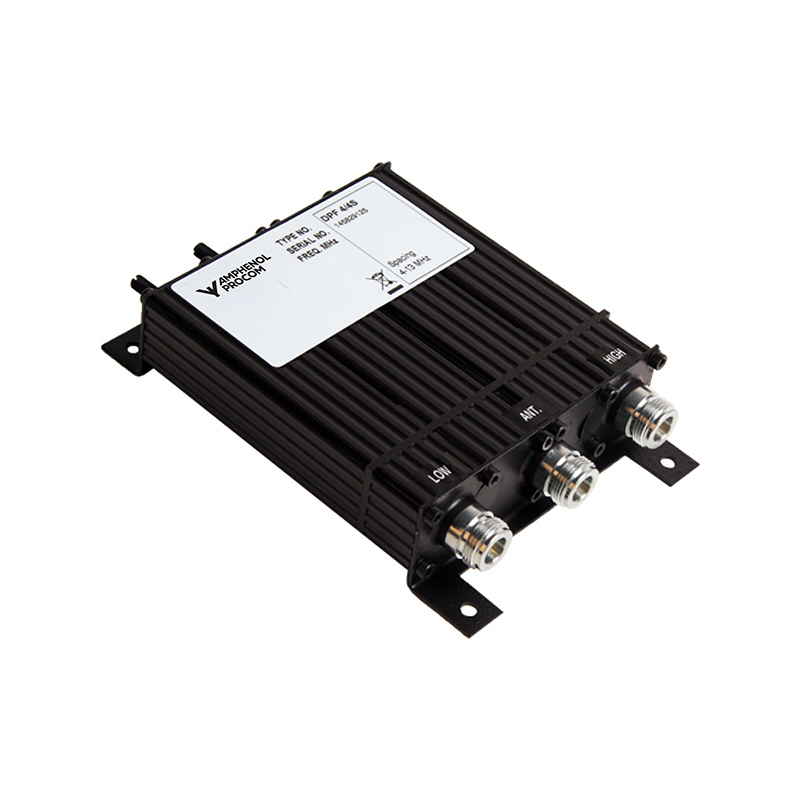

  • The DPF 4/4 S-4/13 is a 4-resonator duplex filter for duplex radiotelephones.
  • This filter is primarily intended for equipment, where the Tx and the Rx operate on single frequencies, but it can also, however with slightly reduced data, be used where the Tx and Rx operate on several channels, i.e. within a certain port bandwidth. In the last case, factory tuning is recommended.
  • The duplexer can be tuned within the complete 66 – 88 MHz range with a duplex separation between 4 and 13 MHz.
  • The filter has very small physical dimensions owing to the use of high-Q, temperature compensated helical resonators with discrete-component interconnections.
  • The housing is made of extruded aluminium, the chassis of passivated steel, and the connectors are provided with teflon insulation.
  • The filter is black vinyl coated to prevent corrosion.

MOUNTING

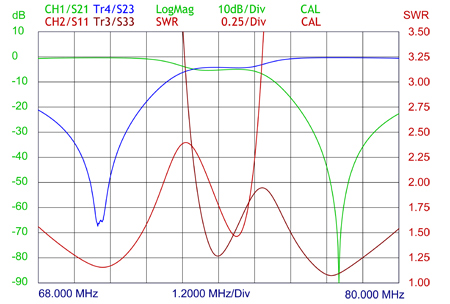

TYPICAL RESPONSE CURVES @ 4 MHz DUPLEX SPACING
