DPF 4/6 S

6-Resonator Duplexer for the 80 MHz Band

Find Out More
View Variations
Data Sheet
CE Certification

Other Files

DPF 4/6 S

Quickly identify the correct ordering code.

DPF 4/6 S
Electrical
Model DPF 4/6 S-…
Frequency 66 – 88 MHz
Max. Input Power 50 W
Special spec. info
Single-channel tuned :Multi-channel tuned
BW = 2 MHz :
Insertion Loss Tx-Ant and Ant-Rx
< 1.2 dB< 1.3 dB
Spacing 3 – 16 MHz (see table)
Tx Noise Suppression on Rx Frequency
> 80 dB> 40 dB
Isolation Rx on Frequency Tx
> 80 dB> 40 dB
Impedance 50 Ω
VSWR < 1.4:1
Environmental
Frequency Stability Approx. 9 ppm / °C
Operating temperature range -30 °C to +60 °C
Mechanical
Connection(s) N(f) (Others on request)
Historic Brand Amphenol Procom
Dimensions 170 x 154 x 33 mm /
6.69 x 6.06 x 1.30 in.
Weight Approx. 1.05 kg / 2.31 lb.

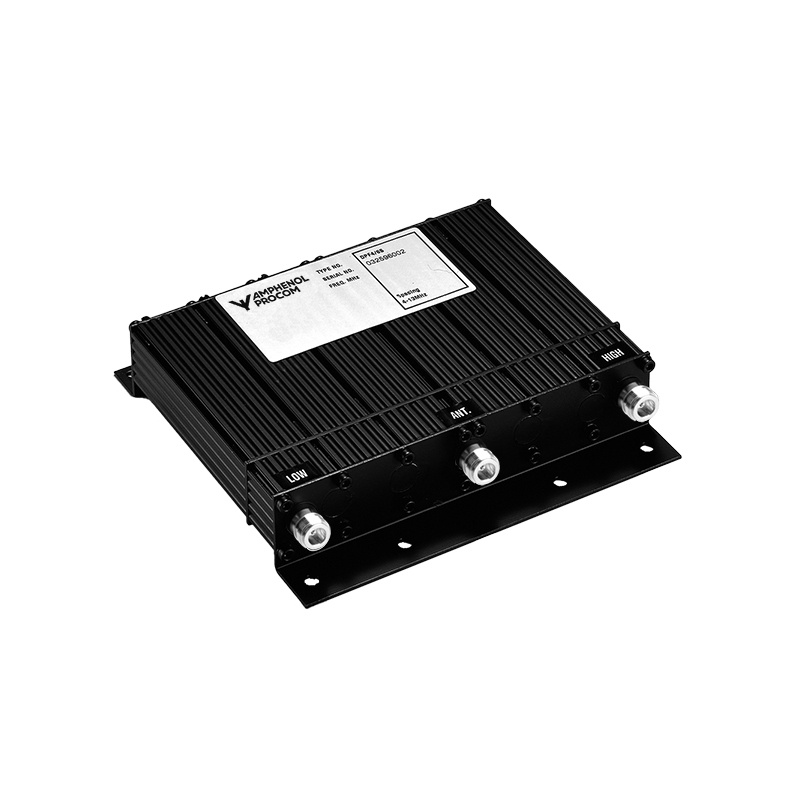

  • The DPF 4/6 S-… is a 6-resonator duplex filter for duplex radiotelephones.
  • This filter is primarily intended for equipment, where the Tx and the Rx operate on single frequencies, but it can also, however with slightly reduced data, be used where the Tx and Rx operate on several channels, i.e. within a certain port bandwidth. In the last case, factory-tuning is recommended.
  • The filter can be tuned within the complete 66 – 88 MHz range with a duplex separation between 4 and 13 MHz.
  • The filter has very small dimensions owing to the use of high-Q, temperature compensated helical resonators with discrete-component interconnections.
  • The housing is made of extruded aluminium, the chassis of passivated steel, and the connectors are provided with teflon insulation.
  • The filter is coated with black vinyl to prevent corrosion.

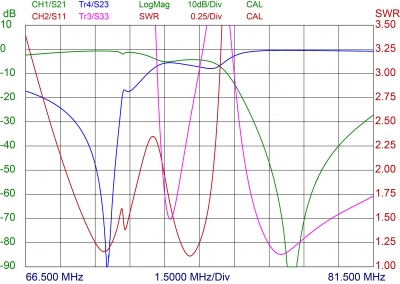

TYPICAL RESPONSE CURVES

Model Product No. Frequency Add To Quote

DPF 4/6 S-3/4 N(f)

 200000282 3 – 4 MHz

DPF 4/6 S-4/13 N(f)

 200000263 4 – 13 MHz

Login required

You need to be logged in into your account to view downloadable documents.

Please Note

This filter type can also be delivered with the resonators stacked 3 over 3, thereby accomodating special space restrictions. In this case please order DPF 4/33 S.
