DPF 70/…-125

Duplex Filters for the 450 MHz Band

Find Out More
View Variations
Data Sheet
CE Certification

Other Files

DPF 70/...-125

Quickly identify the correct ordering code.

DPF 70/…-125
Electrical
Model
DPF 70/22-125DPF 70/33-125
Frequency
400 – 470 MHz400 – 470 MHz
Max. Input Power
250 W @ 1 dB IL250 W @ 1.5 dB IL
Min. Duplex Spacing
0.5 MHz0.5 MHz
Insertion Loss
0.5 MHz < 2.5 dB
2 MHz < 2.0 dB0.5 MHz < 2.5 dB
2 MHz < 2.0 dB
Impedance
50 Ω50 Ω
Attenuation
0.5 MHz > 45 dB
2 MHz > 60 dB0.5 MHz > 50 dB
2 MHz > 75 dB
VSWR
< 1.5:1< 1.5:1
Environmental
Frequency Stability
0.8 ppm/° C (approx.)0.8 ppm/° C (approx.)
Operating temperature range
-30°C to +60°C-30°C to +60°C
Mechanical
Connection(s)
N(f)N(f)
Historic Brand Procom
Dimensions
260 x 483 x 300(400) mm / 10.24 x 19.01 x 11.81 (15.75) in.260 x 483 x 300(400) mm / 10.24 x 19.01 x 11.81 (15.75) in.
Weight
Approx. 7 kg / 15.43 lb.Approx. 8.6 kg / 18.96 lb.

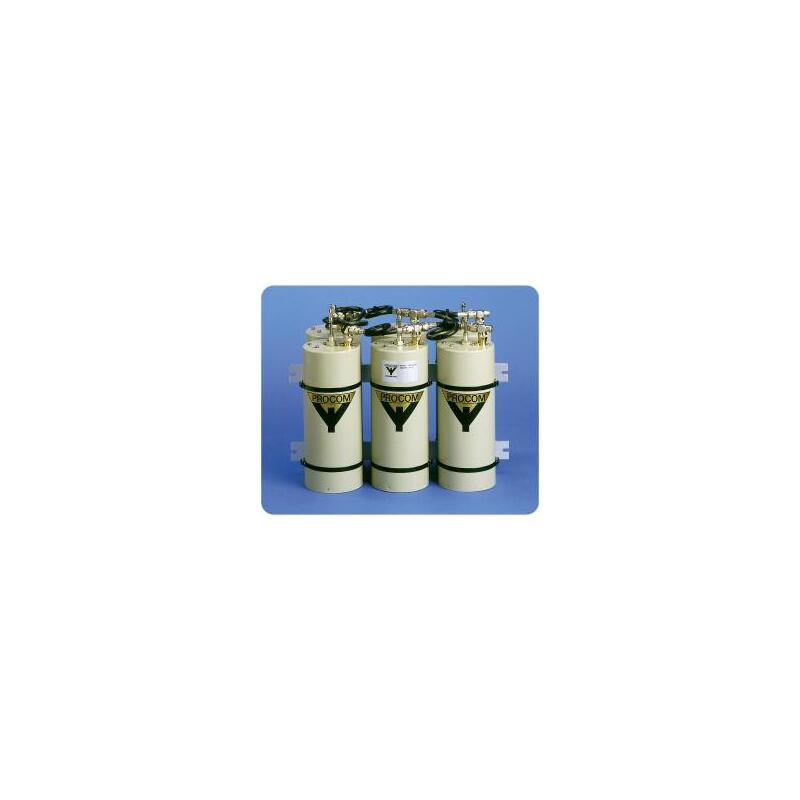

  • High power base station duplex filters for the 400 – 475 MHz range.
  • The use of large ø125 mm cavities means a high Q,
    resulting in a very small duplex spacing.
  • The large dimensions also mean a high power rating.
  • High frequency stability on temperature and power.
  • Mounting brackets for 19” mounting included.
  • Please specify the frequencies for Tx and Rx when ordering.
