DPF 70/55 380-EXT

Duplex Filter for the extended TETRA band Low 380 – 386.5 MHz & High 390 – 396.5 MHz

Find Out More
Data Sheet
CE Certification

Other Files

DPF 70/55 380-EXT
Electrical
Model DPF 70/55 380-EXT
Frequency 380 – 386.5 MHz / 390 – 396.5 MHz
Max. Input Power 50 W
Pass Band Insertion Loss < 2.0 dB
Impedance 50 Ω
VSWR < 1.5:1
Stop Band Attenuation > 60 dB
Environmental
Operating temperature range -30 °C to +60 °C
Mechanical
Connection(s) N(f)
Historic Brand Amphenol Procom
Dimensions 247 x 129 x 58 mm /
9.72 x 5.08 x 2.28 in. (excl. conn.)
Weight Approx. 1.6 kg / 3.53 lb.
  • The DPF 70/55 380-EXT is developed for the Public Safety TETRA extended network. Bandwidth 2 x 6.5 MHz
  • The filter uses 2 x 5 resonators ¼ λ in a compact, extruded aluminium cavity housing.
  • The chassis is made of passivated steel and teflon insulation has been applied in the coaxial cables and in the connectors.
  • The filter is coated with black vinyl to prevent corrosion.

No content found

This product doesn’t have any diagrams yet.

Model Product No. Add To Quote
Duplex Filter for the extended TETRA band Low 380 – 386.5 MHz & High 390 – 396.5 MHz 200002892

Login required

You need to be logged in into your account to view downloadable documents.

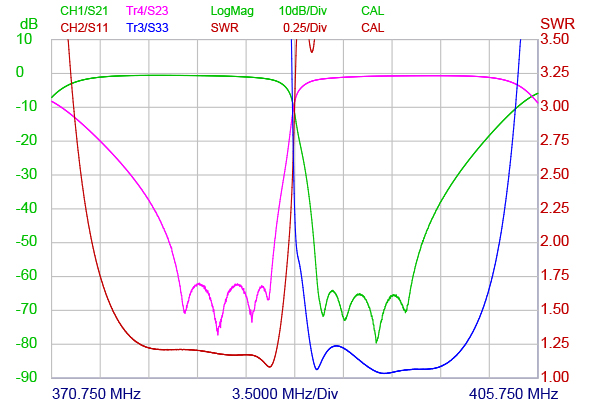

Typical response curves

DPF 70!55 380 EXT VSWR

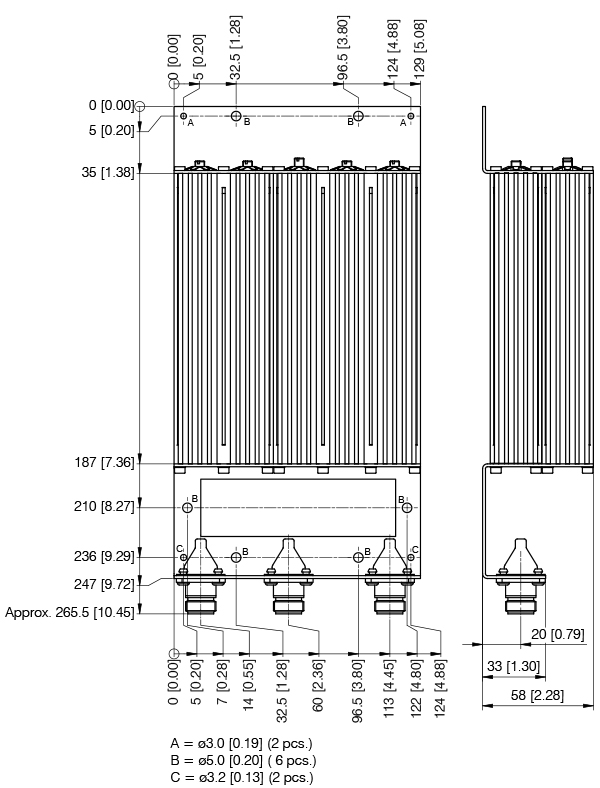

Mounting Details

DPF 70!55 380 EXT Holeplacing

All dimensions are given in mm [in.]
