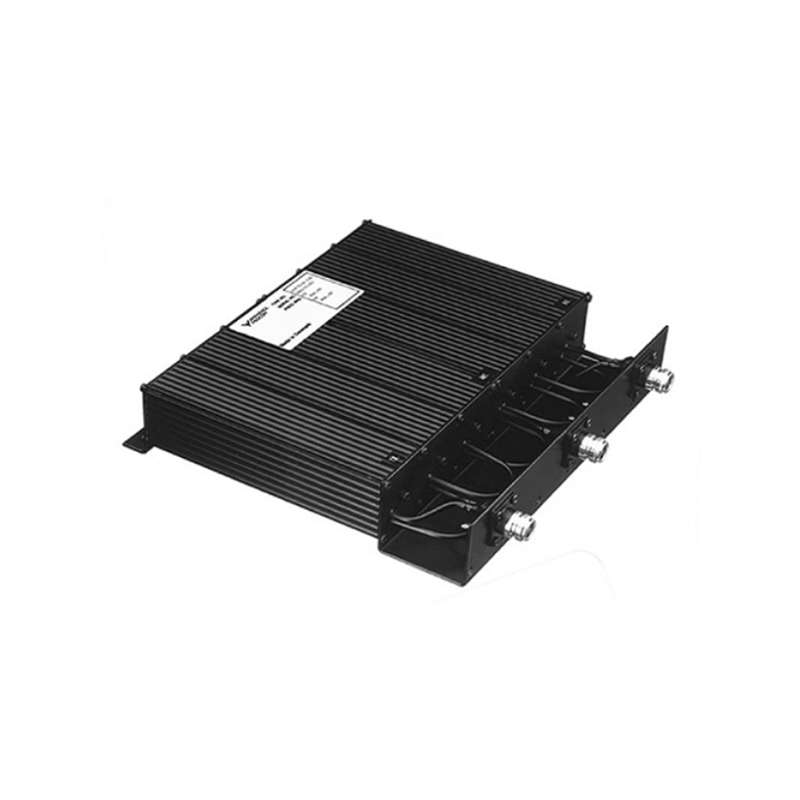

DPF 70/6-150 (¼ λ resonators)

6-Cavity High Power Base Station Duplexers for the UHF 450 MHz range

Find Out More
View Variations
Data Sheet
CE Certification

Other Files

DPF 70/6-150 (¼ λ resonators)

Quickly identify the correct ordering code.

DPF 70/6-150 (¼ λ resonators)
Electrical
Model DPF 70/6-150
Cavity Type ¼ λ tube resonators
Frequency 406 – 470 MHz
Max. Input Power
100 W150 W
Special spec. info
Single-channel tunedSingle-channel tunedMulti-channel tuned
BW Tx and Rx = 2 MHz
Insertion Loss Tx-Ant and Ant-Rx
≤ 1.4 dB≤ 1.2 dB≤ 1.2 dB
Tx Noise Suppression on Rx Frequency
> 60 dB> 80 dB> 60 dB
Isolation Rx on Frequency Tx
> 60 dB> 80 dB> 60 dB
Impedance 50 Ω
Duplex Spacing
2 – 5 MHz5 – 15 MHz5 – 15 MHz
VSWR < 1.5:1
Environmental
Operating temperature range -30 °C to +60 °C
Mechanical
Connection(s) N(f) (Others on request)
Colour Black
Historic Brand Amphenol Procom
Dimensions Approx. 238 x 250 x 50 mm /
9.37 x 9.84 x 1.97 in.
Weight Approx. 2.5 kg / 5.51 lb.
  • 150 W base station duplexers.
  • The ¼ λ models are continuously tunable from 406 MHz to 470 MHz.
  • Low insertion loss due to silver-plated, temperature compensated resonator elements in high-Q 40 x 40 mm cavities.
  • Single channel tuned as standard.
  • Multi-channel tuning possible with slightly reduced data (factory tuning recommended).
  • Fully environmentally tested.

No content found

This product doesn’t have any diagrams yet.

Model Product No. Frequency Add To Quote

DPF 70/6-150-2/3-¼ λ-N(f)

 200000369 2 – 3 MHz

DPF 70/6-150-3/5-¼ λ-N(f)

 200001617 3 – 5 MHz

DPF 70/6-150-5/7-¼ λ-N(f)

 200001610 5 – 7 MHz

DPF 70/6-150-7/9-¼ λ-N(f)

 200001615 7 – 9 MHz

DPF 70/6-150-9/11-¼ λ-N(f)

 200001612 9 – 11 MHz

DPF 70/6-150-11/13-¼ λ-N(f)

 200001872 11 – 13 MHz

DPF 70/6-150-13/15-¼ λ-N(f)

 200001873 13 – 15 MHz

Login required

You need to be logged in into your account to view downloadable documents.

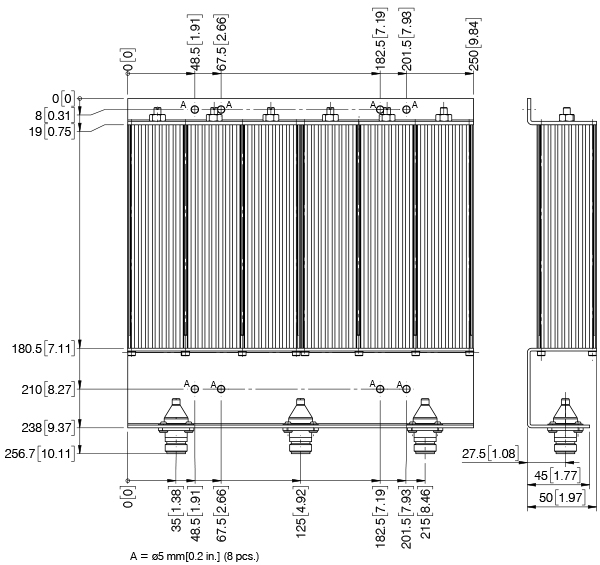

Mounting Details

For ¼ λ models

DPF 70!6 150 for 1!4 wave Short Dimension

All dimensions are given in mm [in.]

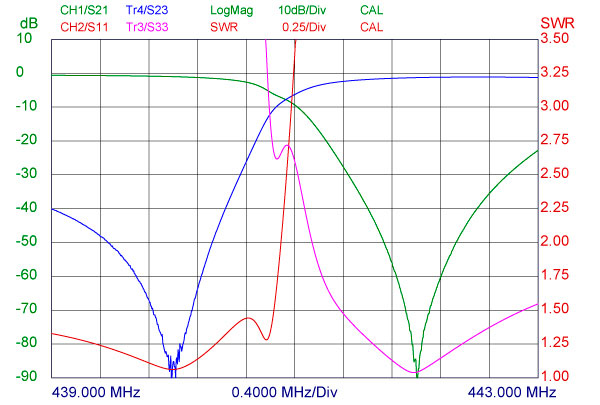

Typical response curve

DPF 70 6 150 kurve

Ordering
ModelProduct No.Spacing
DPF 70/6-150-2/3-¼ λ-N(f) 200000369 2 – 3 MHz
DPF 70/6-150-3/5-¼ λ-N(f) 200001617 3 – 5 MHz
DPF 70/6-150-5/7-¼ λ-N(f) 200001610 5 – 7 MHz
DPF 70/6-150-7/9-¼ λ-N(f) 200001615 7 – 9 MHz
DPF 70/6-150-9/11-¼ λ-N(f) 200001612 9 – 11 MHz
DPF 70/6-150-11/13-¼ λ-N(f) 200001872 11 – 13 MHz
DPF 70/6-150-13/15-¼ λ-N(f) 200001873 13 – 15 MHz
