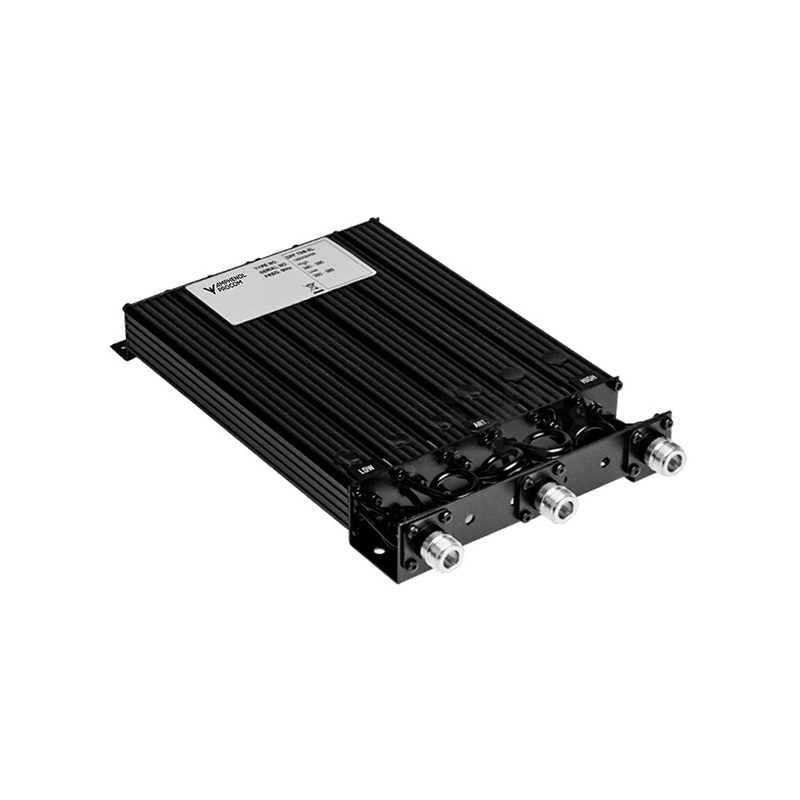

DPF 70/6-XL

6-cavity duplexer for the 350 MHz band

Find Out More
View Variations
Data Sheet
CE Certification

Other Files

DPF 70/6-XL

Quickly identify the correct ordering code.

DPF 70/6-XL
Electrical
Model DPF 70/6-XL
Frequency 340 – 400 MHz
Max. Input Power 50 W
Special spec. info
Single-channel tuned :Multi-channel tuned
BW = 2 MHz :
Insertion Loss Tx-Ant and Ant-Rx
≤ 1.2 dB (typ. 1.0 dB≤ 1.2 dB (typ. 1.0 dB)
(at 10 MHz duplex spacing)
Tx Noise Suppression on Rx Frequency
≥ 85 dB≥ 65 dB
Isolation Rx on Frequency Tx
≥ 85 dB≥ 65 dB
Impedance 50 Ω
VSWR < 1.5:1
Environmental
Frequency Stability Approx. 4.5 ppm / °C
Operating temperature range -30 °C to +60 °C
Mechanical
Connection(s) N(f)
(BNC(f), TNC(f), UHF(f) or SMA(f) on request)
Historic Brand Amphenol Procom
Dimensions 243 x 154 x 33 mm / 9.5 x 6.0 x 1.3 in.
Weight Approx. 1.123 kg / 2.48 lb.
  • The DPF 70/6-XL is a 6-cavity duplex filter for duplex transceivers.
  • The DPF 70/6-XL can be adjusted within the complete 340 – 400 MHz band. The duplexer can be supplied in four different versions according to duplex spacing required.
    Also see “Ordering information” below
  • The DPF 70/6-XL is primarily intended for equipment with Tx and Rx operating on single frequencies, but it can also, however with slightly reduced data, be used where the Tx and Rx operate on several channels, i.e. within a certain port bandwidth. In the last case, factory tuning is recommended.
  • The filter uses full-length ¼ cavities in a compact, extruded aluminium housing. The chassis is made of passivated steel and teflon insulation has been applied in the coaxial cables and in the connectors.
  • The filter is black vinyl coated to prevent corrosion.

No content found

This product doesn’t have any diagrams yet.

Model Product No. Frequency Add To Quote

DPF 70/6-XL-5/7-N(f)

 200000423 5 – 7 MHz

DPF 70/6-XL-7/9-N(f)

 200001635 7 – 9 MHz

DPF 70/6-XL-9/13-N(f)

 200001794 9 – 13 MHz

DPF 70/6-XL-13/16-N(f)

 200002705 13 – 16 MHz

Login required

You need to be logged in into your account to view downloadable documents.

Ordering Information

If duplex Tx and Rx frequencies are stated when ordering, the duplexers are delivered factory-adjusted. If Tx and Rx frequencies are not stated, the filters are delivered non-adjusted.

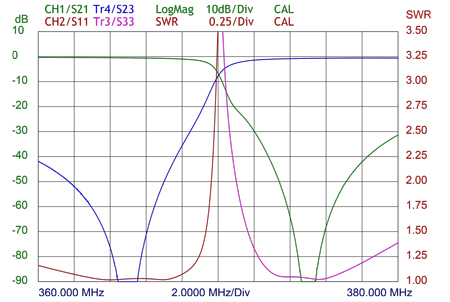

Single-Channel Typical Response Curves @ 10 MHz Spacing

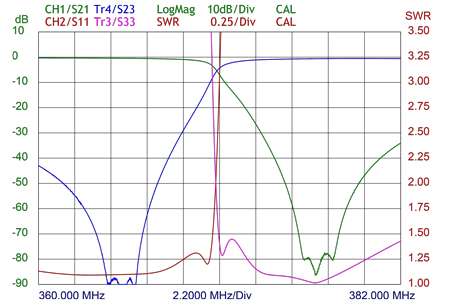

Multi-Channel, 2 MHz BW Typical Response Curves @ 10 MHz Spacing

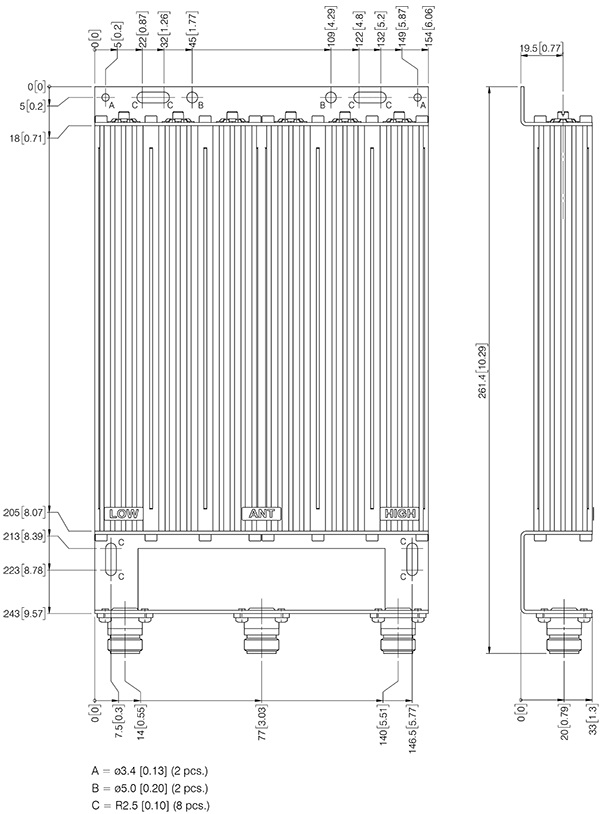

Mounting Details

DPF 70 6 XL holeplace

All dimensions are given in mm [in.]

Please Note

Special configurations of this filter type may be quoted on request. For instance, the filter can be delivered with other connector types, or with flying leads (RG 316 coaxial cable) terminated with connectors or for soldering-connection.
