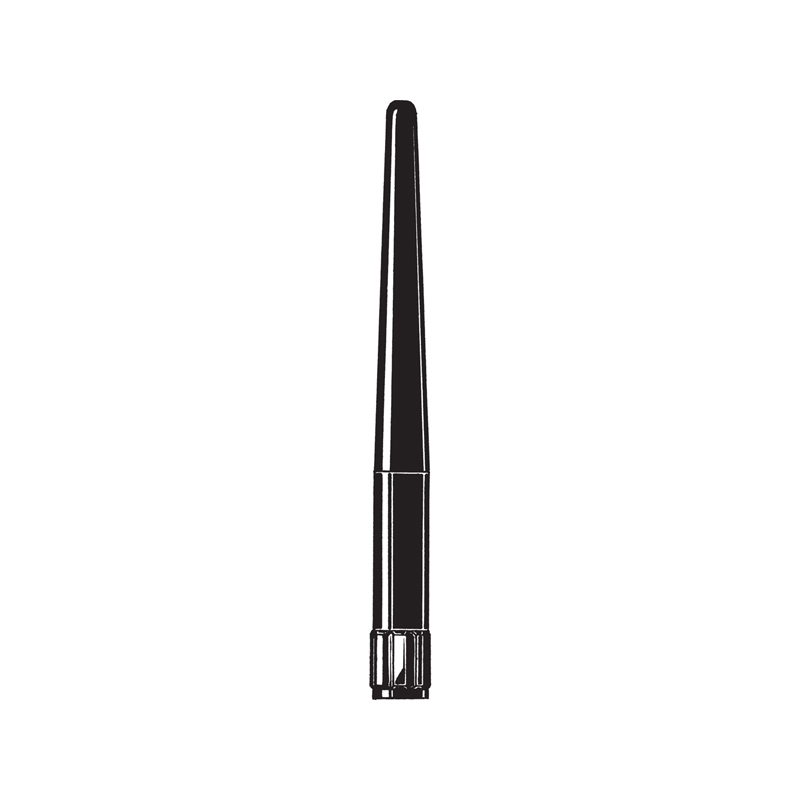

EFD 2412/…-SMA

End-Fed ½ λ Dipole Antenna with SMA-Connector for Portable Equipment in the 2400 MHz Band

Find Out More
View Variations
Data Sheet
CE Certification

Other Files

EFD 2412/...-SMA

Quickly identify the correct ordering code.

EFD 2412/…-SMA
Electrical
Model EFD 2412/…-SMA
Frequency To be specified within 2300 – 2500 MHz
Antenna Type End-fed ½ λ antenna for portable equipment
Max. Input Power 25 W
Polarisation Vertical
Impedance 50 Ω
Gain 0 dBd / 2.15 dBi
(3 dB compared to a ¼ λ portable antenna)
Bandwidth ≥ 50 MHz @ VSWR ≤ 1.5
≥ 200 MHz @ VSWR ≤ 2.0
Mechanical
Connection(s) SMA(m)
Materials Black cover POM, Black-chromed brass
Colour Black
Historic Brand Procom
Height Approx. 110 mm / 4.33 in.
Weight Approx. 0.022 kg / 0.05 lb.
  • End-fed ½ λ whip – groundplane independent.
  • High gain and efficient decoupling from the portable equipment due to half-wave design.
  • 3 dB gain (typ.) compared to a ¼ λ antenna whip on the same equipment.
  • Highest quality materials in a long-lasting and durable design.
  • Models available for the ISM, RLAN, WLAN systems.
  • Provided with SMA(m) connector.

No content found

This product doesn’t have any diagrams yet.

Model Product No. Frequency Add To Quote

EFD 2412/2300-SMA(m)

 140000781 2200 – 2400 MHz

EFD 2412/2350-SMA(m)

 140000782 2250 – 2450 MHz

EFD 2412/2400-SMA(m)

 140000783 2300 – 2500 MHz

EFD 2412/2450-SMA(m)

 140000784 2350 – 2550 MHz

EFD 2412/2500-SMA(m)

 140000785 2400 – 2600 MHz
