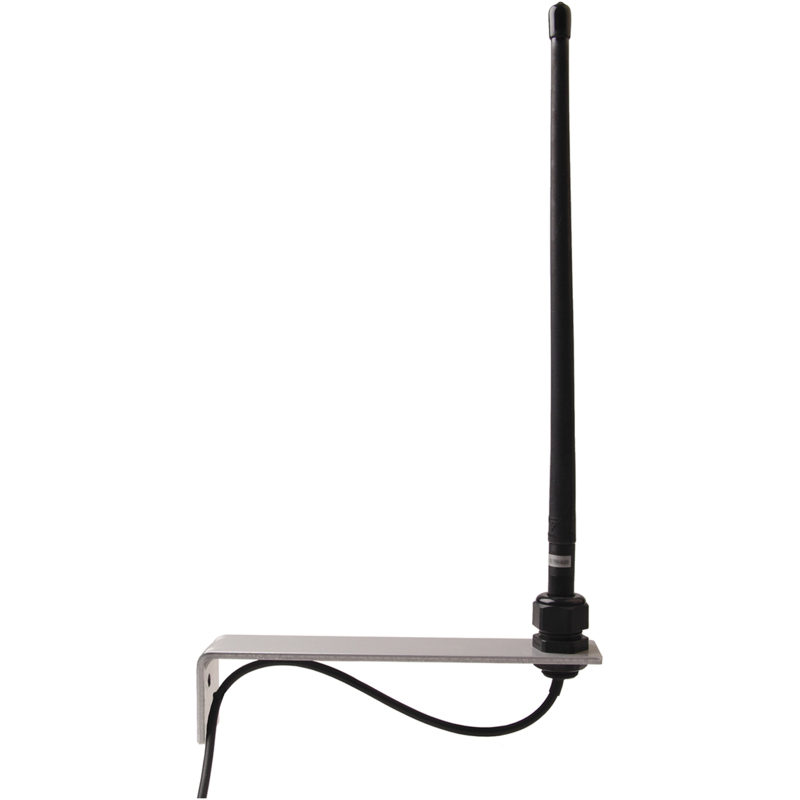

EFD 70/425 MHz-P2.5-FME-DLV

End-Fed ½ λ Dipole Antenna for Equipment in the 400 MHz Band

Find Out More
Data Sheet
CE Certification

Other Files

EFD 70/425 MHz-P2.5-FME-DLV
Electrical
Model EFD 70/425 MHz-P2.5-FME-DLV
Frequency 418 – 433 MHz
Antenna Type Antenna for wall mount
Max. Input Power 25 W
Polarisation Vertical
Impedance 50 Ω
Gain 0 dBd
VSWR < 1.5:1 @ fc
Mechanical
Materials Steelwire moulded in thermoplastic rubber
Black-chromed brass
Bracket: Aluminium
Cable 2.5 m fixed RG 58 cabel terminated with FME-connector.
Delieved incl. a FME-EBNC adaptor.
Colour Black (Bracket: bright)
Historic Brand Amphenol Procom
Height Approx. 310 mm / 12.20 in. (over the bracket)
Weight Approx. 0.32 kg / 0.71 lb. (incl. bracket)
  • Sturdy, conical, flexible rubber antenna.
  • Full-size, end-fed ½ λ 0 dBd antenna.
  • Highest quality materials – designed for “wear and tear”.
  • Delivered factory tuned and tested to ensure minimum VSWR and optimum performance.
  • Delivered incl. wall mount bracket.

No content found

This product doesn’t have any diagrams yet.

Model Product No. Add To Quote
End-Fed ½ λ Dipole Antenna for Equipment in the 400 MHz Band 140000685

Login required

You need to be logged in into your account to view downloadable documents.

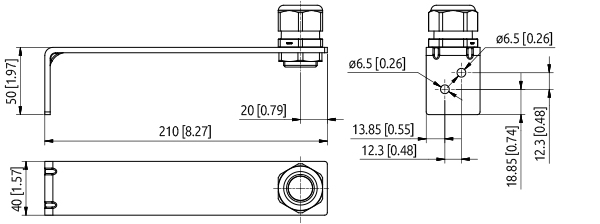

Mounting Details

EFD70 425 P2.5 WM Mounting details

All dimensions are given in mm [in.]

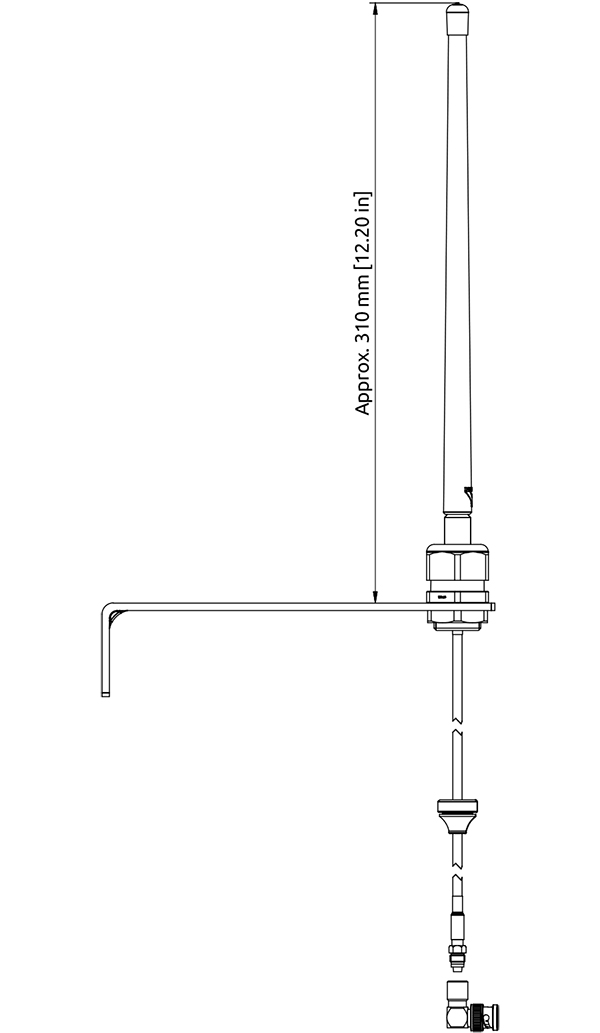

Dimensions

EFD70 425MHz P2.5 WM Dimension

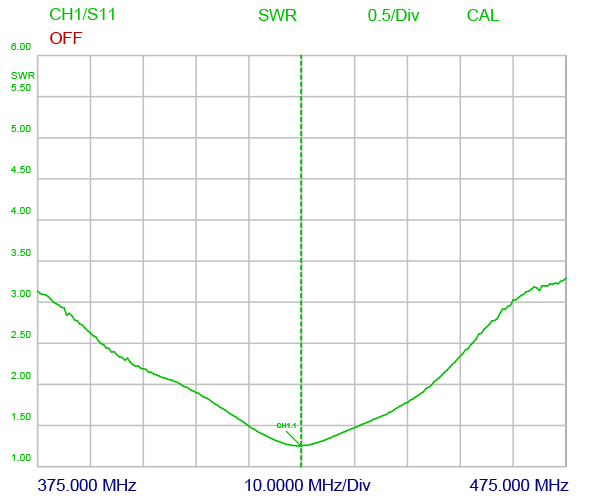

Typical VSWR curve

EFD70 425MHz P2.5 FME DLV SWR
