EFD 70/…-FME

End-Fed ½ λ Dipole Antenna with Universal FMEConnection System for Portable Equipment in the 70 cm Band

Find Out More
View Variations
Data Sheet
CE Certification

Other Files

EFD 70/...-FME

Quickly identify the correct ordering code.

EFD 70/…-FME
Electrical
Model EFD 70/…-FME
Frequency 70 cm band (380 – 470 MHz)
Antenna Type Antenna for portable equipment
Max. Input Power 25 W
Polarisation Vertical
Impedance 50 Ω
Gain 0 dBd / 2.15 dBi 3 dB (compared to a ¼ λ portable antenna)
VSWR < 1.3:1 @ fc
Bandwidth ≥ 30 MHz @ VSWR ≤ 2.5
Mechanical
Connection(s) FME(f) (Exchangeable BFME-connectors to be ordered separately)
Materials Steelwire moulded in thermoplastic rubber
Black-chromed brass
Colour Black
Historic Brand Amphenol Procom
Height Approx. 310 mm / 12.20 in.
Weight Approx. 0.06 kg / 0.13 lb.
  • Sturdy, conical, flexible rubber antenna.
  • Full-size, end-fed ½ λ antenna whip.
  • High gain and efficient decoupling from the portable equipment.
  • 3 dB gain (typ.) compared to a ¼ λ antenna whip on the same equipment.
  • Highest quality materials – designed for “wear and tear”.
  • Delivered factory tuned and tested to ensure minimum VSWR and optimum
    performance.
  • Provided with universal FME-connection system for optimum flexibility and easily exchangeable connectors.
  • Designed for use with the following of Procoms line of black
    FME-connectors (to be ordered separately): BFME-UHF, BFME-BNC,
    BFME-TNC, BFME-N, BFME-EBNC and BFME-ETNC.

No content found

This product doesn’t have any diagrams yet.

Model Product No. Frequency Add To Quote

EFD 70/385-FME(f)

 140000753 370 – 400 MHz

EFD 70/405-FME(f)

 140000754 390 – 420 MHz

EFD 70/425-FME(f)

 140000755 410 – 440 MHz

EFD 70/445-FME(f)

 140000756 430 – 460 MHz

EFD 70/465-FME(f)

 140000757 450 – 480 MHz

EFD 70/…-FME/GND

 140000490 n/a

Login required

You need to be logged in into your account to view downloadable documents.

Please Note

The EFD 70/…-FME is also available in an antistatic protected version.the parts of the EFD 70/…-FME/GND (see ordering designations) are DC-grounded and the connector shows a DC-short.The mechanical length is approx. 50 mm longer in this case.

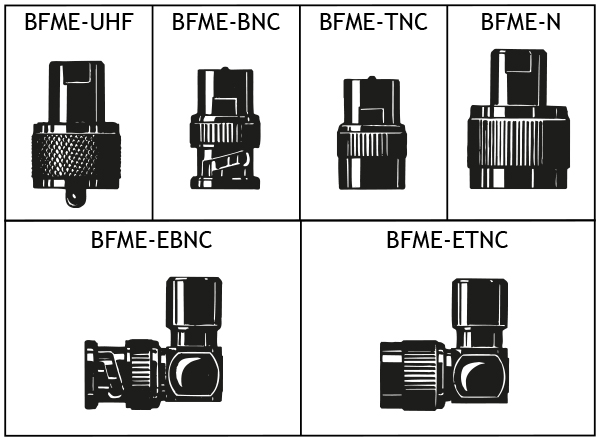

Recommended BFME-Connectors

BFME uhf bnc tnc n ebnc etnc

(To be ordered separately)

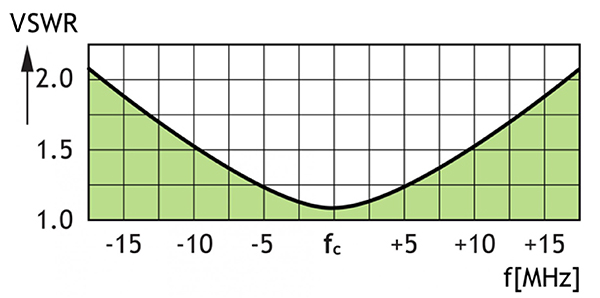

Typical VSWR curve

EFD 70 FME Vswr
