ELF 1300/…-TNC

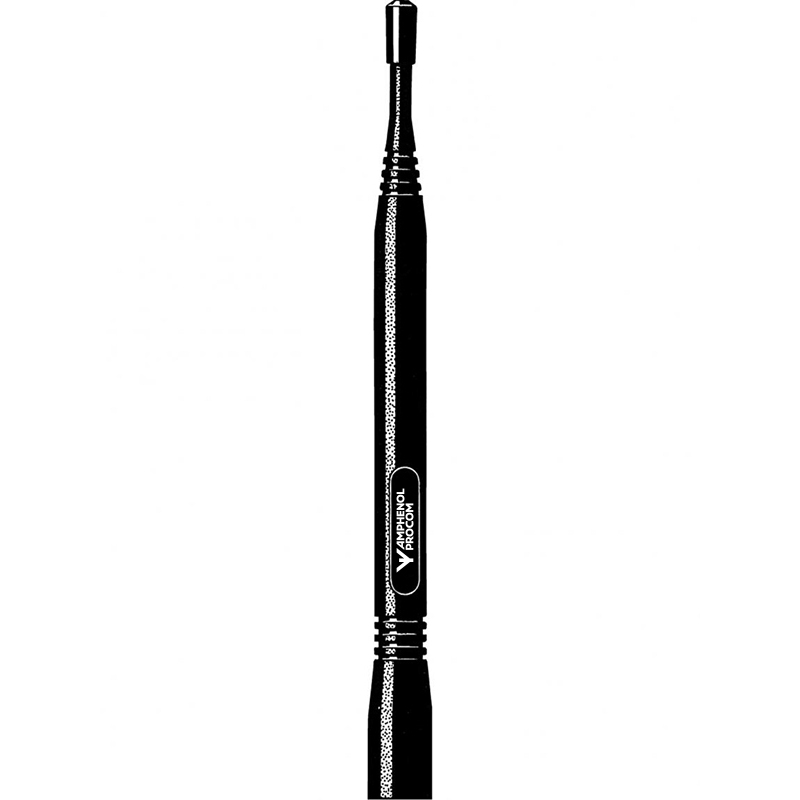

“Elevated-Feed” 1/2 λ Dipole Antenna for Portable Equipment in the 1300 MHz Band

Find Out More
View Variations
Data Sheet
CE Certification

Other Files

ELF 1300/...-TNC

Quickly identify the correct ordering code.

ELF 1300/…-TNC
Electrical
Model ELF 1300/…-TNC
Frequency 1200 – 1300 MHz
Antenna Type Elevated-feed ½ λ dipole
Max. Input Power 25 W
Polarisation Vertical
Impedance 50 Ω
Gain 0 dBd / 2.15 dBi (3 dB compared to a ¼ λ portable antenna)
VSWR < 1.3:1 @ f. res.
Mechanical
Connection(s) TNC(m)
Materials Thermoplastic rubber
Brass
Colour Black
Historic Brand Amphenol Procom
Height Approx. 210 mm / 8.27 in.
Weight Approx. 0.04 kg / 0.09 lb.
  • Flexible skirt dipole antenna element built into an elastic shroud of hard-wearing and environment-proof plastics.
  • “Elevated feed” ½ λ-dipole antenna element – groundplane independent.
  • High gain and efficient decoupling from the portable equipment due to half-wave design.
  • 3 dB gain (typ.) compared to a ¼ λ antenna whip on the same equipment.
  • Highest quality materials in a modern “High-Tech” Design.
  • Provided with TNC(m) connector.

TYPICAL SWR CURVES

Model Product No. Frequency Add To Quote

ELF 1300/1230-TNC(m)

 140000215 1200 – 1260 MHz

ELF 1300/1270-TNC(m)

 140000216 1240 – 1300 MHz

Login required

You need to be logged in into your account to view downloadable documents.

Typical VSWR curve

ELF 1300!… TNC VSWR
