ELF 1800/…-TNC

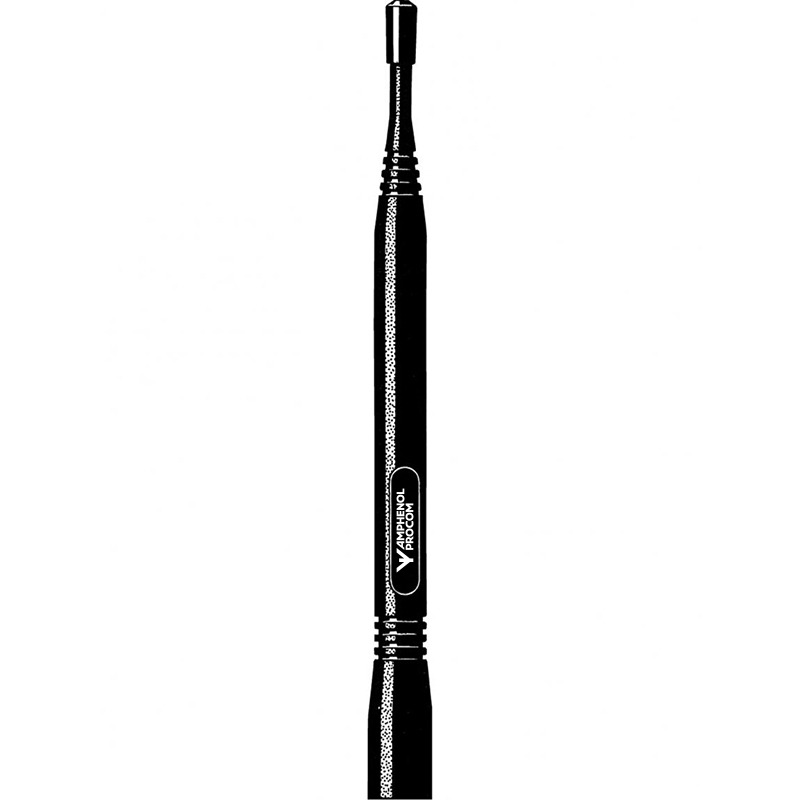

“Elevated-Feed” 1/2 λ Dipole Antenna for Portable Equipment in the 1800 MHz Band

Find Out More
View Variations
Data Sheet
CE Certification

Other Files

ELF 1800/...-TNC

Quickly identify the correct ordering code.

ELF 1800/…-TNC
Electrical
Model ELF 1800/…-TNC
Frequency Center frequency to be stated within 1700 – 2000 MHz
Antenna Type Elevated feed 1/2 λ skirt dipole antenna for portable equipment
Max. Input Power 25 W
Polarisation Vertical
Impedance 50 Ω
Gain 5 dB (compared to a ¼ λ portable antenna)
VSWR < 1.3:1 @ f. res.
Mechanical
Connection(s) TNC(m)
Materials Thermoplastic rubber
Brass
Colour Black
Historic Brand Amphenol Procom
Height Approx. 190 mm / 7.48 in.
Weight Approx. 0.03 kg / 0.07 lb.
  • Flexible skirt dipole antenna element built into an elastic shroud of hard-wearing and weather- and shockproof plastics.
  • “Elevated feed” ½ λ-dipole antenna element – groundplane independent.
  • High gain and efficient decoupling from the portable equipment due to half-wave design.
  • 5 dB gain (typ.) compared to a ¼ λ antenna whip on the same equipment.
  • Highest quality materials in a modern “High-Tech” design.
  • Delivered factory tuned to customer’s specified frequency or cellular system.
  • Provided with TNC (male) connector.

No content found

This product doesn’t have any diagrams yet.

Model Product No. FrequencyAdditional Information Add To Quote

ELF 1800/DCS-TNC

 140000272 DCS-1800/PCN DCS-1800/PCN

ELF 1800/DECT-TNC

 140000249 DECT DECT

Login required

You need to be logged in into your account to view downloadable documents.

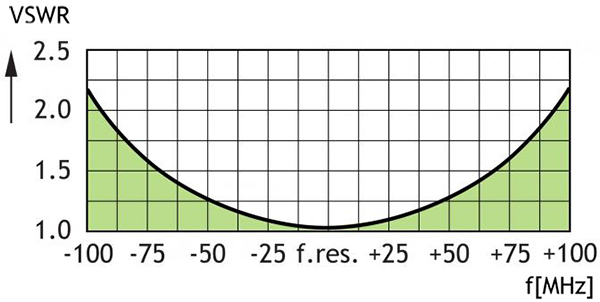

Typical VSWR curve

ELF 1800 tnc VSWR

Ordering Designations

When ordering the antenna, please state the centre frequency or the name of a cellular network.
