ELF 900/…-TNC

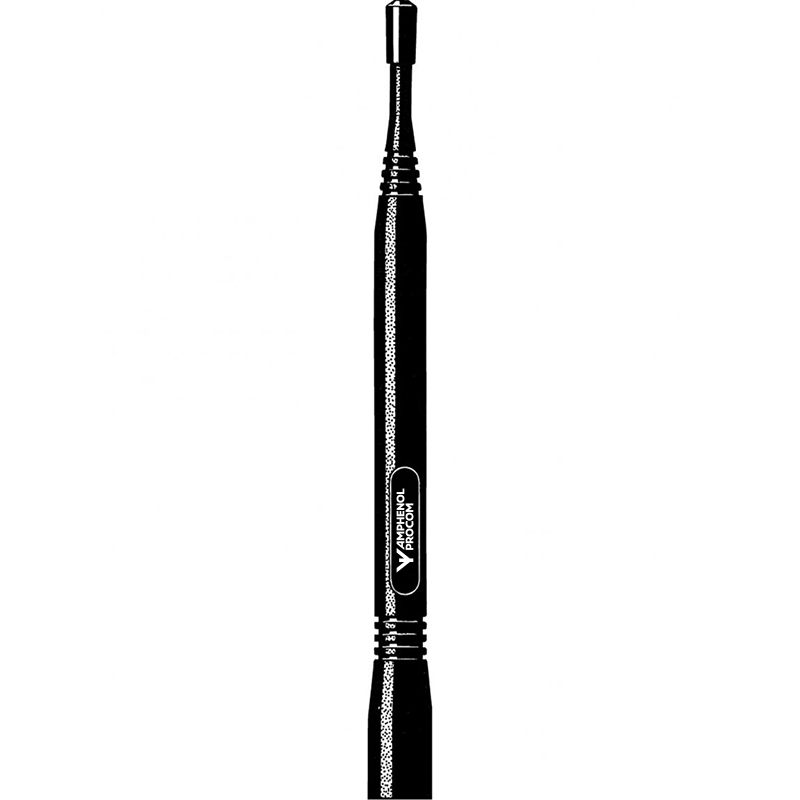

“Elevated-Feed” ½ λ dipole antenna for portable equipment in the 900 MHz band

Find Out More
View Variations
Data Sheet
CE Certification

Other Files

ELF 900/...-TNC

Quickly identify the correct ordering code.

ELF 900/…-TNC
Electrical
Model ELF 900/…-TNC
Frequency Models within 835 – 960 MHz
Antenna Type Elevated-feed ½ λ dipole
Max. Input Power 25 W
Polarisation Vertical
Impedance 50 Ω
Gain 0 dBd / 2.15 dBi (3 dB compared to a ¼ λ portable antenna)
VSWR < 1.3:1 @ f. res.
Bandwidth ≥ 70 MHz @ VSWR ≤ 2.0
Mechanical
Connection(s) TNC(m)
Materials Thermoplastic rubber
Brass
Colour Black
Historic Brand Amphenol Procom
Height Approx. 210 mm / 8.27 in.
Weight Approx. 0.04 kg / 0.09 lb.
  • Flexible skirt dipole antenna element built into an elastic shroud of hard-wearing and environment-proof plastics.
  • “Elevated feed” ½ λ dipole antenna element – groundplane independent.
  • High gain and efficient decoupling from the portable equipment due to half-wave design.
  • 3 dB gain (typ.) compared to a ¼ λ antenna whip on the same equipment.
  • Highest quality materials in a modern “High-Tech” design.
  • Delivered factory tuned to customer’s specified frequency or cellular system.
  • Provided with TNC(m) connector.

TYPICAL SWR CURVE

Model Product No. Frequency Add To Quote

ELF 900/…-TNC(m)

 140000212 850 – 960 MHz

ELF 900/870-TNC(m)

 140000208 835 – 905 MHz

ELF 900/h-TNC(m)

 140000604 880 – 960 MHz

Login required

You need to be logged in into your account to view downloadable documents.

Ordering Designations

When ordering the antenna, please state the centre frequency or the name of a cellular network.

Typical VSWR curve

ELF 900!… TNC VSWR
