FB-HD

Quickly identify the correct ordering code.

FB-HD
Electrical
Application Bracket for fixation of the top of the antennas
Mechanical
Materials POM
Historic Brand Amphenol Procom
Weight Approx. 1 kg / 2.20 lb.
Mounting On the side-mounting clamps (SMC)
  • This fixation bracket provides possibility of mounting the top of the antenna on the side-Mounting Clamp (SMC).
  • The bracket can be used to fixate e.g. CXL 70-8HD/… or
  • CXL 70-8HD/…-PT and CXL 2-5HD/…

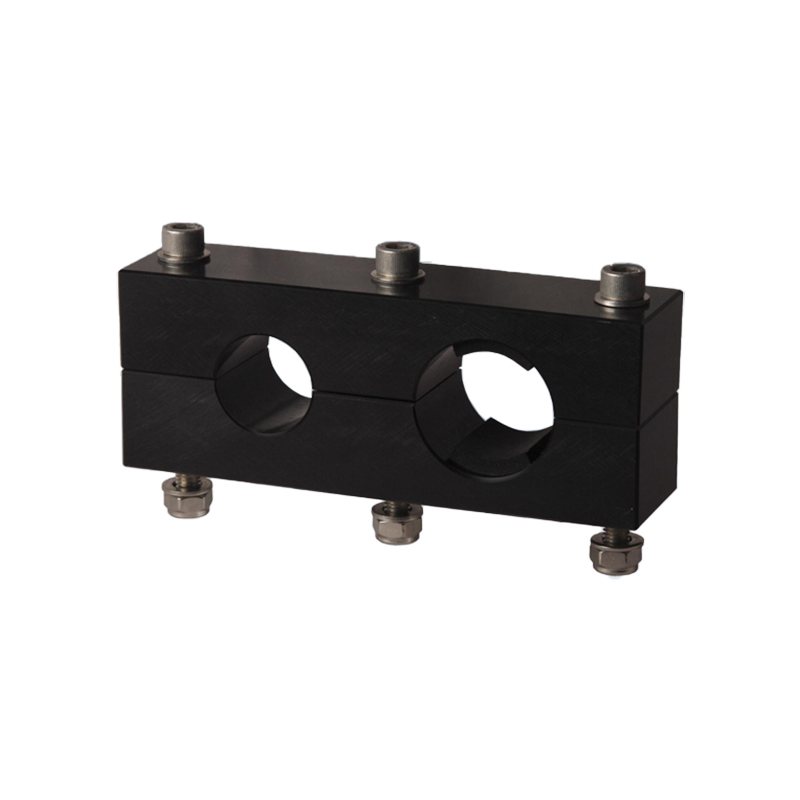

  • FB-HD consist of POM made clamps, three screws and three washers with three nuts.

No content found

This product doesn’t have any diagrams yet.

Model Product No. Additional Information Add To Quote

FB-HD/38

 100000281 Fits SMC 500/… and SMC 1000/…

FB-HD/48

 100000578 Fits SMC 2300/…

Login required

You need to be logged in into your account to view downloadable documents.

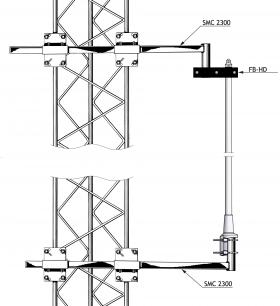

Mounting Details
*Diameter depending on model. See ordering designations.




Mounting on Side-Mounting Clamps (SMC)
