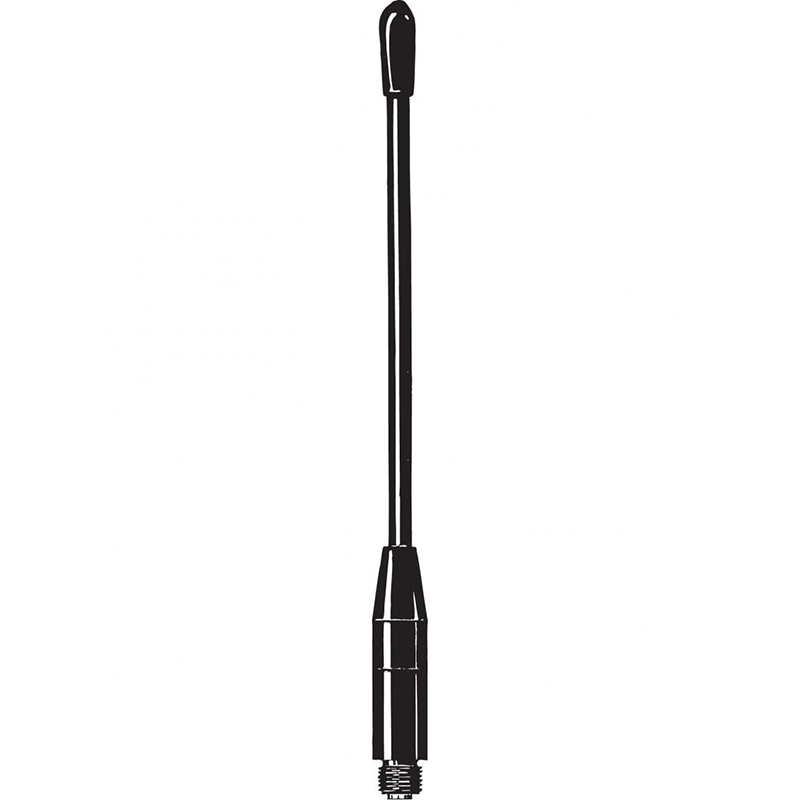

FLX 1300/…-FME

End-Fed ½ λ Dipole Antenna with Universal FME-Connection System for Portable Equipment in the 1300 MHz Band

Find Out More
View Variations
Data Sheet
CE Certification

Other Files

FLX 1300/...-FME

Quickly identify the correct ordering code.

FLX 1300/…-FME
Electrical
Model FLX 1300/…-FME
Frequency 1200 – 1300 MHz
Antenna Type End-fed ½ λ antenna for portable equipment
Max. Input Power 25 W
Polarisation Vertical
Impedance 50 Ω
Gain 0 dBd / 2.15 dBi (3 dB compared to a ¼ λ portable antenna)
VSWR < 1.3:1 @ f. res.
Bandwidth ≥ 70 MHz @ VSWR ≤ 2.0
Mechanical
Connection(s) FME(f) (Exchangeable BFME-connectors to be ordered separately)
Also available with SMA(m) connector
Materials Silicone tube over flexible steel wire
Black-chromed brass
Colour Black
Historic Brand Amphenol Procom
Height Approx. 150 mm / 5.91 in.
Weight Approx. 0.025 kg / 0.06 lb.
  • Flexible antenna made of steel wire covered with black silicone tubing.
  • End-fed ½ λ whip – groundplane independent.
  • High gain and efficient decoupling from the portable equipment due to half-wave design.
  • 3 dB gain (typ.) compared to a ¼ λ antenna whip on the same equipment.
  • Highest quality materials in a long-lasting and durable design.
  • Delivered factory tuned to customer specified frequency.
  • Provided with universal FME-connection system for optimum flexibility and easily exchangeable connectors.
  • Designed for use with the following of Procom’s line of black FME-connectors (to be ordered separately): BFME-BNC, BFME-TNC, BFME-N, BFME-MUHF, BFME-EBNC, BFME-ETNC and BFME-EMUHF.

No content found

This product doesn’t have any diagrams yet.

Model Product No. Model Add To Quote

FLX 1300/1220-FME(f)

 140000760 FLX 1300/1220-FME(f)

FLX 1300/1250-FME(f)

 140000761 FLX 1300/1250-FME(f)

FLX 1300/1280-FME(f)

 140000762 FLX 1300/1280-FME(f)

FLX 1300/1220-SMA(m)

 140000763 FLX 1300/1220-SMA(m)

FLX 1300/1250-SMA(m)

 140000764 FLX 1300/1250-SMA(m)

FLX 1300/1280-SMA(m)

 140000765 FLX 1300/1280-SMA(m)

Login required

You need to be logged in into your account to view downloadable documents.

Recommended BFME-Connectors
BFME bnc tnc n muhf ebnc etnc emuhf
(To be ordered separately)

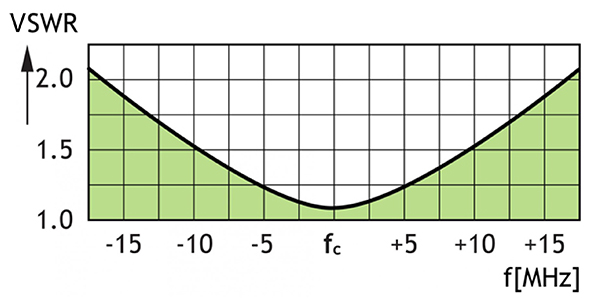

Typical VSWR curve

FLX 1300 FME VSWR

Please Note

The FLX 1300 is also available with SMA male connector, but in this case with fixed, non-exchangeable connector (not FME-connection system). Information on this special version on request.
