FLX 1812/…-FME

End-Fed ½ λ Dipole Antenna with Universal FME-Connection System for Portable Equipment in the 1800 MHz band

Find Out More
View Variations
Data Sheet
CE Certification

Other Files

FLX 1812/...-FME

Quickly identify the correct ordering code.

FLX 1812/…-FME
Electrical
Model FLX 1812/…-FME
Frequency Center frequency to be stated within
1700 – 1900 MHz
Antenna Type End-fed ½ λ antenna for portable equipment
Max. Input Power 5 W
Polarisation Vertical
Impedance 50 Ω
Gain 0 dBd / 2.5 dBi
(3 dB compared to a ¼ λ portable antenna)
VSWR < 1.3:1 @ f. res.
Bandwidth > 200 MHz @ VSWR < 2.0
Mechanical
Connection(s) FME(f) or SMA(m)
(Exchangeable BFME-connectors to be ordered separately)
Materials Silicone tube over flexible steel wire
Black-chromed brass
Colour Black
Historic Brand Amphenol Procom
Height Approx. 115 mm / 4.53 in.
Weight Approx. 0.025 kg / 0.06 lb.
  • Flexible antenna made of steel wire covered with black silicone tubing.
  • End-fed ½ λ whip – groundplane independent.
  • High gain and efficient decoupling from the portable equipment due to half-wave design.
  • 3 dB gain compared to a ¼ λ antenna whip on the same equipment.
  • Highest quality materials in a long-lasting and durable design.
  • Models available for the DCS-1800/PCN cellular system and for the DECT cordless telephone system.
  • Provided with universal FME-connection system for optimum flexibility and easily exchangeable connectors.
  • The FLX 1812 is also available with SMA(m) connector, but in this case with fixed, nonexchangeable connector (not FME-connection system).
  • Designed for use with the following of Procom’s line of black FME-connectors (to be ordered separately): BFME-BNC, BFME-TNC, BFME-N, BFME-MUHF, BFME-EBNC, BFME-ETNC and BFME-EMUHF.

No content found

This product doesn’t have any diagrams yet.

Model Product No. FrequencyAdditional Information Add To Quote

FLX 1812/DCS-FME(f)

 140000220 1710 – 1880 MHz DCS-1800/PCN cellular system

FLX 1812/DECT-FME(f)

 140000219 1880 – 1900 MHz DECT cordless telephone

FLX 1812/DCS-SMA(m)

 140000657 1710 – 1880 MHz DCS-1800/PCN cellular system

FLX 1812/DECT-SMA(m)

 140000379 1880 – 1900 MHz DECT cordless telephone

Login required

You need to be logged in into your account to view downloadable documents.

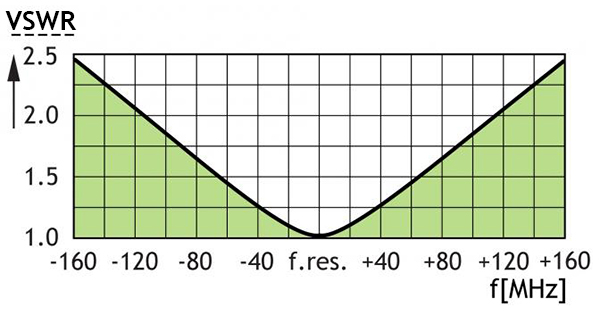

Typical VSWR curve

FLX 1812 FME VSWR

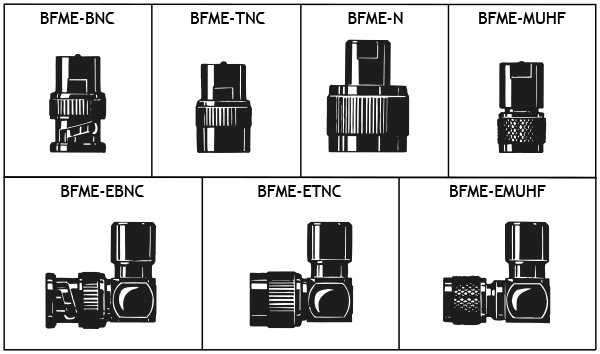

Recommended BFME-Connectors

BFME bnc tnc n muhf ebnc etnc emuhf

(To be ordered separately)

Please Note

The FLX 1812 is also available with SMA male connector, but in this case with fixed, nonexchangeable connector (not FME-connection system). Information on this special version on request.
