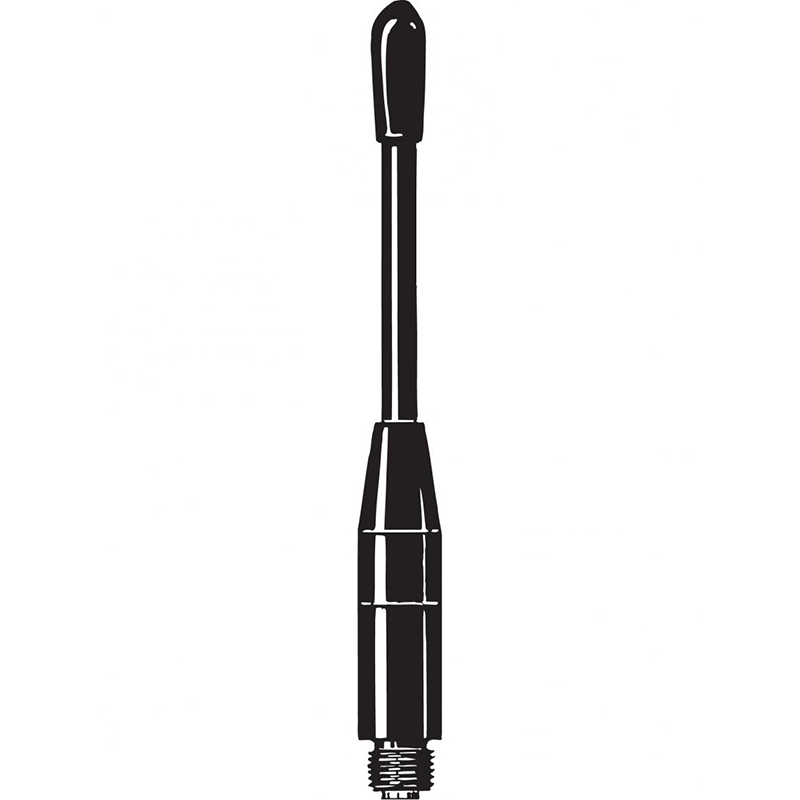

FLX 2412/…-FME

End-Fed ½ λ Dipole Antenna with Universal FME-Connection System for Portable Equipment in the 2500 MHz band

Find Out More
View Variations
Data Sheet
CE Certification

Other Files

FLX 2412/...-FME

Quickly identify the correct ordering code.

FLX 2412/…-FME
Electrical
Model FLX 2412/…-FME
Frequency To be specified within 2300 – 2500 MHz
Antenna Type End-fed ½ λ antenna for portable equipment
Max. Input Power 25 W
Polarisation Vertical
Impedance 50 Ω
Gain 0 dBd / 2.5 dBi
(3 dB compared to a ¼ λ portable antenna)
Bandwidth ≥ 100 MHz @ VSWR ≤ 2.0
Mechanical
Connection(s) FME(f) (Exchangeable BFME-connectors to be ordered separately)
Materials Silicone tube over flexible steel wire
Black-chromed brass
Colour Black
Historic Brand Amphenol Procom
Height Approx. 100 mm / 3.94 in.
Weight Approx. 0.022 kg / 0.05 lb.
  • Flexible antenna made of steel wire covered with black silicone tubing.
  • End-fed ½ λ whip – groundplane independent.
  • High gain and efficient decoupling from the portable equipment due to half-wave design.
  • 3 dB gain compared to a ¼ λ antenna whip on the same equipment.
  • Highest quality materials in a long-lasting and durable design.
  • Models available for the ISM, RLAN, WLAN systems.
  • Provided with universal FME-connection system for optimum flexibility and easily exchangeable connectors.
  • Designed for use with the following of Procom’s line of black FME-connectors
    (to be ordered separately): BFME-BNC, BFME-TNC, BFME-N, BFME-MUHF, BFME-EBNC, BFME-ETNC and BFME-EMUHF.

No content found

This product doesn’t have any diagrams yet.

Model Product No. Frequency Add To Quote

FLX 2412/2350-FME(f)

 140000766 2300-2400 MHz

FLX 2412/2400-FME(f)

 140000767 2350-2450 MHz

FLX 2412/2450-FME(f)

 140000768 2400-2500 MHz

Login required

You need to be logged in into your account to view downloadable documents.

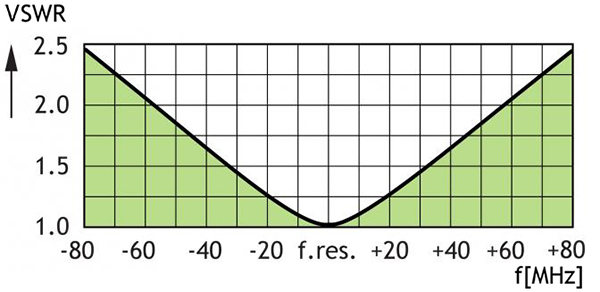

Typical VSWR curve

FLX 2412 FME VSWR

Recommended BFME-Connectors

BFME bnc tnc n muhf ebnc etnc emuhf

(To be ordered separately)
