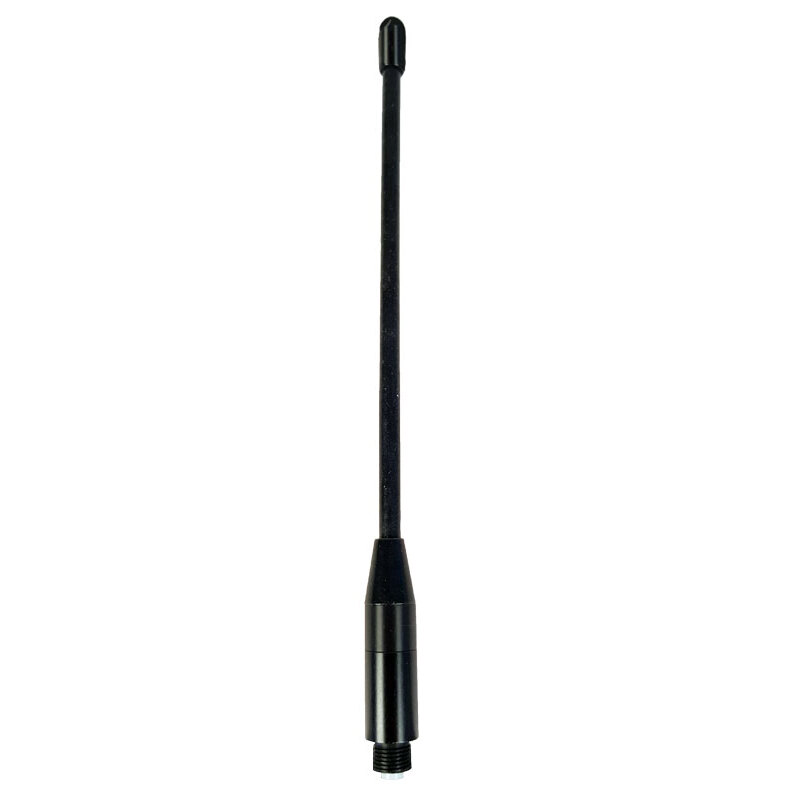

FLX 400/900-FME

End-Fed ½ λ Whip on 900 MHz and ¼ λ Whip on 400 MHz for Portable Equipment

Find Out More
Data Sheet
CE Certification

Other Files

FLX 400/900-FME
Electrical
Model FLX 400/900-FME
Frequency 400 MHz band : 270 – 450 MHz
900 MHz band : 830 – 920 MHz
Antenna Type End-fed ½ λ on 900 MHz and ¼ λ on 400 MHz antenna for portable equipment
Max. Input Power 25 W
Polarisation Vertical
Impedance 50 Ω
Gain 0 dBd / 2.15 dBi (3 dB compared to a ¼ λ portable antenna)
VSWR < 1.3:1 @ f. res. for 900 MHz band
Bandwidth 400 MHz : @ 180 MHz @ VSWR @ 5.0:1
900 MHz : @ 90 MHz @ VSWR @ 2.0:1
Mechanical
Connection(s) FME(f)
Materials Silicone tube over flexible steel wire
Black-chromed brass
Colour Black
Historic Brand Amphenol Procom
Height Approx. 180 mm / 7.09 in.
Weight Approx. 0.03 kg / 0.07 lb.
  • Flexible antenna made of steel wire covered with black silicone tubing.
  • End-fed ½ λ whip on 900 MHz, and ¼ λ whip on 400 MHz.
  • High gain and efficient decoupling from the portable equipment due to half-wave design.
  • 3 dB gain (typ.) compared to a ¼ λ antenna whip on the same equipment.
  • Highest quality materials in a long-lasting and durable design.
  • Provided with FME(f) connector.

TYPICAL SWR CURVE

Model Product No. Add To Quote
End-Fed ½ λ Whip on 900 MHz and ¼ λ Whip on 400 MHz for Portable Equipment 140000438

Login required

You need to be logged in into your account to view downloadable documents.

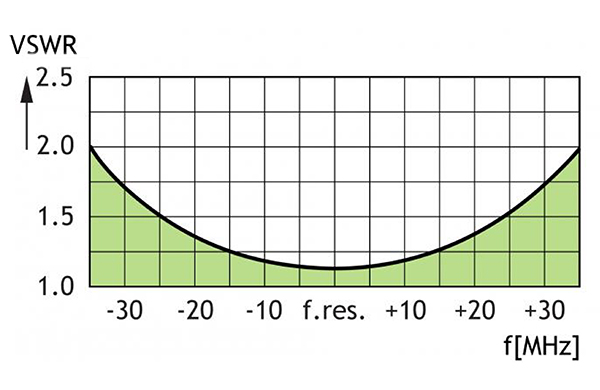

Typical VSWR curve

FLX 400!900 FME VSWR
