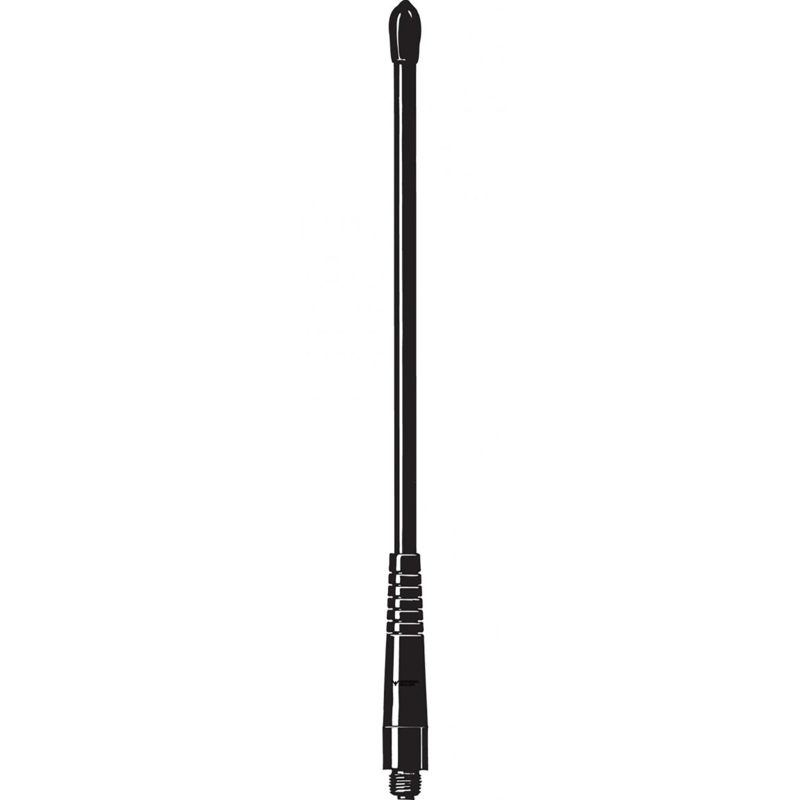

FLX 70/…-FME

Antenna with Universal FME-Connection System for portable Equipment in the 70 cm Band

Find Out More
View Variations
Data Sheet
CE Certification

Other Files

FLX 70/...-FME

Quickly identify the correct ordering code.

FLX 70/…-FME
Electrical
Model FLX 70/…-FME
Frequency 70 cm band covered by three models
Antenna Type Antenna for portable equipment
Max. Input Power 200 W
Polarisation Vertical
Impedance 50 Ω
Gain 0 dB (compared to a ¼ λ portable antenna)
VSWR < 2.0:1 when mounted directly on portable equipment
Bandwidth ≥ 50 MHz @ VSWR ≤ 2.5
Environmental
Operating temperature range -30 °C to +70 °C
Mechanical
Connection(s) FME(f) (Exchangeable BFME-connectors to be ordered separately)
Also models with SMA(m) connector
Materials Silicone tube over steel wire
Weather- and shockproof plastics
Colour Black
Historic Brand Amphenol Procom
Height Approx. 200 mm / 7.87 in. (dep. on type)
Weight Approx. 0.025 kg / 0.06 lb.
  • Flexible antenna made of steel wire covered with silicone tube.
  • Full-size ¼ λ whip.
  • Highest quality materials.
  • Delivered factory tuned and tested to ensure minimum VSWR.
  • Provided with universal FME-connection system for optimum flexibility and easily exchangeable connectors.
  • Designed for use with the following of Procoms line of black FME-connectors (to be ordered separately): BFME-UHF, BFME-BNC, BFME-TNC, BFME-N, BFME-MUHF, BFME-EBNC, BFME-ETNC and BFME-EMUHF.

No content found

This product doesn’t have any diagrams yet.

Model Product No. Frequency Add To Quote

FLX 70/s-FME(f)

 140000166 380 – 430 MHz

FLX 70/l-FME(f)

 140000170 400 – 450 MHz

FLX 70/h-FME(f)

 140000159 420 – 470 MHz

FLX 70/s-SMA(m)

 140000408 380 – 430 MHz

FLX 70/l-SMA(m)

 140000294 400 – 450 MHz

FLX 70/h-SMA(m)

 140000309 420 – 470 MHz

Login required

You need to be logged in into your account to view downloadable documents.

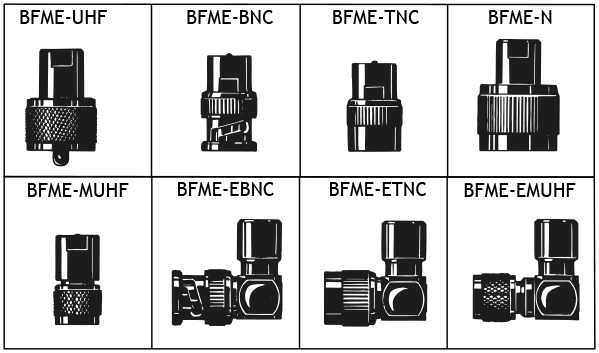

Recommended BFME-Connectors

BFME uhf bnc tnc n muhf ebnc etnc emuhf
(To be ordered separately)

Please Note

The FLX 70 is also available with SMA male connector and different thread studs, but in this case with fixed, non-exchangeable connector (not FME? connection system). Information on these special versions on request
