FLX 70/…-GP 300

Flexible Antenna for Portable Equipment in the 70 cm Band

Find Out More
View Variations
Data Sheet
CE Certification

Other Files

FLX 70/...-GP 300

Quickly identify the correct ordering code.

FLX 70/…-GP 300
Electrical
Model FLX 70/…-GP 300
Frequency 70 cm band covered by three models
Antenna Type Antenna for portable equipment
Max. Input Power 200 W
Polarisation Vertical
Impedance 50 Ω
Gain 0 dB (compared to a ¼ λ portable antenna)
VSWR < 2.0:1 when mounted directly on portable equipment
Bandwidth ≥ 50 MHz @ VSWR ≤ 2.0
Mechanical
Connection(s) 1/4″-32 UNEF
Materials Silicone tube over steel wire
Weather- and shockproof plastics
Cu-nite brass
Colour Black
Historic Brand Amphenol Procom
Height Approx. 200 mm / 7.87 in. (dep. on type)
Weight Approx. 0.025 kg / 0.06 lb.

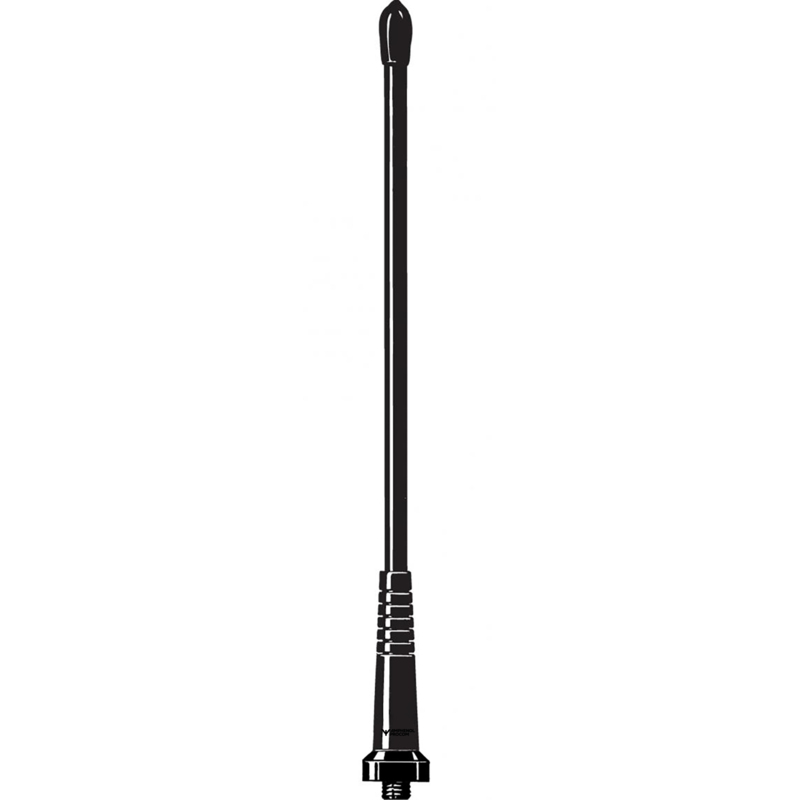

  • Flexible antenna made of steel wire covered with silicone tube.
  • Full-size ¼ λ whip.
  • Highest quality materials.
  • Delivered factory tuned and tested to ensure minimum VSWR.
  • Especially designed for Motorola GP 300, GP 344, GP 360 and GP 388 (450 MHz band) etc.

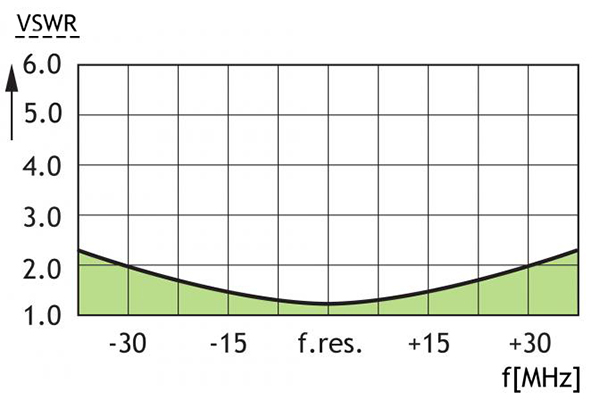

Typical VSWR curve

Model Product No. Frequency Add To Quote

FLX 70/s-GP 300

 140000374 380 – 430 MHz

FLX 70/l-GP 300

 140000375 400 – 450 MHz

FLX 70/h-GP 300

 140000163 420 – 470 MHz
