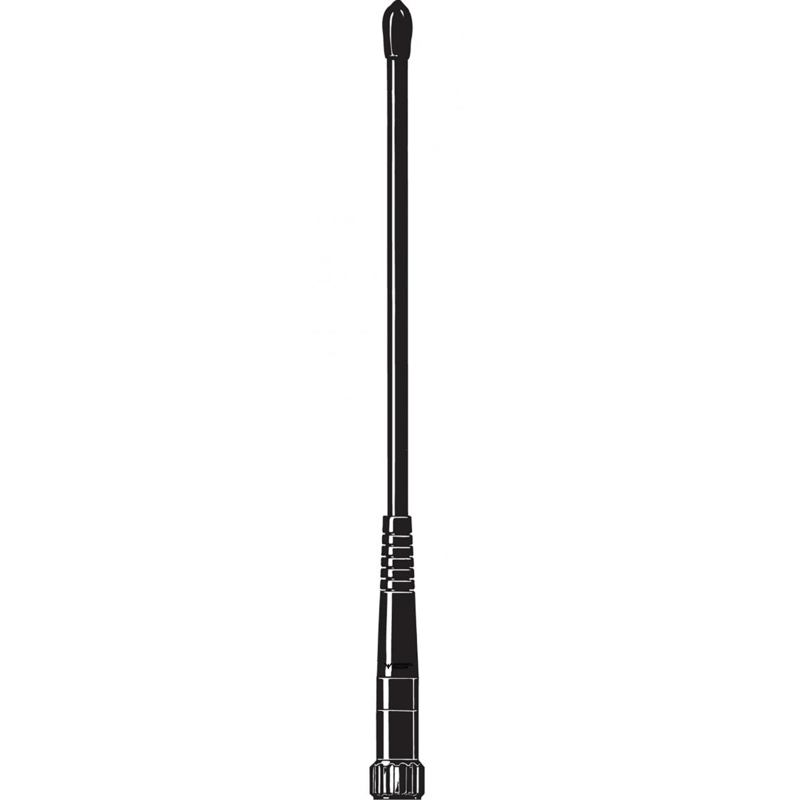

Flexible Antenna for ICOM Portable Equipment in the 70 cm Band
Find Out MoreOther Files
| Electrical | |
| Model | FLX 70/…-IC-F61 |
|---|---|
| Frequency | 70 cm band covered by three models |
| Antenna Type | Antenna for portable equipment |
| Max. Input Power | 200 W |
| Polarisation | Vertical |
| Impedance | 50 Ω |
| Gain | 0 dB (compared to a ¼ λ portable antenna) |
| VSWR | < 2.0:1 when mounted directly on portable equipment |
| Bandwidth | ≥ 50 MHz @ VSWR ≤ 2.0 |
| Mechanical | |
| Connection(s) | SMA(m) special for IC-F61 |
|---|---|
| Materials | Silicone tube over steel wire Weather- and shockproof plastics Black-chromed brass |
| Colour | Black |
| Historic Brand | Amphenol Procom |
| Height | Approx. 200 mm / 7.87 in. (dep. on type) |
| Weight | ApProx. 0.025 kg / 0.06 lb. |

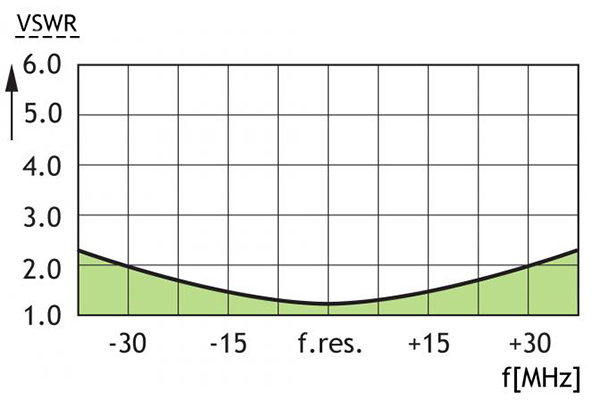

TYPICAL SWR CURVE
| Model | Product No. | Frequency | Add To Quote |
|---|---|---|---|
|
FLX 70/s-IC-F61 |
140000168 | 380 – 430 MHz | |
|
FLX 70/l-IC-F61 |
140000376 | 400 – 450 MHz | |
|
FLX 70/h-IC-F61 |
140000167 | 420 – 470 MHz |
