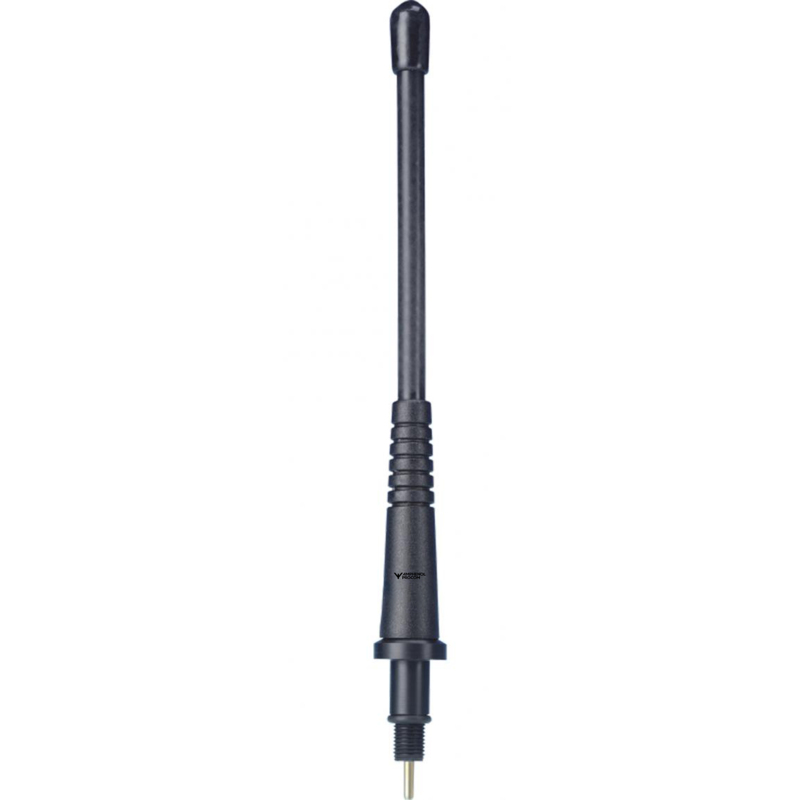

Flexible Antenna with connector specially designed for Siemens TETRA Portable Radios
Find Out MoreOther Files
| Electrical | |
| Model | FLX 70/TETRA-EADS |
|---|---|
| Frequency | TETRA band 380 – 410 MHz |
| Antenna Type | Antenna for portable equipment |
| Max. Input Power | 200 W |
| Polarisation | Vertical |
| Impedance | 50 Ω |
| Gain | 0 dB (compared to a ¼ λ portable antenna) |
| VSWR | < 2.0:1 when mounted directly on portable equipment |
| Bandwidth | ≥ 60 MHz @ VSWR ≤ 2.0 |
| Mechanical | |
| Connection(s) | “EADS” |
|---|---|
| Materials | Silicone tube over steel wire Weather- and shockproof plastics |
| Colour | Black |
| Historic Brand | Amphenol Procom |
| Height | Approx. 155 mm / 6.10 in. |
| Weight | Approx. 0.018 kg / 0.04 lb. |

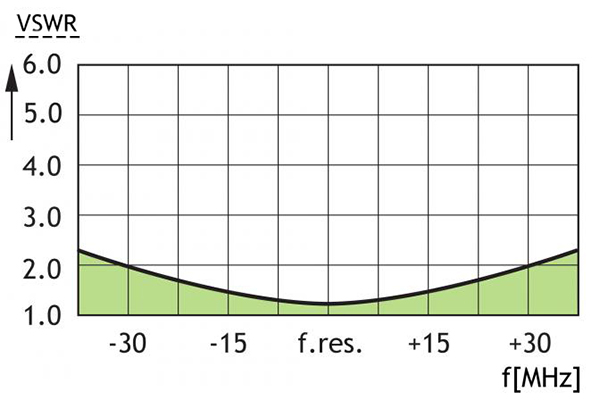

TYPICAL SWR CURVE
| Model | Product No. | Add To Quote |
|---|---|---|
| Flexible Antenna with connector specially designed for Siemens TETRA Portable Radios | 140000158 |
