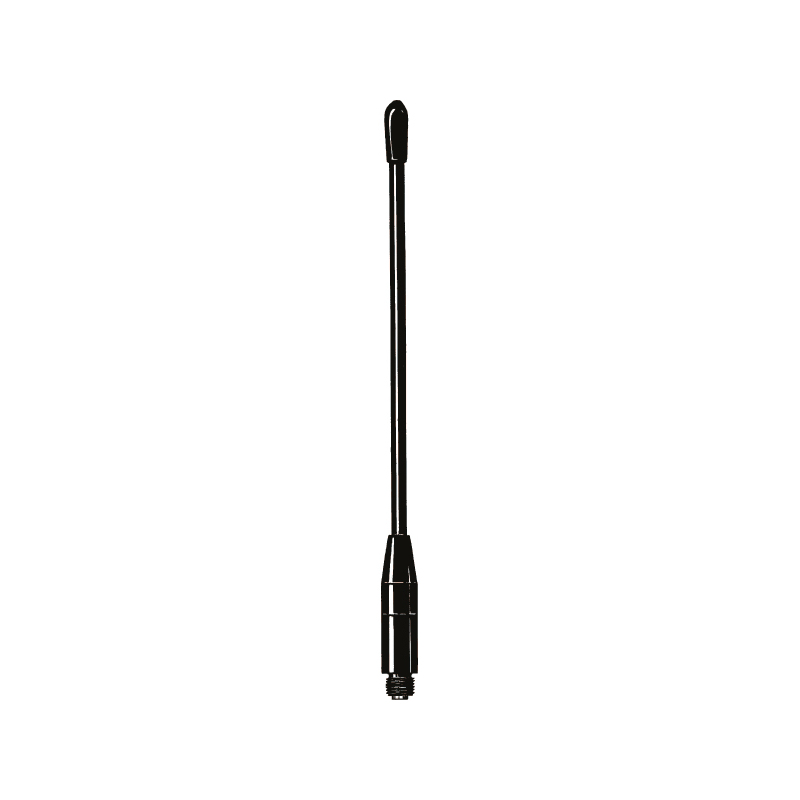

FLX 900/…-FME

End-Fed ½ λ Dipole Antenna with Universal FME-Connection System for Portable Equipment in the 900 MHz

Find Out More
View Variations
Data Sheet
CE Certification

Other Files

FLX 900/...-FME

Quickly identify the correct ordering code.

FLX 900/…-FME
Electrical
Model FLX 900/…-FME
Frequency 900 MHz band (820 – 960 MHz)
Antenna Type End-fed ½ λ antenna for portable equipment
Max. Input Power 25 W
Polarisation Vertical
Impedance 50 Ω
Gain 0 dBd / 2.15 dBi (3 dB compared to a ¼ λ portable antenna)
VSWR < 1.3:1 @ f. res.
Bandwidth ≥ 70 MHz @ VSWR ≤ 2.0
Mechanical
Connection(s) FME(f) (Exchangeable BFME-connectors to be ordered separately)
Materials Silicone tube over flexible steel wire
Black-chromed brass
Colour Black
Historic Brand Amphenol Procom
Height Approx. 170 mm / 6.69 in.
Weight 0.025 kg / 0.06 lb.
  • Flexible antenna made of steel wire covered with black silicone tubing.
  • End-fed ½ λ whip – groundplane independent.
  • High gain and efficient decoupling from the portable equipment due to half-wave design.
  • 3 dB gain (typ.) compared to a ¼ λ antenna whip on the same equipment.
  • Highest quality materials in a long-lasting and durable design.
  • Delivered factory tuned to customer specified frequency or cellular system.
  • Provided with universal FME-connection system for optimum flexibility and easily exchangeable connectors.
  • Designed for use with the following of Procom’s line of black FME-connectors (to be ordered separately): BFME-BNC, BFME-TNC, BFME-N, BFME-MUHF, BFME-EBNC, BFME-ETNC and BFME-EMUHF.

No content found

This product doesn’t have any diagrams yet.

Model Product No. Frequency Add To Quote

FLX 900/855-FME(f)

 140000259 820 – 890 MHz

FLX 900/870-FME(f)

 140000260 835 – 905 MHz

FLX 900/925-FME(f)

 140000263 890 – 960 MHz

FLX 900/855-SMA(m)

 140000264 820 – 890 MHz

FLX 900/870-SMA(m)

 140000268 835 – 905 MHz

FLX 900/925-SMA(m)

 140000269 890 – 960 MHz

Login required

You need to be logged in into your account to view downloadable documents.

Recommended BFME-Connectors

(To be ordered separately)

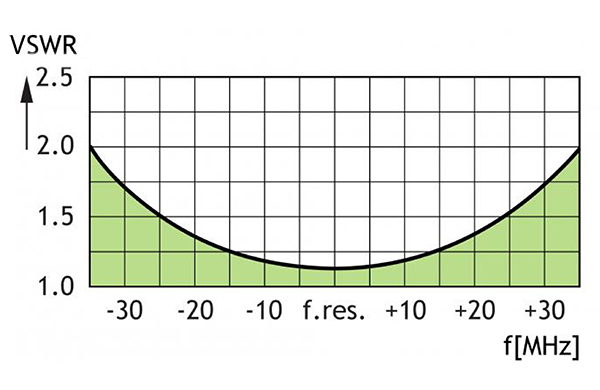

Typical VSWR curve

FLX 900 FME VSWR

Please Note

The FLX 900 is also available with SMA male connector, but in this case with fixed, non-exchangeable connector (not FME-connection system). Information on this special version on request.
