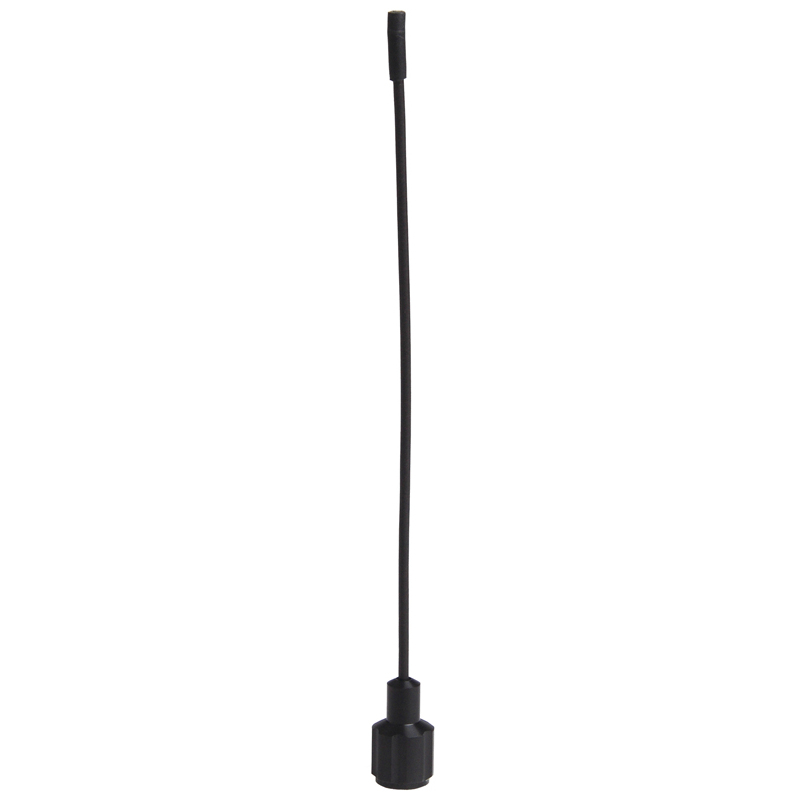

FLX-W 70/…-SMA-STP8038

Flexible Antenna for Sepura Portable Equipment in the 70 cm Band

Find Out More
View Variations
Data Sheet
CE Certification

Other Files

FLX-W 70/...-SMA-STP8038

Quickly identify the correct ordering code.

FLX-W 70/…-SMA-STP8038
Electrical
Model FLX-W 70/…-SMA-STP8038
Frequency 70 cm band covered by three models
Antenna Type Antenna for portable equipment
Max. Input Power 25 W
Polarisation Vertical
Impedance 50 Ω
Gain 0 dB (compared to a ¼ λ portable antenna)
VSWR < 2.0:1 when mounted directly on portable equipment
Mechanical
Connection(s) SMA (male) special for Sepura STP8038
Materials Shrink tube over RG 178 wire 50Ω
Colour Black
Historic Brand Procom
Height 170 mm / 6.69 in.
Weight 0.0055 kg / 0.01 lb
  • Flexible antenna made of RG 178 wire covered with shrink tube.
  • Full-size ¼ λ whip.
  • Highest quality materials.
  • Delivered factory tuned and tested to ensure minimum SWR.
  • Especially designed for Sepura Radio STP8038 (450 MHz band).

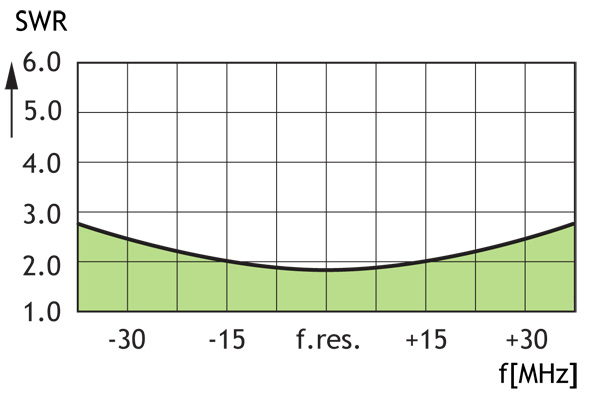

TYPICAL SWR CURVE

Model Product No. Frequency Add To Quote

FLX-W 70/405-SMA-STP8038

 140000586 380 – 430 MHz

FLX-W 70/387.5-SMA-STP8038

 140000600 362.5 – 412 MHz

FLX-W 70/395-SMA-STP8038

 140000601 370 – 420 MHz

Login required

You need to be logged in into your account to view downloadable documents.

Typical VSWR curve
