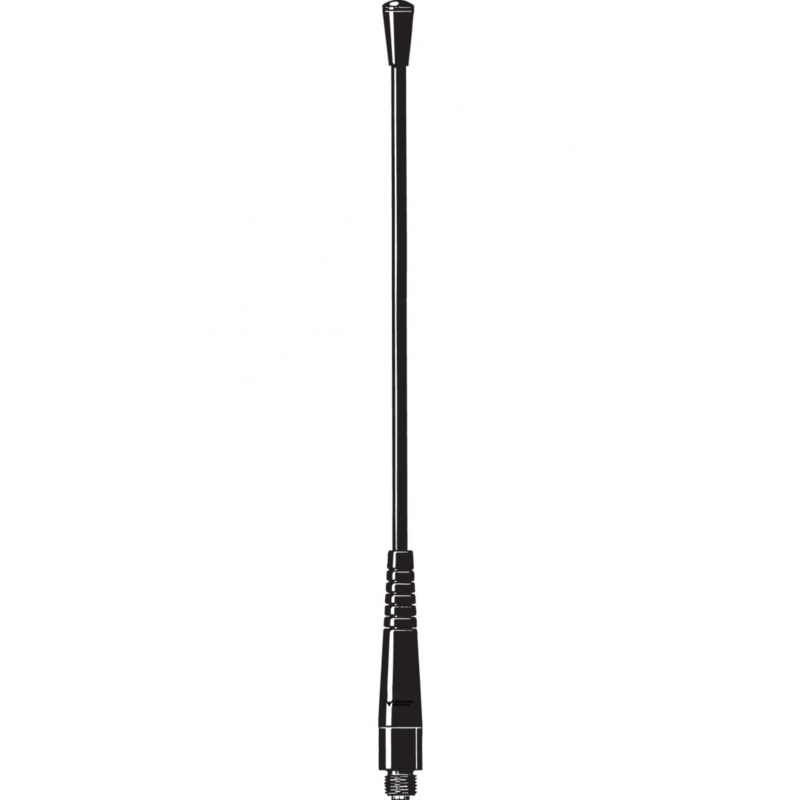

“StraightFlex” Antenna with Universal FME-Connection System for Portable Equipment in the 200 MHz Band
Find Out MoreOther Files
| Electrical | |
| Model | FSP 1.5/…-FME |
|---|---|
| Frequency | 175 – 225 MHz covered by three models |
| Antenna Type | Antenna for portable equipment |
| Max. Input Power | 100 W |
| Polarisation | Vertical |
| Impedance | 50 Ω |
| Gain | 0 dB (compared to a ¼ λ portable antenna) |
| VSWR | < 2.0:1 when mounted directly on portable equipment |
| Bandwidth | ≤ 25 MHz @ VSWR ≤ 2.5 |
| Mechanical | |
| Connection(s) | FME(f) (Exchangeable BFME-connectors to be ordered separately) |
|---|---|
| Materials | Polyethylene covered flexible steel wire Black POM |
| Colour | Black |
| Historic Brand | Amphenol Procom |
| Height | Approx. 420 mm / 16.54 in. |
| Weight | Approx. 0.03 kg / 0.07 lb. |
This product doesn’t have any diagrams yet.
| Model | Product No. | Frequency | Add To Quote |
|---|---|---|---|
|
FSP 1.5/l-FME(f) |
140000151 | 175 – 200 MHz | |
|
FSP 1.5/m-FME(f) |
140000152 | 190 – 215 MHz | |
|
FSP 1.5/h-FME(f) |
140000150 | 200 – 225 MHz |
You need to be logged in into your account to view downloadable documents.
The FSP 1.5 is also available with SMA male connector and different thread studs, but in this case with fixed, non-exchangeable connector (not FME-connection system). Information on these special versions on request.
