FSP 1300/…-FME

End-Fed ½ λ Dipole Antenna with Universal FME-Connection System for Portable Equipment in the 1300 MHz

Find Out More
View Variations
Data Sheet
CE Certification

Other Files

FSP 1300/...-FME

Quickly identify the correct ordering code.

FSP 1300/…-FME
Electrical
Model FSP 1300/…-FME
Frequency 1200 – 1300 MHz
Antenna Type End-fed ½ λ antenna for portable equipment
Max. Input Power 25 W
Polarisation Vertical
Impedance 50 Ω
Gain 0 dBd / 2.15 dBi (3 dB compared to a ¼ λ portable antenna)
VSWR < 1.3:1 @ f. res.
Bandwidth ≥ 70 MHz @ VSWR ≤ 2.0
Mechanical
Connection(s) FME(f) (Exchangeable BFME-connectors to be ordered separately)
Materials Polyethylene covered flexible steel wire
Black-chromed brass
Colour Black
Historic Brand Amphenol Procom
Height Approx. 150 mm / 5.91 in.
Weight Approx. 0.025 kg / 0.06 lb.
  • Highly flexible polyethylene covered StraightFlex steel wire (self-straightening).
  • Full size, end-fed ½ λ antenna whip – groundplane independent.
  • High gain and efficient decoupling from the portable equipment due to half-wave design.
  • 3 dB gain (typ.) compared to a ¼ λ antenna whip on the same equipment.
  • Highest quality materials in a slender and elegant design.
  • Delivered factory tuned to customer specified frequency.
  • Provided with universal FME-connection system for optimum flexibility and easily exchangeable connectors.
  • Designed for use with the following of Procom’s line of black FME-connectors (to be ordered separately): BFME-BNC, BFME-TNC, BFME-N, BFME-MUHF, BFME-EBNC, BFME-ETNC and BFME-EMUHF.

No content found

This product doesn’t have any diagrams yet.

Model Product No. Frequency Add To Quote

FSP 1300/1235-FME(f)

 140000239 1200 – 1270 MHz

FSP 1300/1245-FME(f)

 140000242 1210 – 1280 MHz

FSP 1300/1255-FME(f)

 140000244 1220 – 1290 MHz

FSP 1300/1265-FME(f)

 140000245 1230 – 1300 MHz

Login required

You need to be logged in into your account to view downloadable documents.

Recommended BFME-Connectors

BFME bnc tnc n muhf ebnc etnc emuhf

(To be ordered separately)

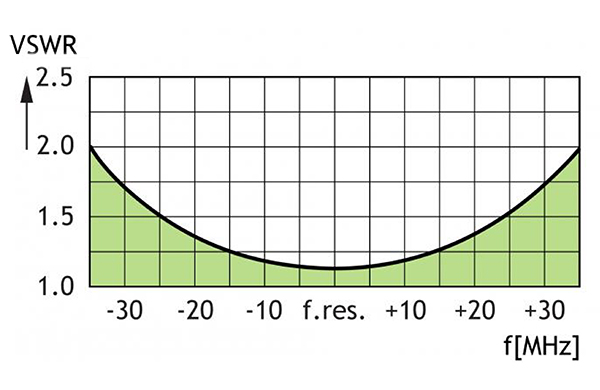

Typical VSWR curve

FSP 1300 FME VSWR

Ordering Designations

When ordering the antenna, please state the centre frequency, e.g. FSP 1300/1296-FME for centre frequency 1296 MHz.
