FSP 2/…-DP4400

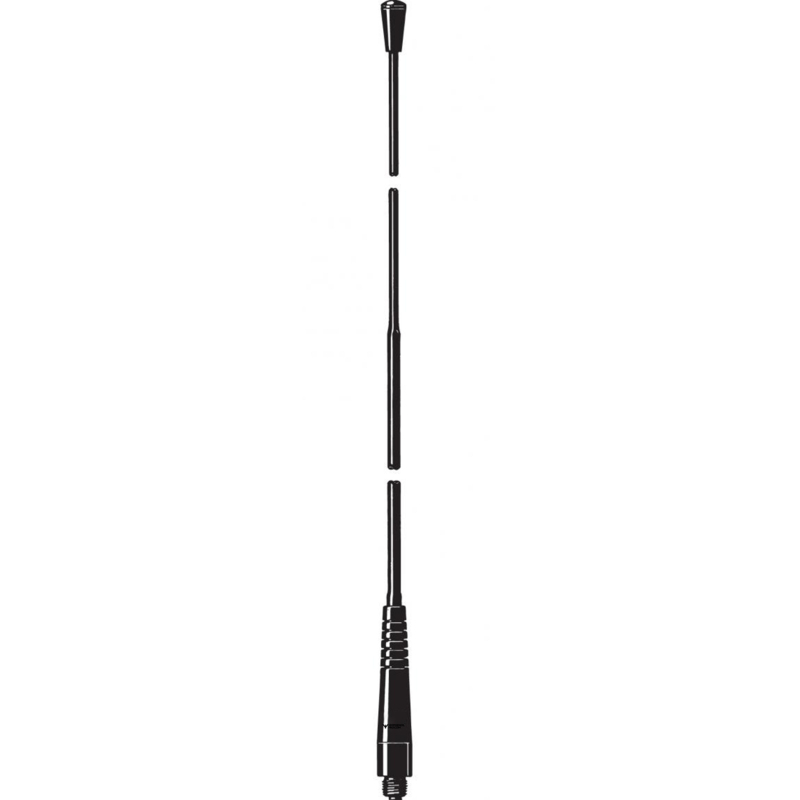

“StraightFlex” Antenna for Portable Equipment in the 2 m Band

Find Out More
Data Sheet
CE Certification

Other Files

FSP 2/...-DP4400
Electrical
Model FSP 2/h-DP4400
Frequency 155 – 175 MHz
Antenna Type Antenna for portable equipment
Max. Input Power 100 W
Polarisation Vertical
Impedance 50 Ω
Gain 0 dB (compared to a ¼ λ portable antenna)
VSWR < 2.0:1 when mounted directly on portable equipment
Bandwidth ≥ 20 MHz @ VSWR ≤ 2.5
Mechanical
Connection(s) Connector for DP4000 series (Motorola)
Materials Polyethylene covered flexible steel wire
Weather- and shockproof plastics
Cu-nite brass
Colour Black
Historic Brand Amphenol Procom
Height Approx. 440 mm / 17.32 in.
Weight Approx. 0.035 kg / 0.08 lb.
    • Highly flexible, polyethylene covered StraightFlex steel wire.
    • Full size ¼ λ antenna whip.
    • Highest quality materials in an elegant and slender design.
    • Delivered factory tuned and tested to ensure minimum VSWR and optimum performance.
    • Especially designed for Motorola DP4000 series (160 MHz band).

No content found

This product doesn’t have any diagrams yet.

Model Product No. Add To Quote
“StraightFlex” Antenna for Portable Equipment in the 2 m Band 140000649

Login required

You need to be logged in into your account to view downloadable documents.

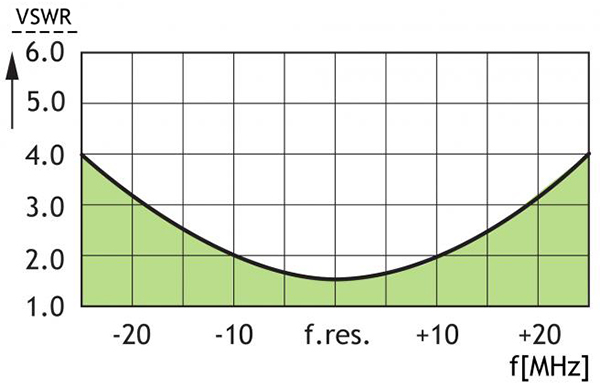

Typical VSWR curve

FSP 2!... DP4400 VSWR
