FSP 2/…-FME

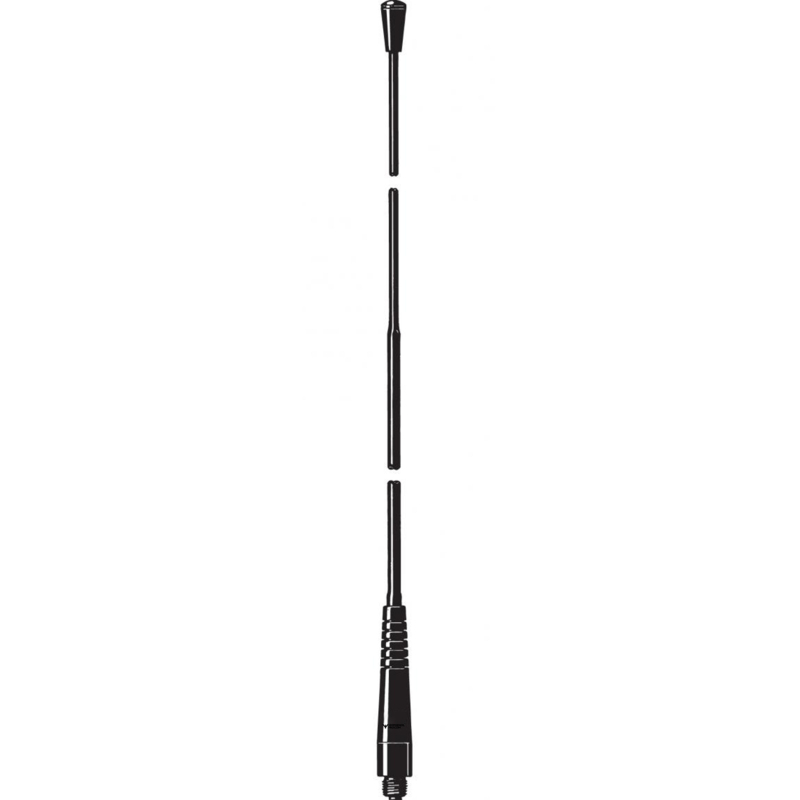

“StraightFlex” Antenna with Universal FME-Connection System for Portable Equipment in the 2 m Band

Find Out More
View Variations
Data Sheet
CE Certification

Other Files

FSP 2/...-FME

Quickly identify the correct ordering code.

FSP 2/…-FME
Electrical
Model FSP 2/…-FME
Frequency 2 m band covered by two models
Antenna Type Antenna for portable equipment
Max. Input Power 100 W
Polarisation Vertical
Impedance 50 Ω
Gain 0 dB (compared to a ¼ λ portable antenna)
VSWR < 2.0:1 when mounted directly on portable equipment
Bandwidth ≥ 20 MHz @ VSWR ≤ 2.5
Mechanical
Connection(s) FME(f) (Exchangeable BFME-connectors to be ordered separately)
Materials Polyethylene covered flexible steel wire
Black POM
Colour Black
Historic Brand Amphenol Procom
Height Approx. 490 mm / 19.29 in.
Weight Approx. 0.035 kg / 0.08 lb.
  • Highly flexible, polyethylene covered StraightFlex steel wire.
  • Full size ¼ λ antenna whip.
  • Highest quality materials in an elegant and slender design.
  • Delivered factory tuned and tested to ensure minimum VSWR and optimum performance.
  • Provided with universal FME-connection system for optimum flexibility and easily exchangeable connectors.
  • Designed for use with the following of Procoms line of black FME-connectors (to be ordered separately): BFME-UHF, BFME-BNC, BFME-TNC, BFME-N, BFME-EBNC and BFME-ETNC.

No content found

This product doesn’t have any diagrams yet.

Model Product No. Frequency Add To Quote

FSP 2/l-FME(f)

 140000113 144 – 164 MHz

FSP 2/h-FME(f)

 140000095 155 – 175 MHz

Login required

You need to be logged in into your account to view downloadable documents.

Recommended BFME-Connectors
BFME uhf bnc tnc n ebnc etnc
(To be ordered separately)
Please Note

The FSP 2 is also available with SMA male connector and different thread studs, but in this case with fixed, non-exchangeable connector (not FMEconnection system). Information on these special versions on request.
