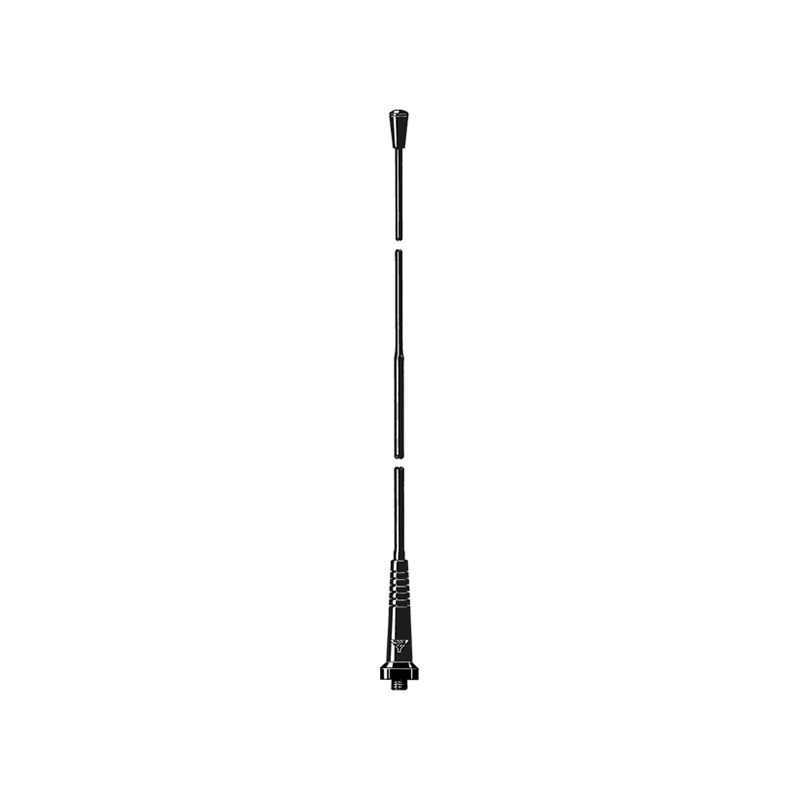

FSP 2/…-GP 300

“StraightFlex” Antenna for Portable Equipment in the 2 m Band

Find Out More
View Variations
Data Sheet
CE Certification

Other Files

FSP 2/...-GP 300

Quickly identify the correct ordering code.

FSP 2/…-GP 300
Electrical
Model FSP 2/…-GP 300
Frequency 2 m band covered by two models
Antenna Type Antenna for portable equipment
Max. Input Power 100 W
Polarisation Vertical
Impedance 50 Ω
Gain 0 dB (compared to a ¼ λ portable antenna)
VSWR < 2.0:1 when mounted directly on portable equipment
Bandwidth ≥ 20 MHz @ VSWR ≤ 2.5
Mechanical
Materials Polyethylene covered flexible steel wire
Weather- and shockproof plastics
Cu-nite brass
Colour Black
Height Approx. 480 mm / 18.90 in.
Weight Approx. 0.035 kg / 0.08 lb.
  • Highly flexible, polyethylene covered StraightFlex steel wire.
  • Full size ¼ λ antenna whip.
  • Highest quality materials in an elegant and slender design.
  • Delivered factory tuned and tested to ensure minimum VSWR and optimum performance.
  • Especially designed for Motorola GP 300, GP 320, GP 340, GP 344, GP 360, GP 380 and GP 388 (150 MHz band) etc.

No content found

This product doesn’t have any diagrams yet.

Model Product No. Frequency Add To Quote

FSP 2/l-GP 300

 140000107 144 – 164 MHz

FSP 2/h-GP 300

 140000099 155 – 175 MHz

Login required

You need to be logged in into your account to view downloadable documents.

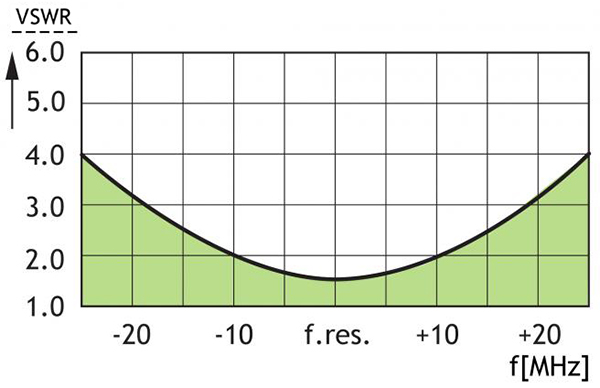

Typical VSWR curve

FSP 2!... GP 300 VSWR
