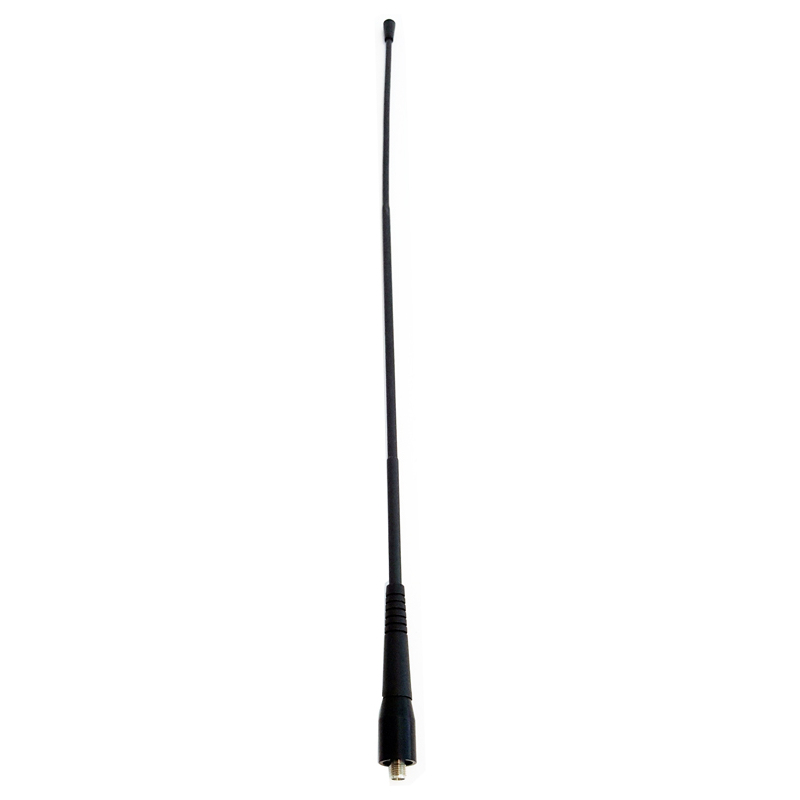

FSP 2/h-PD5

“StraightFlex” Antenna with SMA(f) connector for HYTERA Portable Equipment in the 2 m Band

Find Out More
Data Sheet
CE Certification

Other Files

FSP 2/h-PD5
Electrical
Model FSP 2/h-PD5
Frequency 155 – 175 MHz
Antenna Type ¼ λ antenna for portable equipment
Max. Input Power 100 W
Polarisation Vertical
Impedance 50 Ω
Gain 0 dB (equal to a ¼ λ portable antenna)
VSWR < 2 @ fc when mounted directly on portable equipment
Bandwidth ≥ 20 MHz @ VSWR ≤ 2.5
Mechanical
Connection(s) SMA(f) designed to PD5 serie
Materials Polyethylene covered flexible steel wire
Black POM
Colour Black
Historic Brand Procom
Height Approx. 440 mm / 17.32 in.
Weight Approx. 0.038 kg / 0.08 lb.
  • Highly flexible, polyethylene covered StraightFlex steel wire.
  • Full size ¼ λ antenna whip.
  • Highest quality materials in an elegant and slender design.
  • Delivered factory tuned and tested to ensure minimum VSWR and optimum performance.
  • Designed for portable HYTERA Radio PD505 (SMA-female)

No content found

This product doesn’t have any diagrams yet.

Model Product No. Add To Quote
“StraightFlex” Antenna with SMA(f) connector for HYTERA Portable Equipment in the 2 m Band 140000661

Login required

You need to be logged in into your account to view downloadable documents.

Complete Assembly

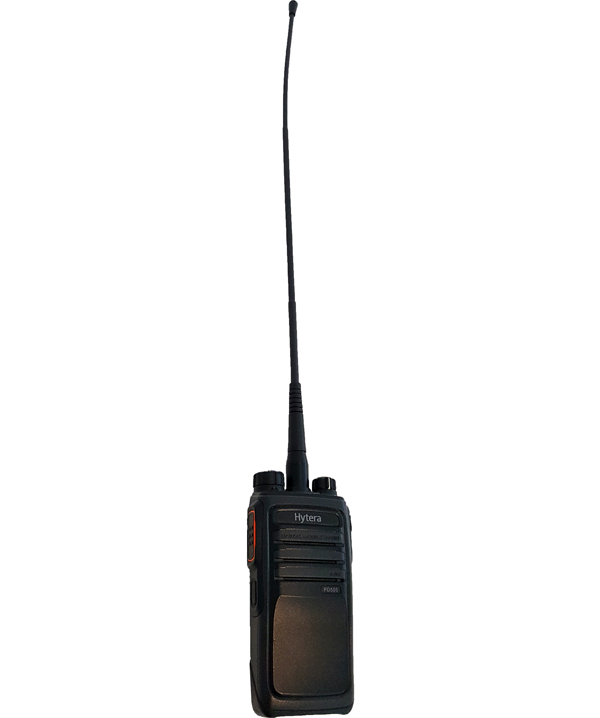

  • Portable antenna FSP 2/h-PD5, mounted on HYTERA Radio PD505.
    (HYTERA Radio is not included.)
