FSP 2/...-M-DP3601
Electrical
Model FSP 2/h-M-DP3601
Frequency 2 m band covered by two models
Antenna Type Antenna for portable equipment
Max. Input Power 100 W
Polarisation Vertical
Impedance 50 Ω
Gain 0 dB (compared to a ¼ λ portable antenna)
VSWR < 2.0:1 when mounted directly on portable equipment
Mechanical
Connection(s) Connector for DP3601 (Motorola)
Materials Polyethylene covered flexible steel wire
Weather- and shockproof plastics
Cu-nite brass
Colour Black
Historic Brand Amphenol Procom
Height Approx. 500 mm / 19.69 in.
Weight Approx. 0.035 kg / 0.08 lb.
  • Highly flexible, polyethylene covered StraightFlex steel wire.
  • Full size ¼ λ antenna whip.
  • Highest quality materials in an elegant and slender design.
  • Delivered factory tuned and tested to ensure minimum VSWR and optimum performance.
  • Especially designed for Motorola M-DP3601 (150 MHz band).

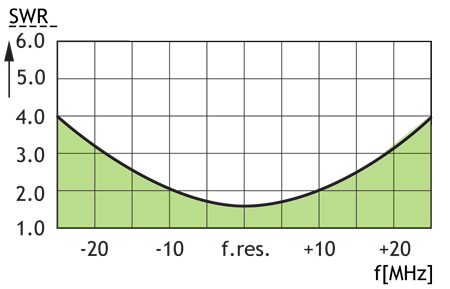

TYPICAL RESPONSE CURVE

Model Product No. Add To Quote
“StraightFlex” Antenna for Portable Equipment in the 2 m Band 140000519
