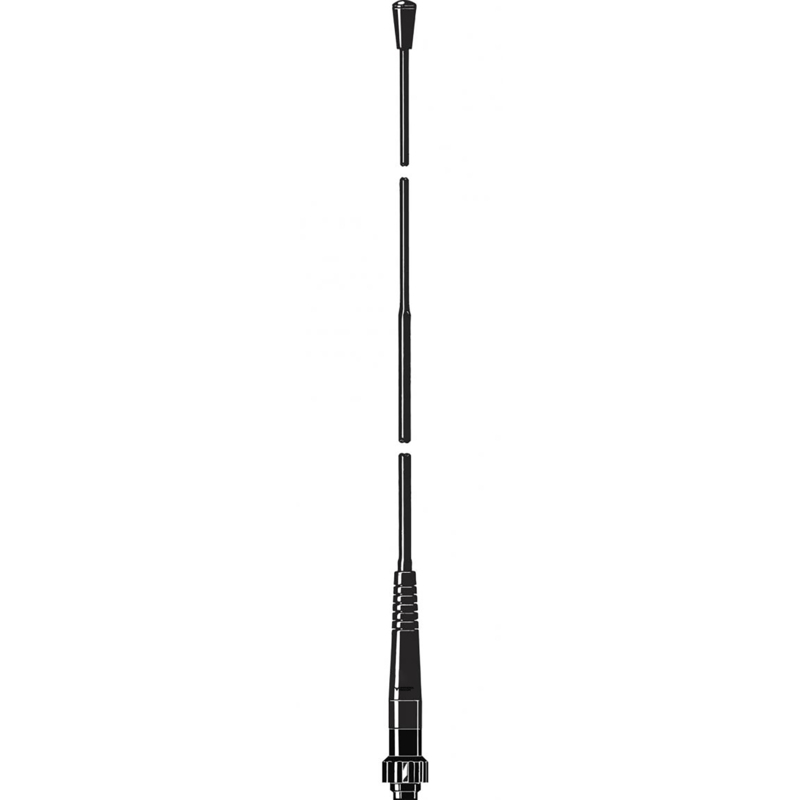

FSP 2/…-SMA/TAIT

“StraightFlex” Antenna for TAIT Portable Equipment in the 2 m Band

Find Out More
View Variations
Data Sheet
CE Certification

Other Files

FSP 2/...-SMA/TAIT

Quickly identify the correct ordering code.

FSP 2/…-SMA/TAIT
Electrical
Model FSP 2/…-SMA/TAIT
Frequency 2 m band covered by 2 models
Antenna Type Antenna for portable equipment
Max. Input Power 100 W
Polarisation Vertical
Impedance 50 Ω
Gain 0 dB (compared to a ¼ λ portable antenna)
VSWR < 2.0:1 when mounted directly on portable equipment
Bandwidth ≥ 20 MHz @ VSWR ≤ 2.5
Mechanical
Connection(s) SMA(m) special for TAIT
Materials Polyethylene-covered flexible steel wire
Black-chromed brass
Colour Black
Historic Brand Amphenol Procom
Height Approx. 560 mm / 22.05 in.
Weight Approx. 0.035 kg / 0.08 lb.
  • Highly flexible, polyethylene-covered StraightFlex steel wire.
  • Full size ¼ λ antenna whip.
  • Highest quality materials in an elegant and slender design.
  • Delivered factory tuned and tested to ensure minimum VSWR and optimum performance.
  • Especially designed for TAIT portable radios (SMA-male).

No content found

This product doesn’t have any diagrams yet.

Model Product No. Frequency Add To Quote

FSP 2/l-SMA/TAIT

 140000413 144 – 164 MHz

FSP 2/h-SMA/TAIT

 140000412 155 – 175 MHz
