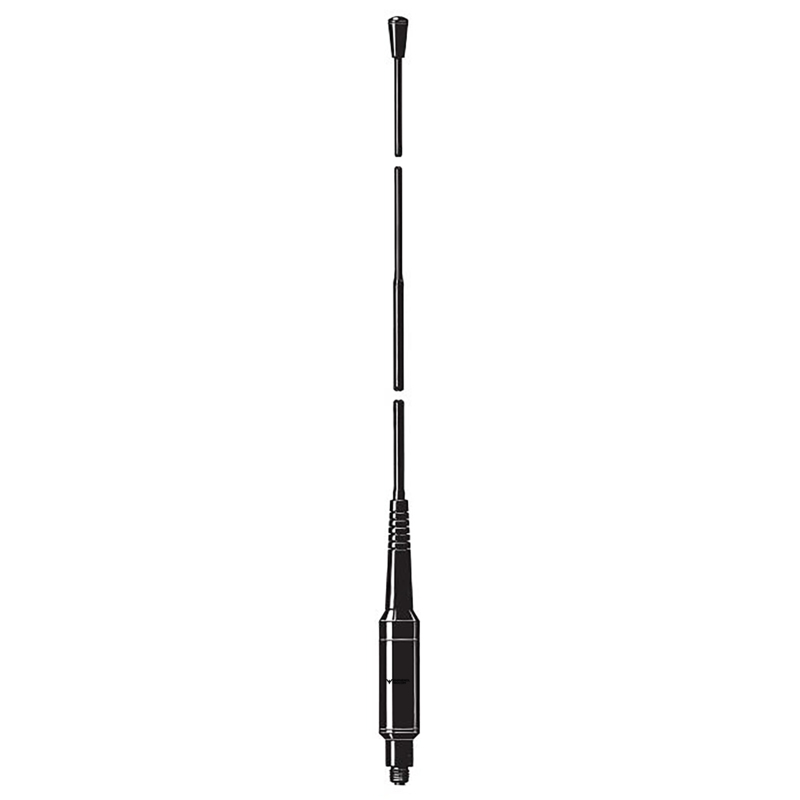

FSP 3/…-FME

“StraightFlex” Antenna with Universal FME-Connection System for Portable Equipment in the 3 m Band

Find Out More
Data Sheet
CE Certification

Other Files

FSP 3/...-FME
Electrical
Model FSP 3/…-FME
Frequency 118 – 137 MHz
Antenna Type Shortened ¼ λ antenna for portable equipment
Max. Input Power 25 W
Polarisation Vertical
Impedance 50 Ω
Gain Approx. -3 dB (compared to a ¼ λ portable antenna on the same equipment)
VSWR < 2.0:1 when mounted directly on portable equipment
Mechanical
Connection(s) FME(f) (Exchangeable BFME-connectors to be ordered separately)
Materials Polyethylene covered flexible steel wire
Black-chromed brass
Colour Black
Historic Brand Amphenol Procom
Height Approx. 500 mm / 19.69 in.
Weight Approx. 0.07 kg / 0.15 lb.
  • Highly flexible, polyethylene covered StraightFlex steel wire.
  • Shortened ¼ λ antenna whip yields an acceptable mechanical length.
  • Highest quality materials in an elegant and slender design.
  • Delivered factory tuned and tested to ensure minimum VSWR and optimum performance.
  • Provided with universal FME-connection system for optimum flexibility and easily exchangeable connectors.
  • Designed for use with the following of Procoms line of black FME-connectors (to be ordered separately): BFME-UHF, BFME-BNC, BFME-TNC and BFME-N.

No content found

This product doesn’t have any diagrams yet.

Model Product No. Add To Quote
“StraightFlex” Antenna with Universal FME-Connection System for Portable Equipment in the 3 m Band 140000809

Login required

You need to be logged in into your account to view downloadable documents.

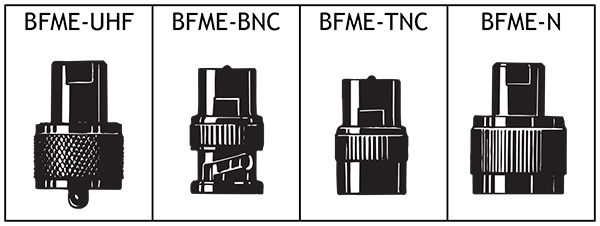

Recommended BFME-Connectors
FSP 3 FME Connectors
(To be ordered separately)
Please Note

The FSP 3 is also available with different thread studs, but in this case with fixed, non-exchangeable connector (not FME-connection system). Information on these special versions on request.
