FSP 70 1/4/…-IC-F61

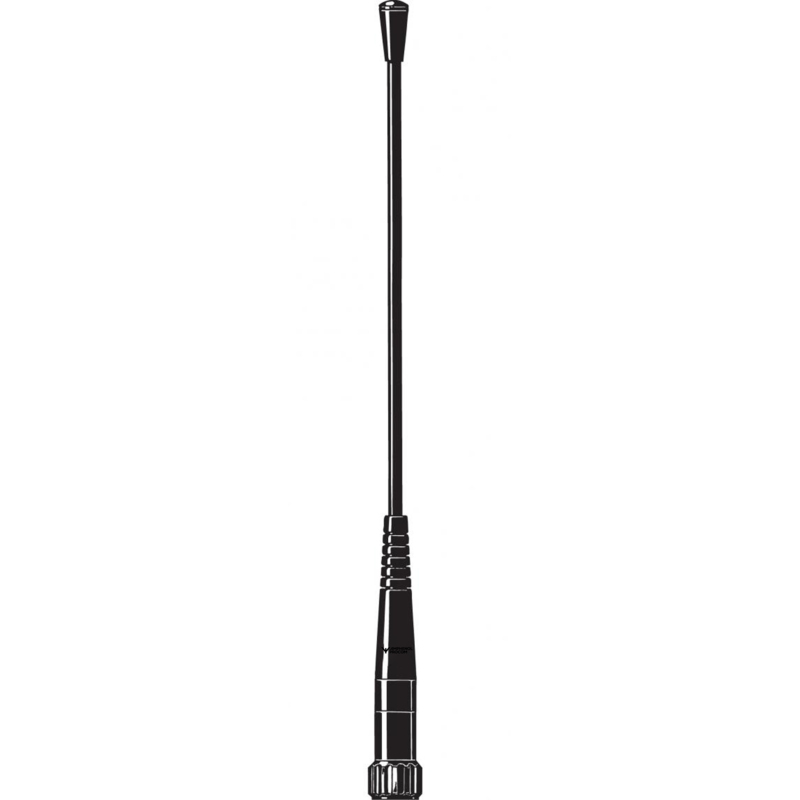

“StraightFlex” Antenna for ICOM Portable Equipment in the 70 cm Band

Find Out More
View Variations
Data Sheet
CE Certification

Other Files

FSP 70 1/4/...-IC-F61

Quickly identify the correct ordering code.

FSP 70 1/4/…-IC-F61
Electrical
Model FSP 70 1/4/…-IC-F61
Frequency 70 cm band covered by three models
Antenna Type Antenna for portable equipment
Max. Input Power 100 W
Polarisation Vertical
Impedance 50 Ω
Gain 0 dB (compared to a ¼ λ portable antenna)
VSWR < 2.0:1 when mounted directly on portable equipment
Bandwidth ≥ 50 MHz @ VSWR ≤ 2.0
Mechanical
Connection(s) SMA(m) special for IC-F61
Materials Polyethylene covered flexible steel wire
Weather- and shockproof plastics
Black-chromed brass
Colour Black
Historic Brand Amphenol Procom
Height Approx. 200 mm / 7.87 in. (dep. on type)
Weight Approx. 0.015 kg / 0.03 lb.
  • Highly flexible, polyethylene covered with StraightFlex steel wire.
  • Full-size ¼ λ whip.
  • Highest quality materials in an elegant design.
  • Delivered factory tuned and tested to ensure minimum VSWR.
  • Especially designed for ICOM IC-F61 (450 MHz band).

TYPICAL SWR CURVE

Model Product No. Frequency Add To Quote

FSP 70 1/4/s-IC-F61

 140000174 380 – 430 MHz

FSP 70 1/4/l-IC-F61

 140000372 400 – 450 MHz

FSP 70 1/4/h-IC-F61

 140000172 420 – 470 MHz

Login required

You need to be logged in into your account to view downloadable documents.

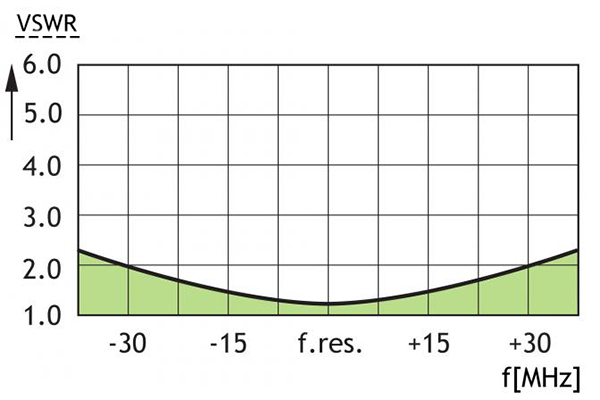

Typical VSWR curve

FSP 70 1!4!... IC F61 VSWR
