FSP 70/395-STP9000

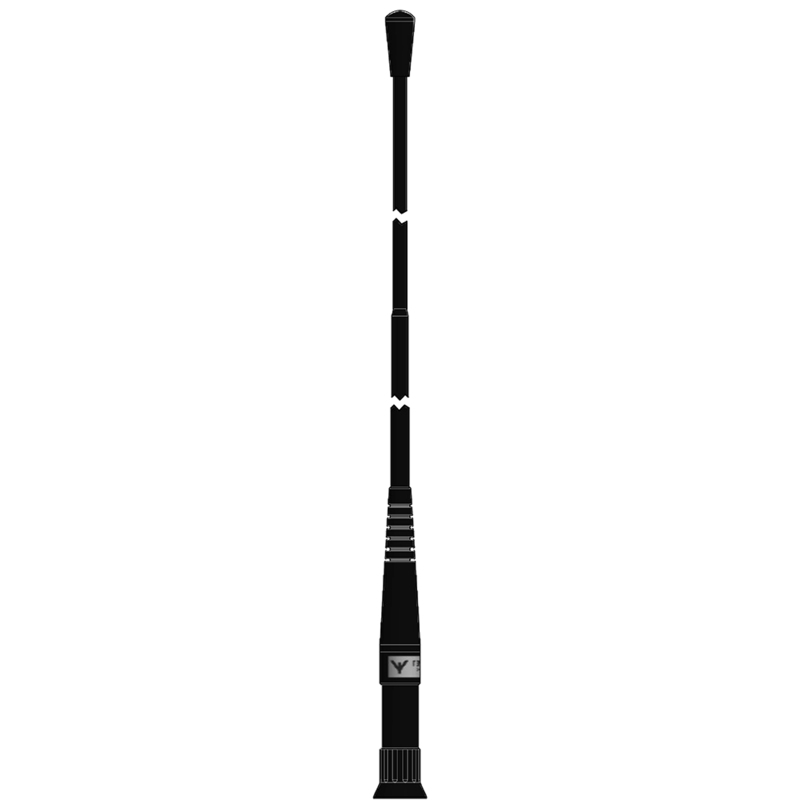

End-Fed ½ λ Dipole Antenna with SMA connector

Find Out More
Data Sheet
CE Certification

Other Files

FSP 70/395-STP9000
Electrical
Model FSP 70/395-STP9000
Frequency 380 – 410 MHz
Antenna Type Antenna for portable equipment
Max. Input Power 25 W
Polarisation Vertical
Impedance 50 Ω
Gain 5 dB (compared to a ¼ λ portable antenna)
VSWR < 1.5:1 @ f. res.
Bandwidth ≤ 30 MHz @ VSWR ≤ 2.5:1
Mechanical
Connection(s) SMA(m) connector designed to fit Sepura STP9000-serie.
Materials Polyethylene covered flexible steel wire
Black-chromed brass
Colour Black
Historic Brand Amphenol Procom
Height Approx. 400 mm / 15.75 in.
Weight Approx. 0.05 kg / 0.11 lb.
  • Suitable for the Sepura STP9000 radio series.
  • Highly flexible polyethylene covered StraightFlex steel wire (self-straightening).
  • Full-size, end-fed ½ λ antenna whip.
  • High gain and efficient decoupling from the portable equipment.
  • 5 dB gain (typ.) compared to a ¼ λ antenna whip on the same equipment.
  • Highest quality materials in an elegant design.
  • Delivered factory tuned and tested to ensure minimum VSWR and optimum performance.

No content found

This product doesn’t have any diagrams yet.

Model Product No. Add To Quote
End-Fed ½ λ Dipole Antenna with SMA connector 140000699

Login required

You need to be logged in into your account to view downloadable documents.

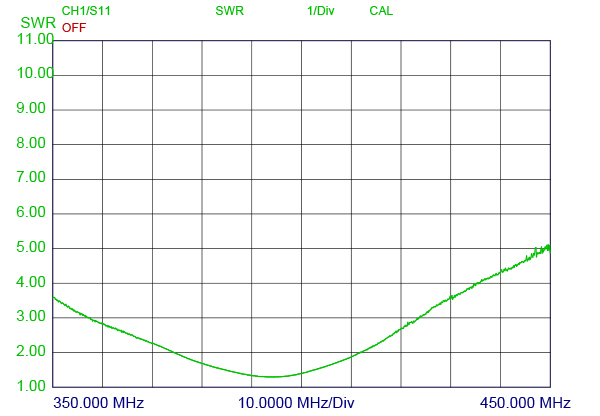

Typical VSWR Curve

FSP70 395 STP9000 SWR curve
