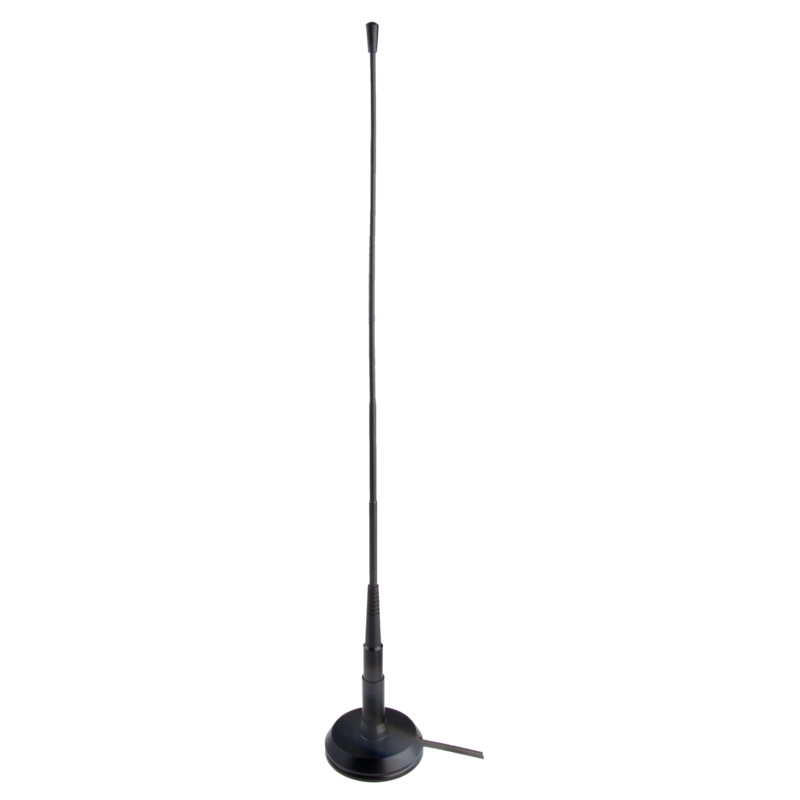

FSP 70/TETRA-DESK STAND

End-Fed ½ λ Dipole Antenna for Portable Equipment in TETRA Band

Find Out More
Data Sheet
CE Certification

Other Files

FSP 70/TETRA-DESK STAND
Electrical
Model FSP 70/TETRA-DESK STAND
Frequency TETRA (380 – 410 MHz) other frequencies on request
Antenna Type Antenna for portable equipment
Max. Input Power 25 W
Polarisation Vertical
Impedance 50 Ω
Gain 0 dB (2.15 dBi) (compared to ½ λ dipole)
VSWR < 1.3:1 @ f. res.
Mechanical
Connection(s) 4 m RG 58 low loss cable with FME (female) connector
Materials Polyethylene covered flexible steel wire
Black-chromed brass
Colour Black
Historic Brand Amphenol Procom
Height Approx. 485 mm / 19.09 in.
Weight Approx. 0.36 kg / 0.79 lb.
  • Highly flexible polyethylene covered StraightFlex steel wire (self-straightening).
  • Full-size, end-fed ½ λ antenna whip.
  • High gain and efficient decoupling from the portable equipment.
  • 0 / 2.15 dBi gain compared to a base station antenna.
  • Highest quality materials in an elegant design.
  • Delivered factory tuned and tested to ensure minimum VSWR and optimum performance.
  • Provided with 4 m cable with FME connector.
  • The unit is special designed to have optimum antennaperformance on temporary sites, compared to a quarterwave whip.

No content found

This product doesn’t have any diagrams yet.

Model Product No. Add To Quote
End-Fed ½ λ Dipole Antenna for Portable Equipment in TETRA Band 140000401

Login required

You need to be logged in into your account to view downloadable documents.

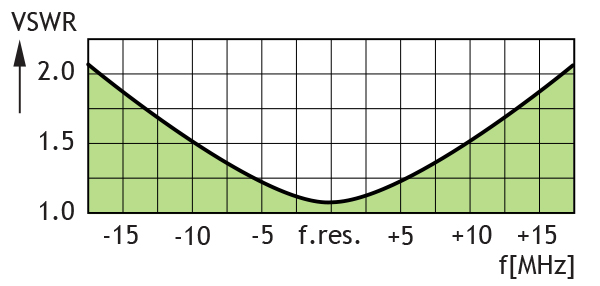

Typical VSWR Curve

FSP 70!TETRA DESKSTAND VSWR GB

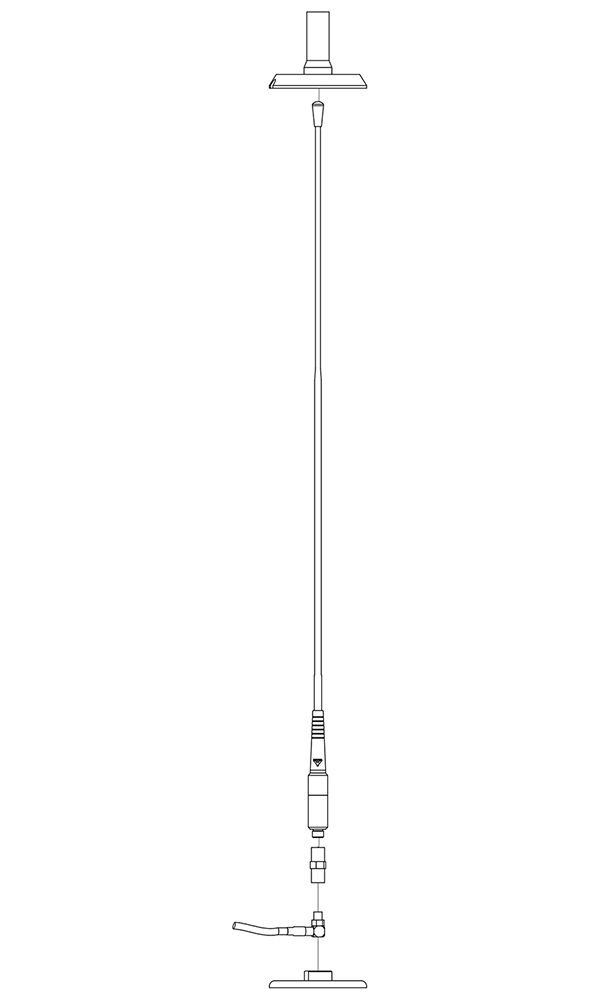

Assembly Instruction

FSP 70!TETRA DESKSTAND samle
