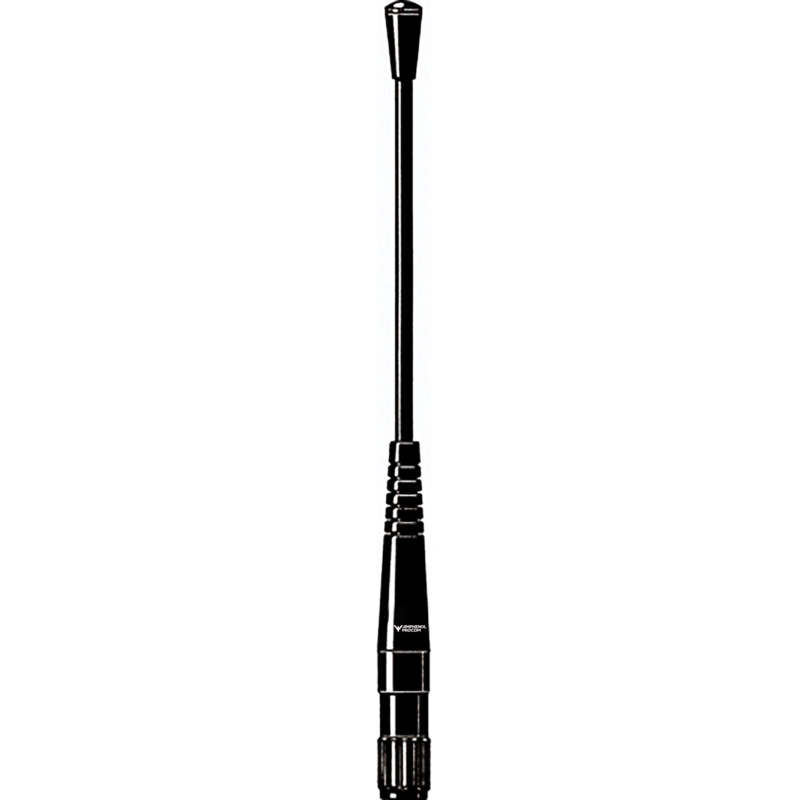

FSP 900/…-SMA

End-Fed ½ λ Dipole Antenna for Portable Equipment in the 900 MHz Band

Find Out More
View Variations
Data Sheet
CE Certification

Other Files

FSP 900/...-SMA

Quickly identify the correct ordering code.

FSP 900/…-SMA
Electrical
Model FSP 900/…-SMA
Frequency 900 MHz band (820 – 960 MHz)
Antenna Type End-fed ½ λ antenna for portable equipment
Max. Input Power 25 W
Polarisation Vertical
Impedance 50 Ω
Gain 0 dBd / 2.15 dBi
(3 dB compared to a ¼ λ portable antenna)
VSWR < 1.3:1 @ f. res.
Bandwidth ≥ 70 MHz @ VSWR ≤ 2.0
Mechanical
Connection(s) SMA(m)
Materials Polyethylene covered flexible steel wire
Weather- and shockproof plastics
Black-chromed brass
Colour Black
Historic Brand Procom
Height Approx. 170 mm / 6.69 in. (dep. on type)
Weight Approx. 0.025 kg / 0.06 lb.
  • Highly flexible polyethylene covered StraightFlex steel wire (self-straightening).
  • Full size, end-fed ½ λ antenna whip – groundplane independent.
  • 3 dB gain (typ.) compared to a ¼ λ antenna whip on the same equipment.
  • High gain and efficient decoupling from the portable equipment due to half-wave design.
  • 2.15 dBi gain half-wave dipole antenna.
  • Highest quality materials in a slender and elegant design.
  • Delivered factory tuned to customer specified frequency or cellular system.
  • Provided with SMA(m) connector.

TYPICAL SWR CURVE

Model Product No. Frequency Add To Quote

FSP 900/855-SMA(m)

 140000273 820 – 890 MHz

FSP 900/870-SMA(m)

 140000274 835 – 905 MHz

FSP 900/925-SMA(m)

 140000275 890 – 960 MHz

Login required

You need to be logged in into your account to view downloadable documents.

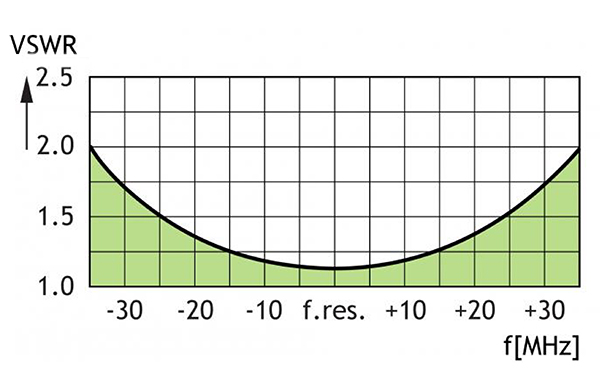

Typical VSWR curve

FSP 900 ... SMA VSWR
