GA 2/…-GP 300

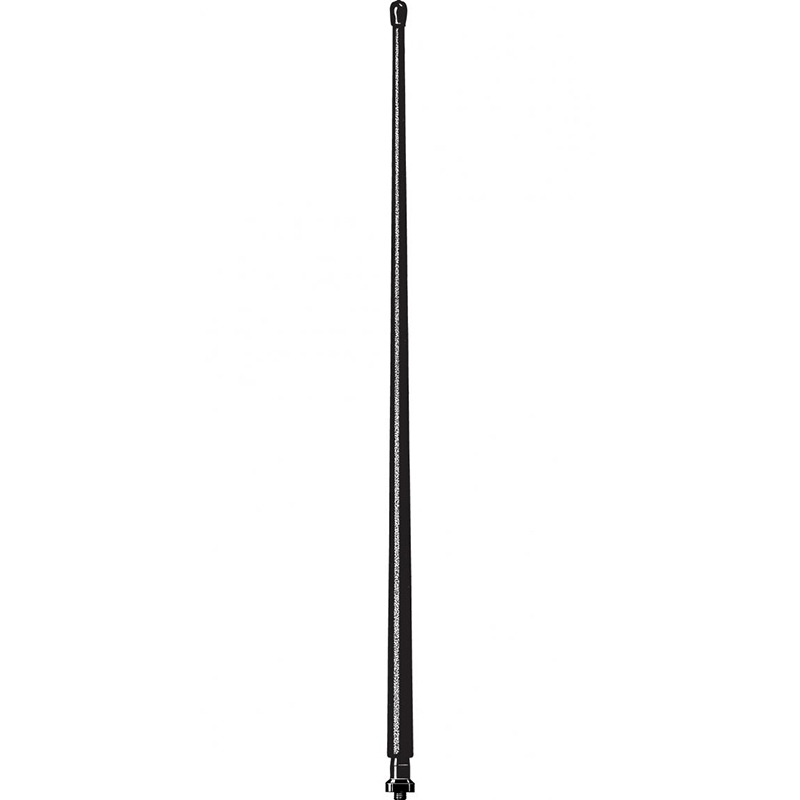

Rubber Antenna for Portable Equipment in the 2 m Band

Find Out More
View Variations
Data Sheet
CE Certification

Other Files

GA 2/...-GP 300

Quickly identify the correct ordering code.

GA 2/…-GP 300
Electrical
Model GA 2/…-GP 300
Frequency 2 m band covered by two models
Antenna Type ¼ λ antenna for portable equipment
Max. Input Power 100 W
Polarisation Vertical
Impedance 50 Ω
Gain 0 dB (compared to a ¼ λ portable antenna)
VSWR < 2.0:1 when mounted directly on portable equipment
Bandwidth ≥ 20 MHz @ VSWR ≤ 2.5
Mechanical
Connection(s) 1/4″-32 UNEF
Materials Steelwire moulded in thermoplastic rubber
Weather- and shockproof plastics
Black-chromed brass
Cu-nite brass
Colour Black
Historic Brand Amphenol Procom
Height Approx. 450 mm / 17.72 in.
Weight Approx. 0.06 kg / 0.13 lb.
  • Sturdy, conical, flexible rubber antenna.
  • Full size ¼ λ whip.
  • Highest quality materials – designed for “wear and tear”.
  • Delivered factory tuned and tested to ensure minimum VSWR and optimum performance.
  • Especially designed for Motorola GP 300, GP 344, GP 360 and
    GP 388 (150 MHz band) etc.

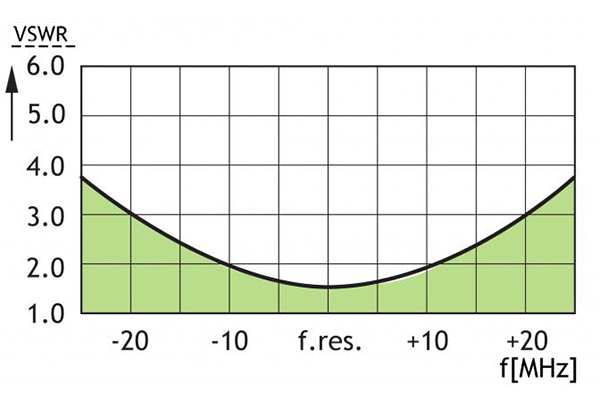

Typical VSWR curve

Model Product No. Frequency Add To Quote

GA 2/l-GP 300

 140000119 144 – 164 MHz

GA 2/h-GP 300

 140000114 155 – 175 MHz
