GA 27 1/4-FME

Rubber Antenna with Universal FME-connection System for Portable Equipment in the 27 MHz Band

Find Out More
Data Sheet
CE Certification

Other Files

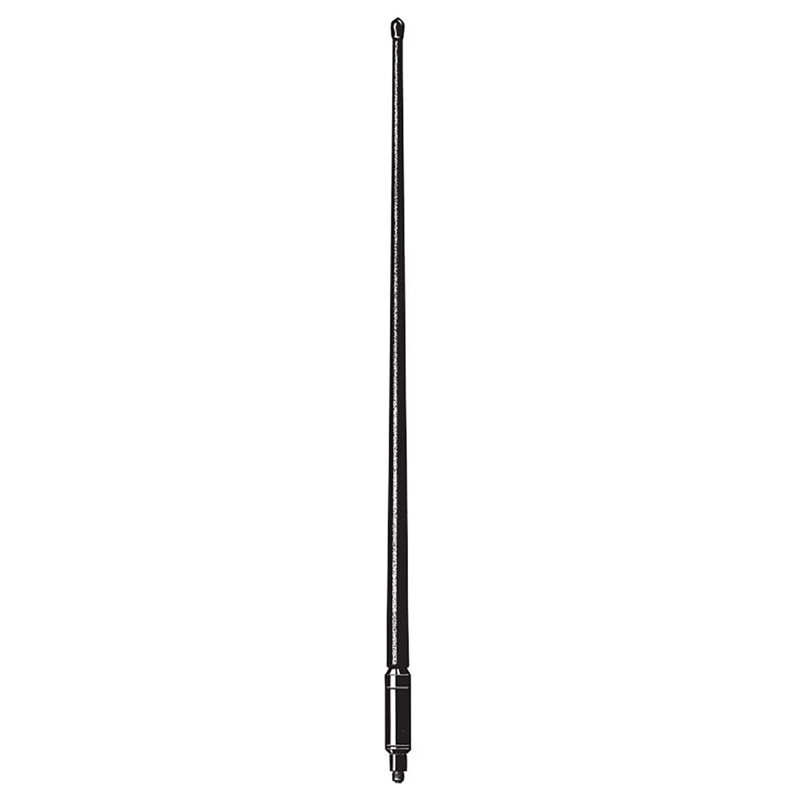

GA 27 1/4-FME
Electrical
Model GA 27 1/4-FME
Frequency 27 MHz CB band
Antenna Type Shortened ¼ λ antenna for portable equipment
Max. Input Power 25 W
Polarisation Vertical
Impedance 50 Ω
VSWR < 2.0:1 when mounted directly on portable equipment
Bandwidth 0 MHz
Mechanical
Connection(s) FME(f) (Exchangeable BFME-connectors to be ordered separately)
Materials Steelwire moulded in thermoplastic rubber
Black-chromed brass
Colour Black
Historic Brand Amphenol Procom
Height Approx. 500 mm / 19.69 in.
Weight Approx. 0.085 kg / 0.19 lb.
  • Sturdy, conical, flexible rubber antenna.
  • Shortened ¼ λ whip yields an acceptable mechanical length.
  • Highest quality materials – designed for “wear and tear”.
  • Delivered factory tuned and tested to ensure minimum VSWR and optimum performance.
  • Provided with universal FME-connection system for optimum flexibility and easily exchangeable connectors.
  • Designed for use with the following of Procoms line of black FME-connectors (to be ordered separately): BFME-UHF, BFME-BNC, BFME-TNC and BFME-N.

No content found

This product doesn’t have any diagrams yet.

Model Product No. Add To Quote
Rubber Antenna with Universal FME-connection System for Portable Equipment in the 27 MHz Band 140000042

Login required

You need to be logged in into your account to view downloadable documents.

Recommended BFME-Connectors

BFME uhf bnc tnc n

(To be ordered separately)

Please Note

The GA 27 1/4 is also available with different thread studs, but in this case with fixed, non-exchangeable connector (not FME-connection system). Information on these special versions on request.
